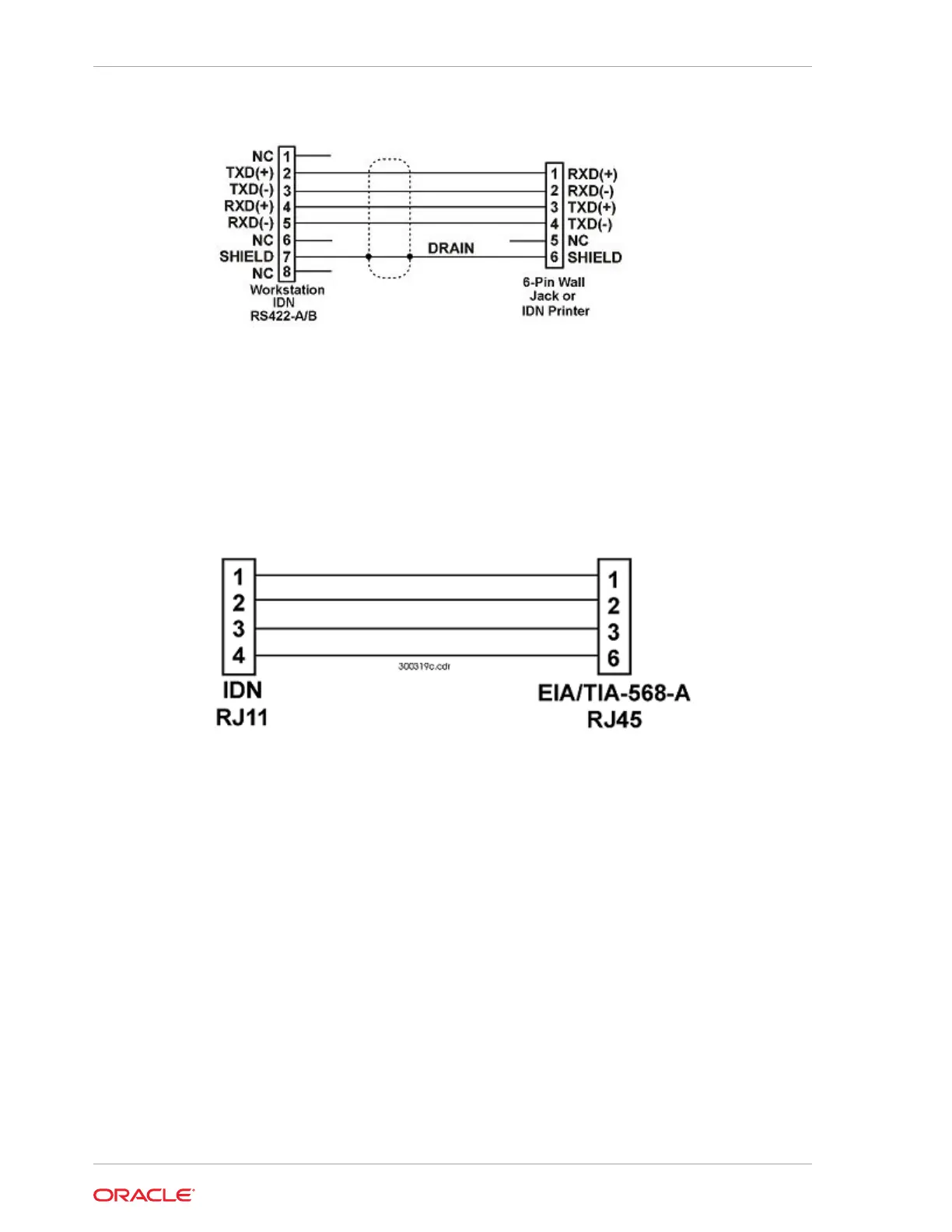

Figure 31-6 Workstation to Printer IDN Hook-up Cable Diagram
IDN to EIA/TIA-568-A Patch Cable
The figure below shows a diagram of the patch cable used to build an IDN network
using STP Category 5 or better cabling. The Cable Requirements section contains
more information.
Figure 31-7 IDN to EIA/TIA-568-A Conversion Cable Diagram
Chapter 31
IDN to EIA/TIA-568-A Patch Cable
31-4
