Oracle MICROS Workstation 5A User Manual

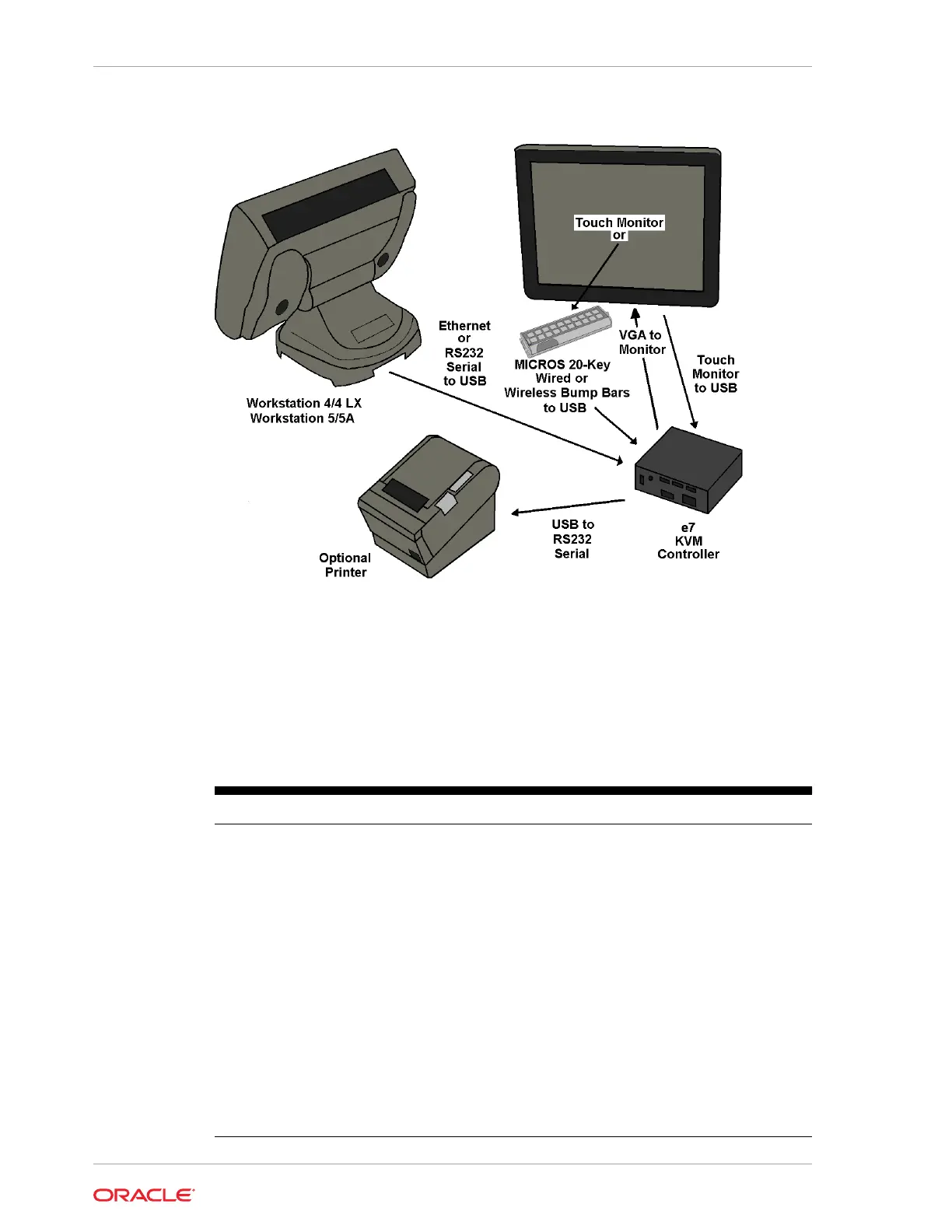

Figure 20-1 e7 Kitchen Video Monitor System
• e7 KVM Controller Features and Requirements
• e7 Kitchen Video Monitor (KVM) Installation
e7 KVM Controller Features and Requirements
Table 20-1 e7 KVM Controller Features
Feature Specifications
Case Material Aluminum
Weight 3.5 lbs. (1.5 kg)
Physical Dimensions 84mm D, 95mm W, 38mm H (3.30” x 3.70” x
1.50”)
Mounting Shelf
Video Output VGA
COM Ports None
USB Ports 4 Type A, 1 Micro-B
LAN Interface 10/100/1000 Mbps Ethernet - Modular RJ45
External AC Adapter Input Voltage 100 - 240VAC, 50/60Hz, 0.5A
DC Input Voltage 5VDC, 2.5A
Operating Temperature 0°C (32°F) to 50°C (122°F)
Storage Temperature -20°C (-4°F) to 70°C (158°F)
Chapter 20
e7 KVM Controller Features and Requirements
20-2
