Series 1 Pole Customer Display Dimensions

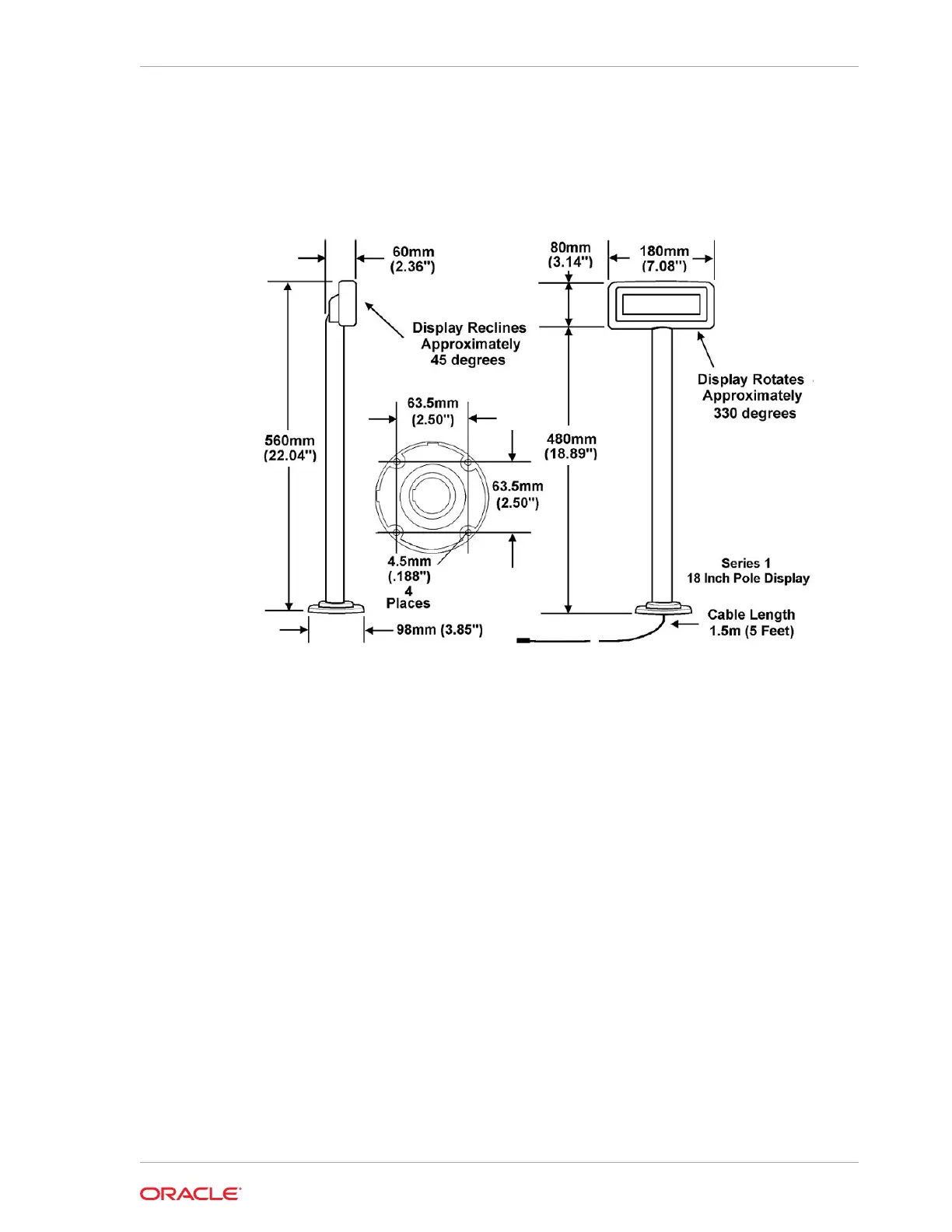

Figure 29-53 Series 1 Pole Customer Display Dimensions

Chapter 29

Series 1 Pole Customer Display Dimensions

29-49
