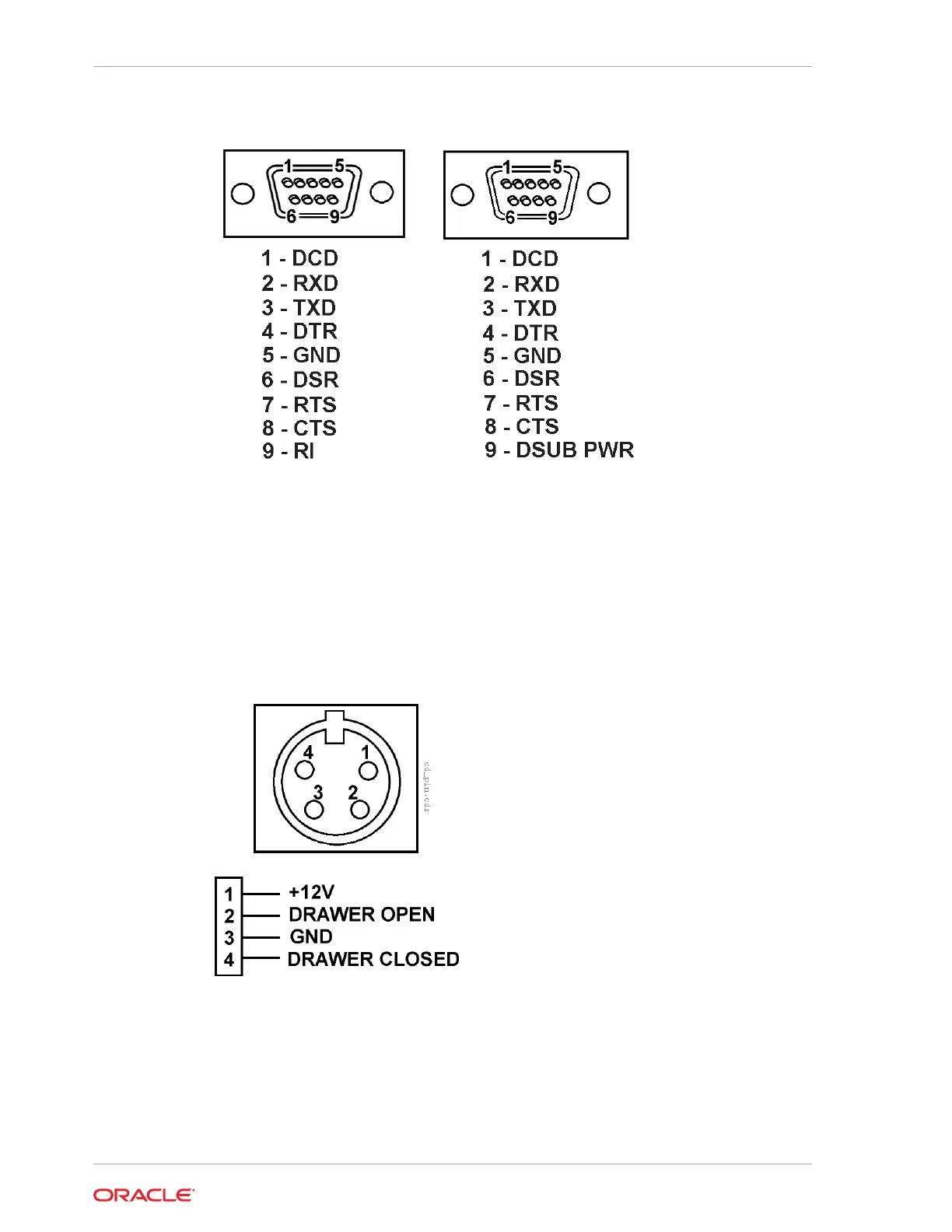

Figure 30-4 RS232 DB9 Connector
Cash Drawer 1 and 2 Connectors
All MICROS Workstations contain a pair of the connectors shown in the figure below.
Figure 30-5 MICROS 4-Pin DIN Cash Drawer Connectors
The Series 2 Cash Drawer connector is an 8-pin Mini-IDN. This pair of Cash Drawer
connectors is used by the Workstation 6 and the Base Station.
Chapter 30
Cash Drawer 1 and 2 Connectors
30-4
