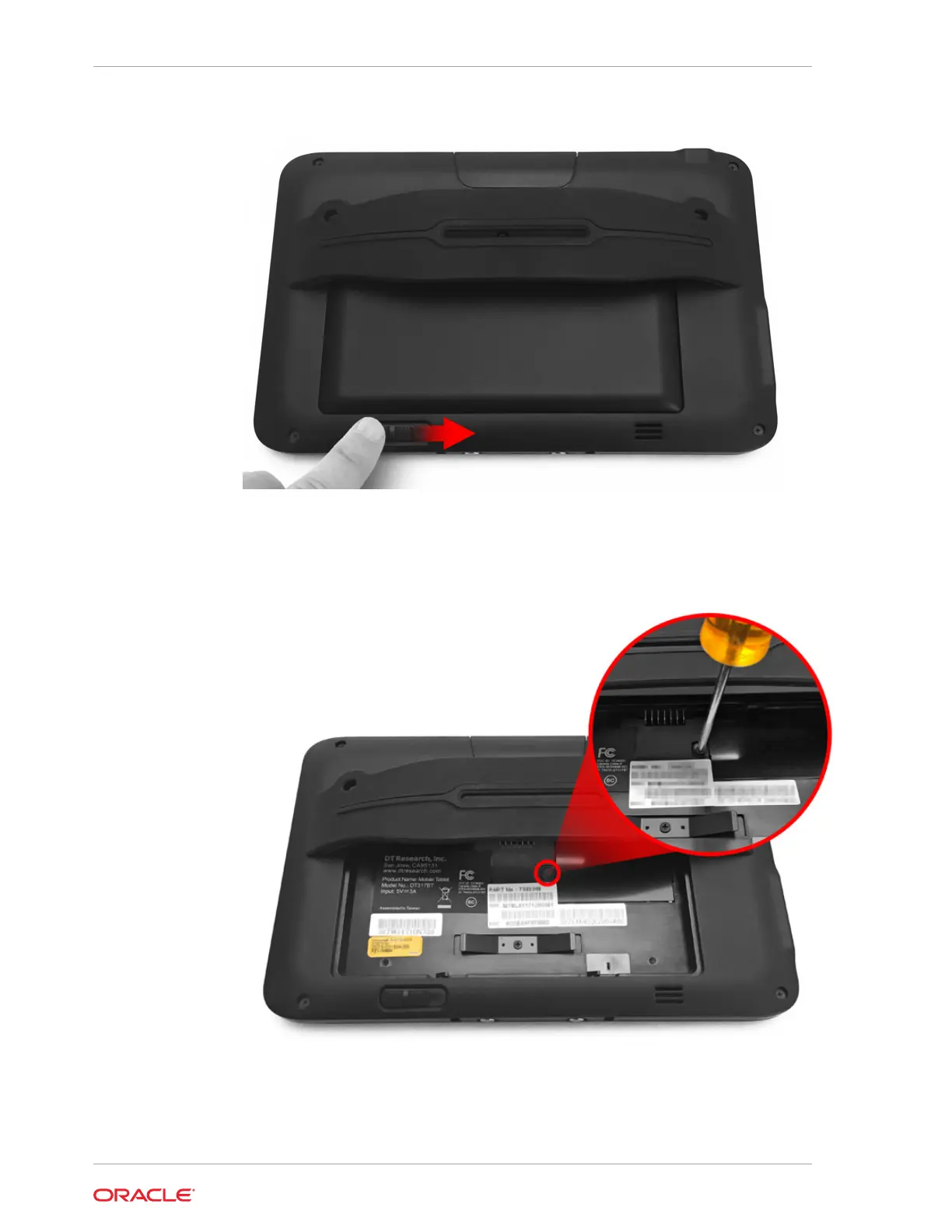

Figure 3-5 Removing the MICROS Tablet 720 Main Battery
3. Remove the bridge battery cover using a #1 Phillips screwdriver. For some tablets,
you may need to peel back the license decal first.
Figure 3-6 Removing the Bridge Battery Cover
4. Carefully remove the battery from the compartment until you can access the
connector cable. Use your fingers or a gripping tool to carefully separate the
connector. Make sure you hold and pull the plastic connectors and not the wires.
After disconnecting the battery, set it aside.
Chapter 3
Replacing the Bridge Battery in the MICROS Tablet 720
3-10
