Rise uses Orbea exclusive components for the connec-
tion of the Orbea RS internal battery to the Shimano EP8
motor. The battery charger and the charging por are also
Orbea exclusive.

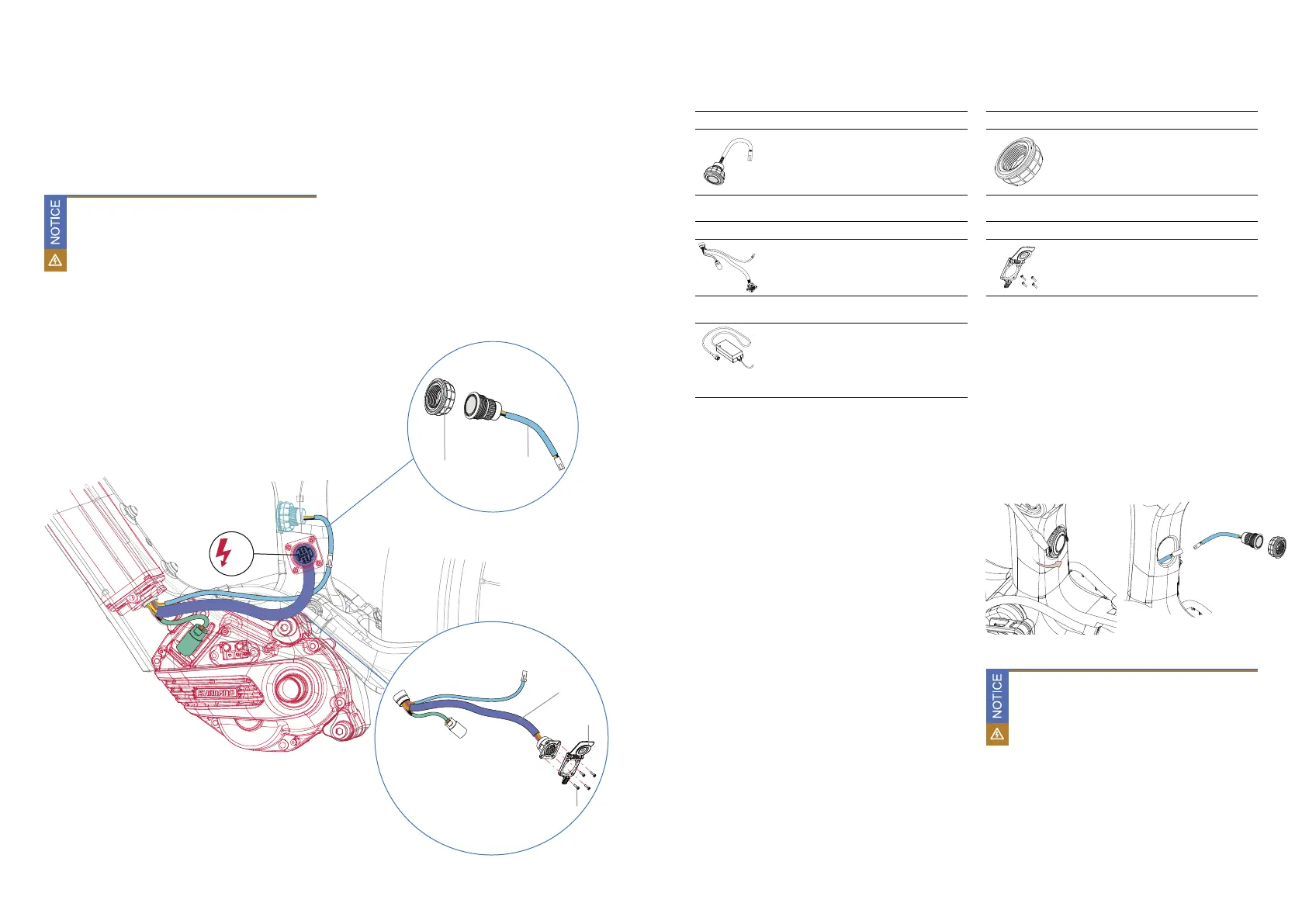

ORBEA RS COMPONENTS CABLE
ROUTING AND CONNECTION
The installation and replacement of the electric
system components requires an advanced techni-
cal knowledge and may therefore be beyond the
skills of most users.
Always take your bicycle to an authorized dealer
for the diagnosis, repair and installation of the
electric system components.
Damage to the components derived from inco-
rrect installation may void the warranty on such
components.
1
ON/OFF
26.2 / 27 26.1
28
29.1
29.2
30
26
POWER BUTTON RISE
ART Nº: X2360000 QTY.
26.1 POWER BUTTON+CABLE 1
26.2
CLIP BRACKET POWER BUTTON SEAT
TUBE
1
28
CHARGING POINT+HARNESS CABLE RS
ART Nº: X2380000 QTY.
The RS harness cable includes the chargin
point,the motor connection cable and the
battery. Connection cable in one unit.
1
30
CARGADOR BATERÍA RS 36V 2A
X2320000 RS BATTERY CHARGER 36V 2A (EU)
X2320100
RS BATTERY CHARGER 36V 2A (USA)
X2320200
RS BATTERY CHARGER 36V 2A (UK)
X2320300
RS BATTERY CHARGER 36V 2A (AUS)
Each article code includes the RS charger and the
URGEKƂEOCKPUECDNG
27
CLIP BRACKET POWER BUTTON RISE
ART Nº: X2370000 QTY.
CLIP BRACKET POWER BUTTON RISE 1
29
CHARGING POINT COVER RISE
ART Nº: X2390000 QTY.
29.1 CHARGING POINT COVER RISE 1
29.2 BOLT M2x8 4
COMPONENTS REPLACEMENT
POWER BUTTON REPLACEMENT
It is possible to replace the seat tube power button without
TGOQXKPIVJG'245OQVQT7UGCVJKPƃCVUETGYFTKXGTVQ
carefully pull the clip bracket without damaging the paint.
Carefully pull from the cable and disconnect the power
button cable from the harness cable. Install a new
RQYGTDWVVQOCPFƂTON[RTGUUVJGENKRDTCEMGVKPVQVJG
seat tube.
HARNESS CABLE REPLACEMENT
To replace the harness cable, which includes the charging
point, the motor connection cable and the battery connec-
tion cable, it is necessary to remove the EP8 motor from
the bicycle.
After removing the motor, disconnect the battery cable,
the motor cable and the cable to the power button. Remove
the harness cable through the hole for the charging point.
Introduce a new harness cable through the hole for the
charging point. The motor, battery and power button ends
QH VJG ECDNG OWUV DG IWKFGF ƂTUV VJTQWIJ VJG EJCTIKPI
point hole.
The installation and replacement of the electric
system components requires an advanced tech-
nical knowledge and may therefore be beyong the
skills of most users.
Always take your bicycle to an authorized dealer
for the diagnosis, repair and installation of the
electric system components.
Damage to the components derived from inco-
rrect installation may void the warranty on such
components.
