Orbea RISE M-LTD 2021 - Page 32

TECHNICAL MANUAL BLUE PAPER RISE · 202162 | ORBEA ORBEA | 63
EN

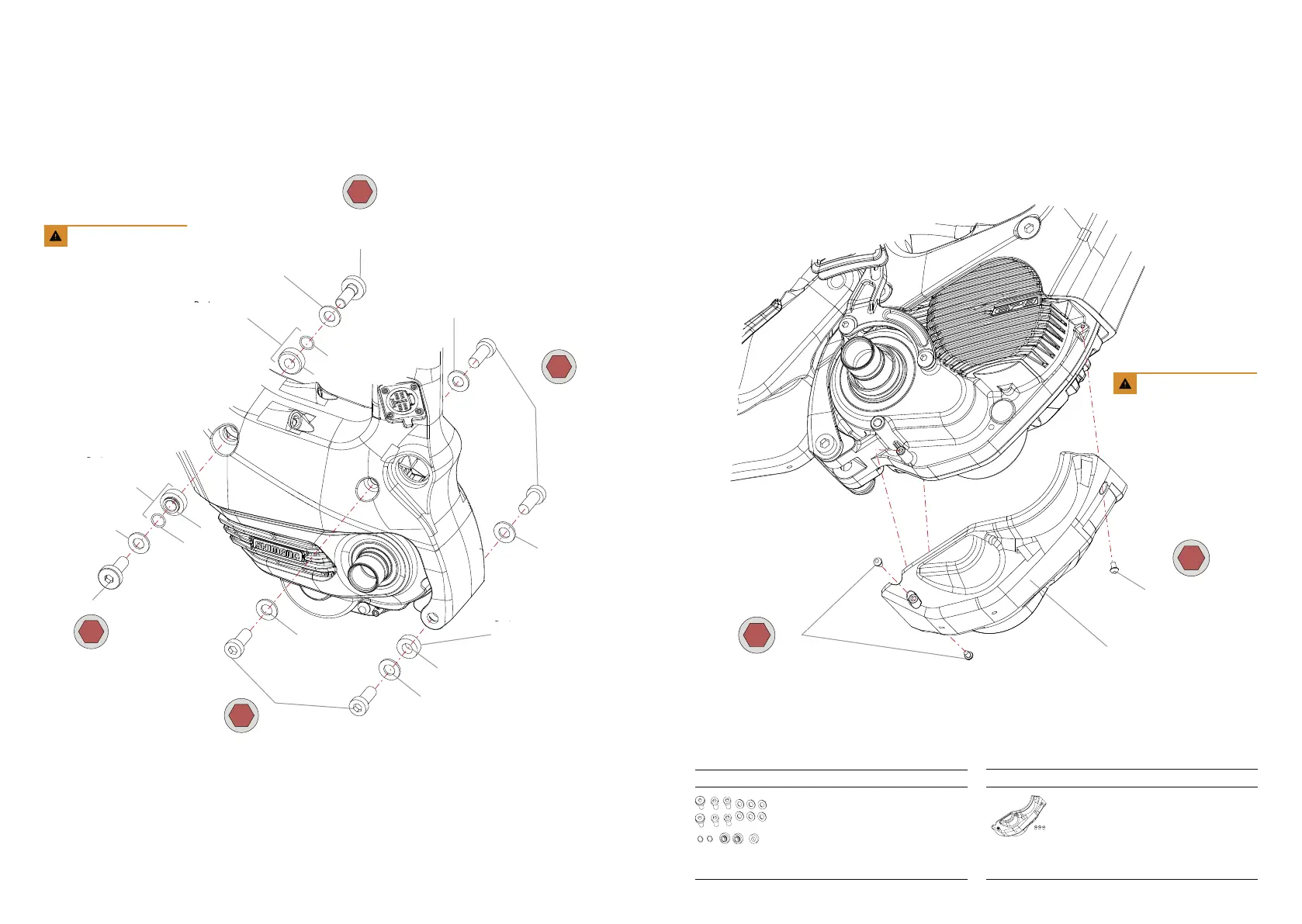

EP8 RS MOTOR INSTALLATION
6
12 N.m
6
12 N.m
6
12 N.m
6
12 N.m
Dentro.
Entre motor
y cuadro
31.1
31.1
31.2
31.2
31.3
31.3
31.4
31.4
31.5
31.6
31.6
31.6
31.6
31.6
31.6
Dentro.
Entre motor
y cuadro
Dentro.
Entre motor
y cuadro
Always follow the recommended
torque settings.
0.6 N.m
0.6 N.m
2
2
32.1
32.2
32.2
31
EP8 RS MOTOR FIXING KIT RISE
ART Nº: X2310000 QTY.
31.1 MOTOR FIXING BOLT M8x22 12Nm 2
31.2 MOTOR FIXING BOLT M8 1.25 THREAD
12Nm
4
31.3 FRONT MOTOR SPACER
2
31.4 O-RING 10x1 2
31.5
REAR MOTOR SPACER 1
31.6
WASHER 13mm 6
32
EP8 MOTOR PROTECTOR
ART Nº: X2300000 QTY.
32.1 EP8 MOTOR PROTECTOR 1
32.2 PROTECTOR FIXING BOLT 3
Inside.
Between frame
and motor
Inside.
Between frame
and motor
Inside.
Between frame
and motor
Always follow the recommended
torque settings.
