IG-273-EN version 03; 05/08/2020
29
General instructions
cpg.0 ENA range
Operations sequence

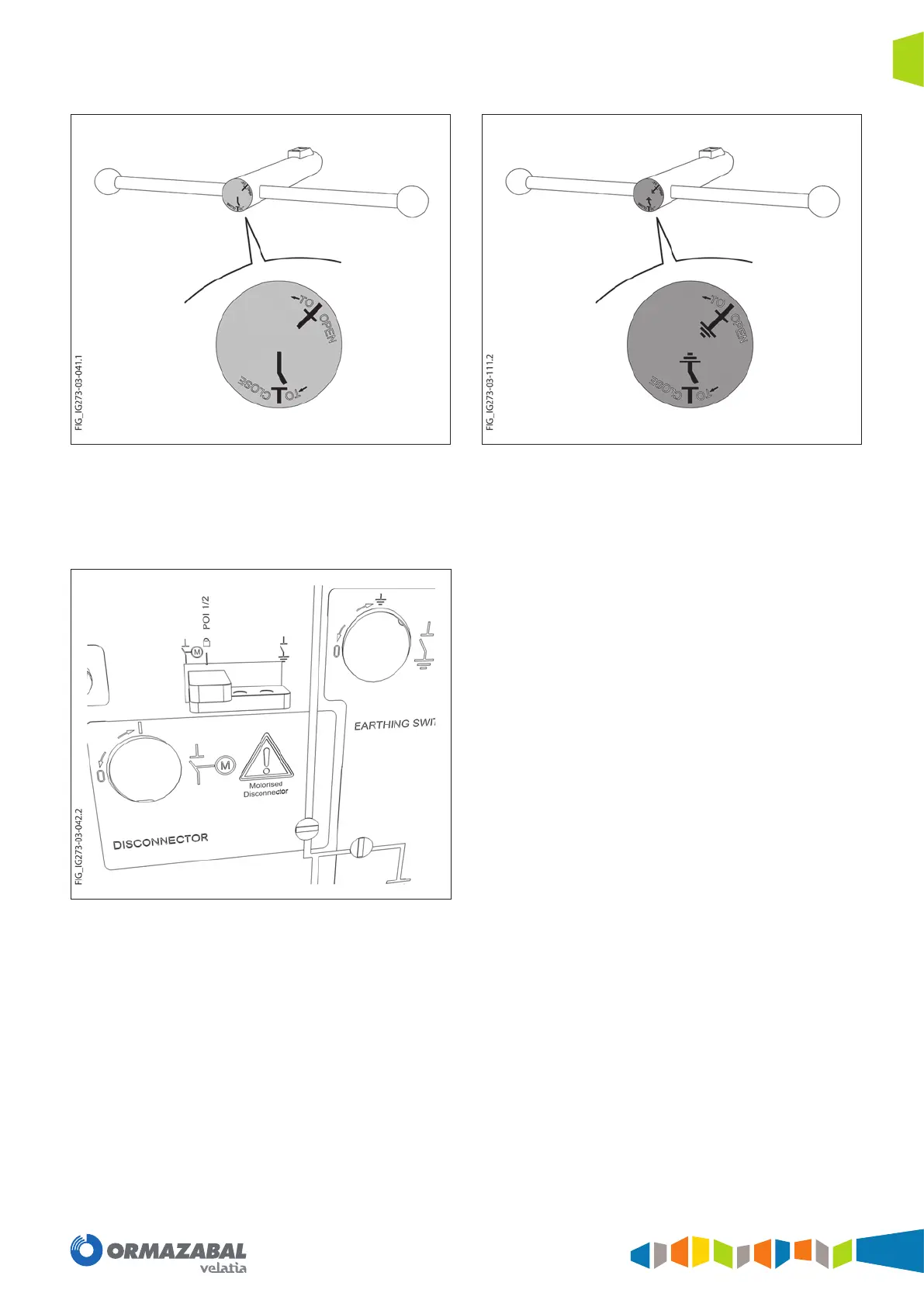

Figure 7.3. Details of the manual driving lever of the disconnector Figure 7.4. Details of the manual driving lever of the earthing switch
To carry out any operation on the disconnector shaft, position the
interlock in the disconnector position.
Figure 7.5. Disconnector position of the interlock
