Operations sequence General instructions
cpg.0 ENA range
Connection
Initial situation: Disconnector, earthing switch and
circuit breaker open.
Move the SHUTTERS down to OPEN to insert the manual
driving shaft lever with the disconnector open symbol
aligned with the “I” in the Disconnector operation area
(grey). Then turn it CLOCKWISE.

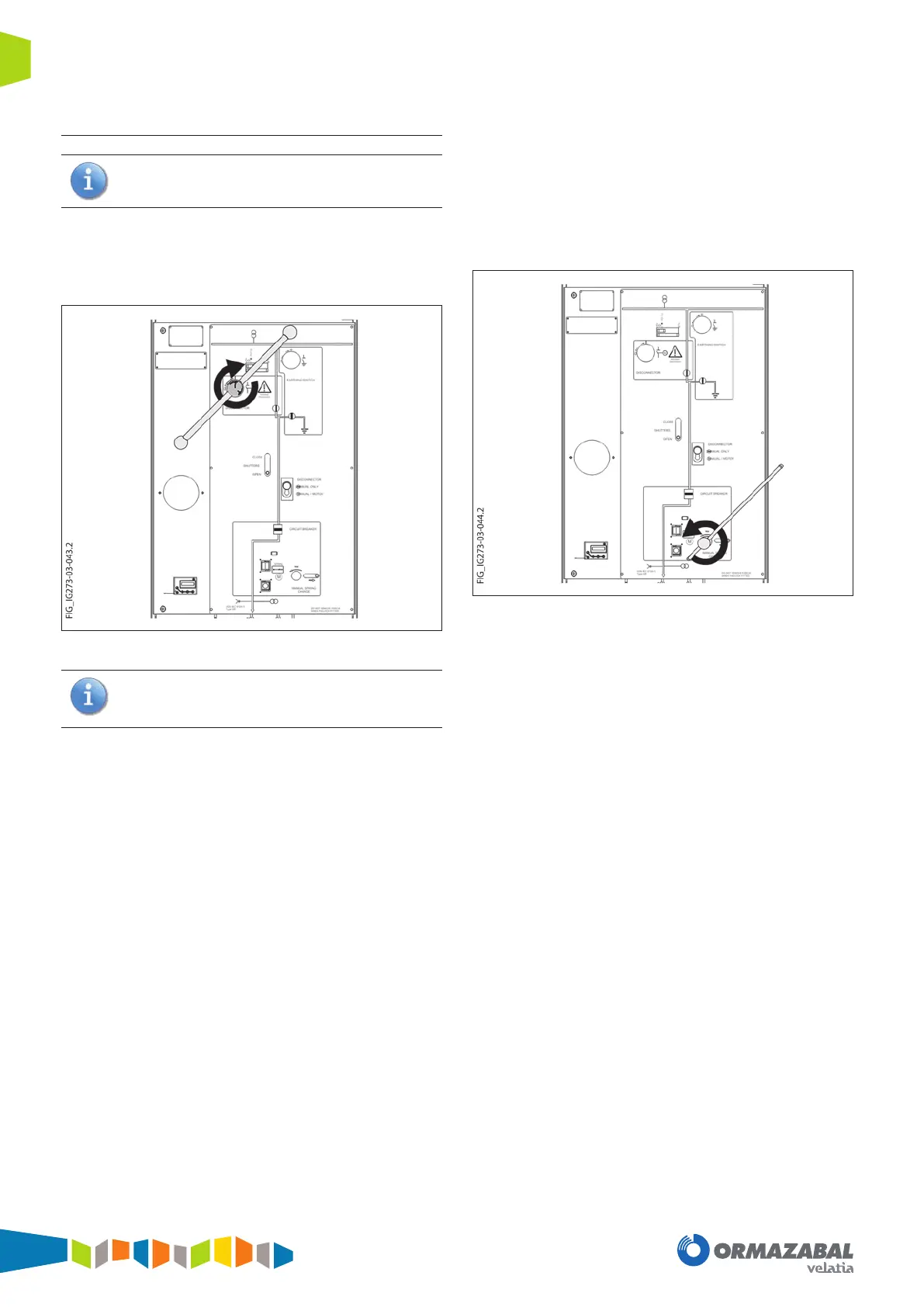

Figure 7.6. Disconnector closed
When removing the driving lever simultaneously pull
the SHUTTERS lever down to release the pressure on
the driving lever.
If the spring charge status indicator shows “SPRING
DISCHARGED”, slide the access interlock cover to the right
and introduce the spring charging lever.
Turn ANTICLOCKWISE approximately one and a half turns to
charge the springs. (Clicks when charged).
Figure 7.7. Turn lever anti-clockwise
