IG-273-EN version 03; 05/08/2020
31
General instructions
cpg.0 ENA range
Operations sequence
The spring charge status indicator shows “SPRING
CHARGED”.

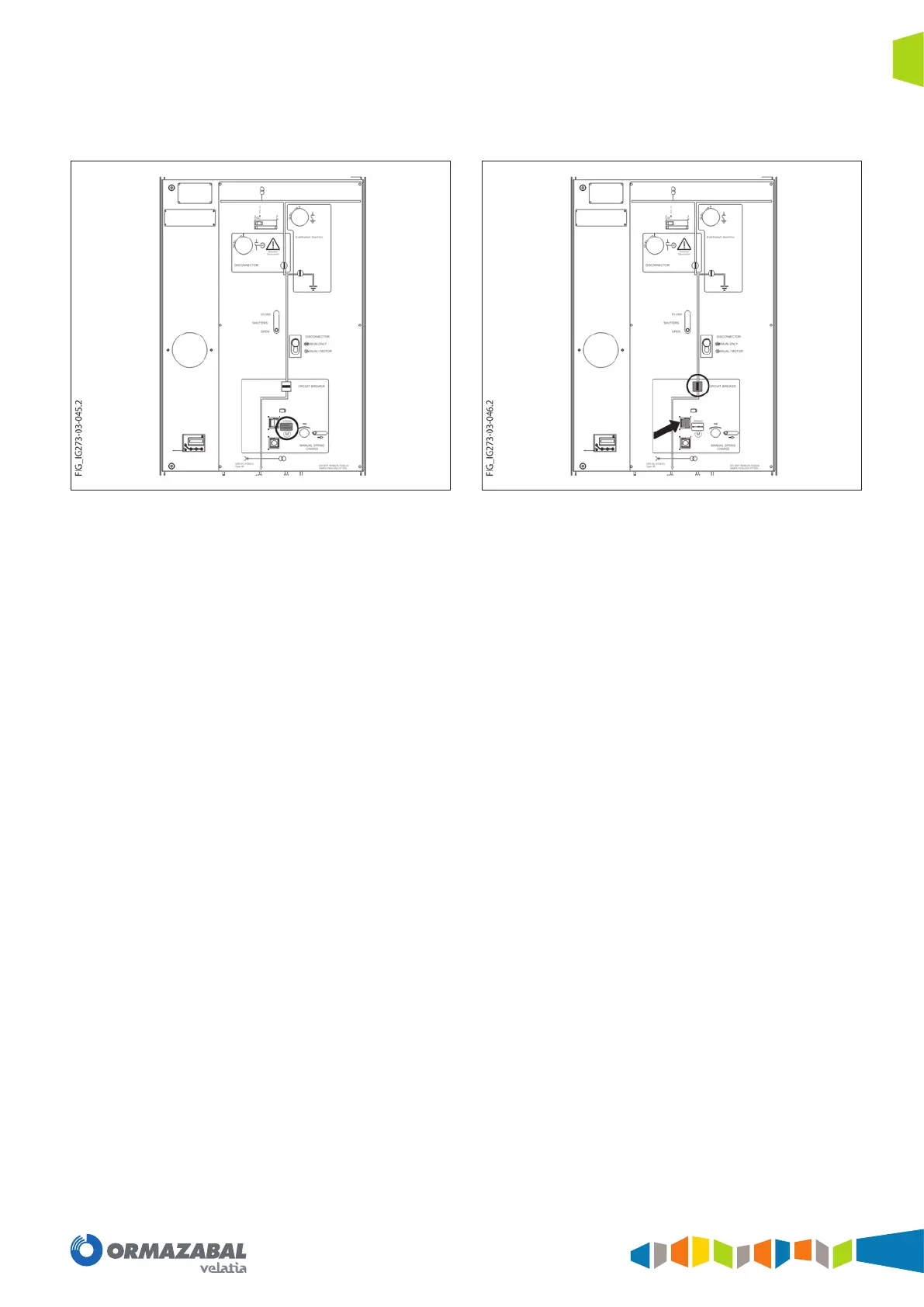

Figure 7.8. “Spring charged” status
Press the “I” pushbutton to close the circuit-breaker. The
circuit-breaker status indicator shows CLOSED.
Figure 7.9. Closed in service sequence detail.
