Operations sequence General instructions
cpg.0 ENA range
Disconnection

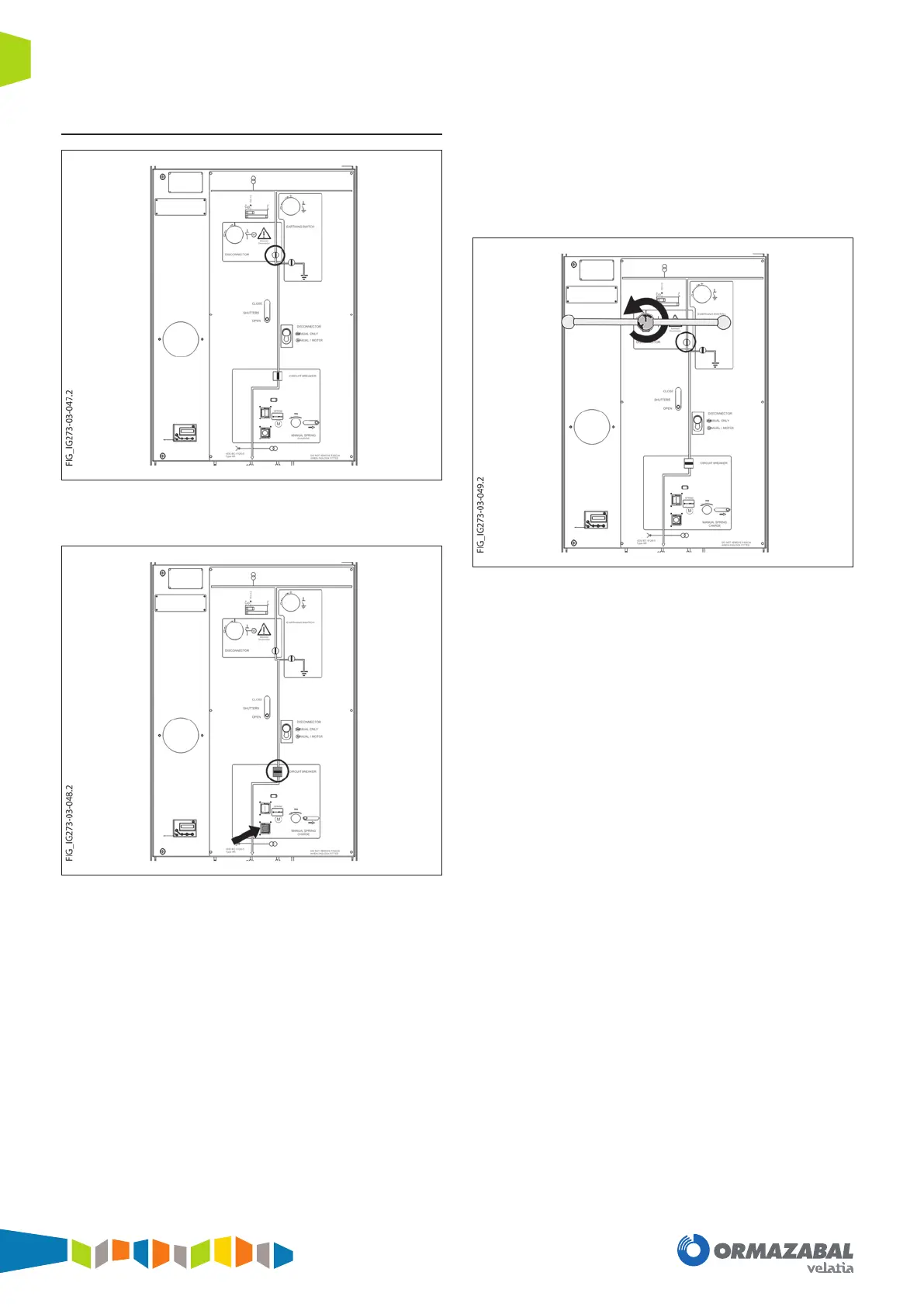

Figure 7.10. cpg.0-v /-l disconnector initial situation
Press the circuit breaker "0" pushbutton.
Figure 7.11. Circuit breaker open sequence detail
Move the SHUTTERS down to OPEN to insert the manual
driving shaft lever with the disconnector closed symbol
aligned with the “I” in the Disconnector operation area
(grey). Then turn it ANTI-CLOCKWISE.
Figure 7.12. Disconnector open
