General instructions
cpg.0 ENA range
Operations sequence
Unearthing
1. Open the circuit-breaker by operating on the “0”
pushbutton.

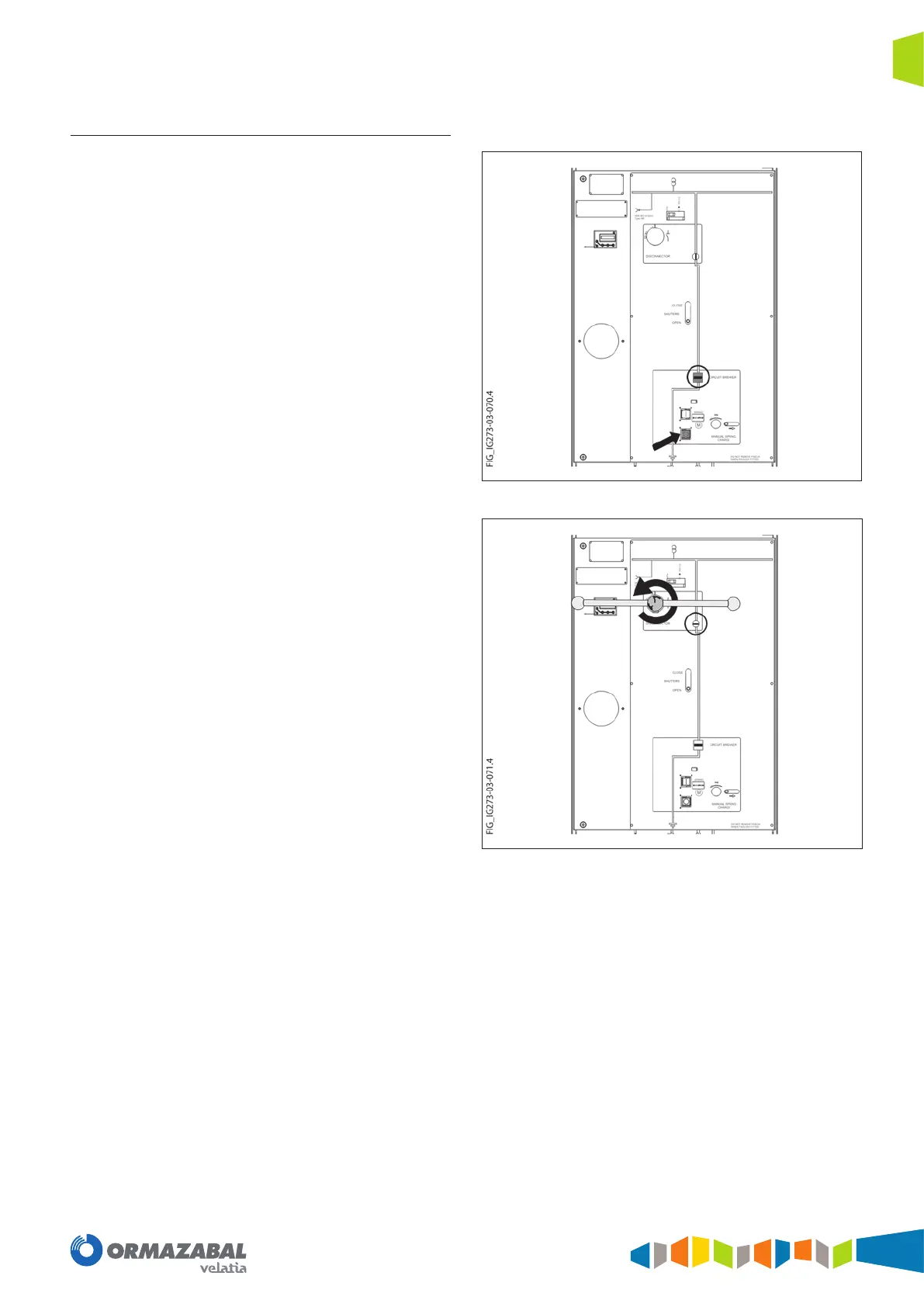

Figure 7.38. Circuit-breaker open
2. Move the SHUTTERS down to insert the manual driving
shaft lever with the disconnector closed symbol
aligned with the “I” in the Disconnector operation area
(grey). Then turn ANTI-CLOCKWISE. Check that the
disconnector status indicator on the left shows open.
Figure 7.39. Disconnector open
