Operations sequence General instructions
cpg.0 ENA range
Earthing

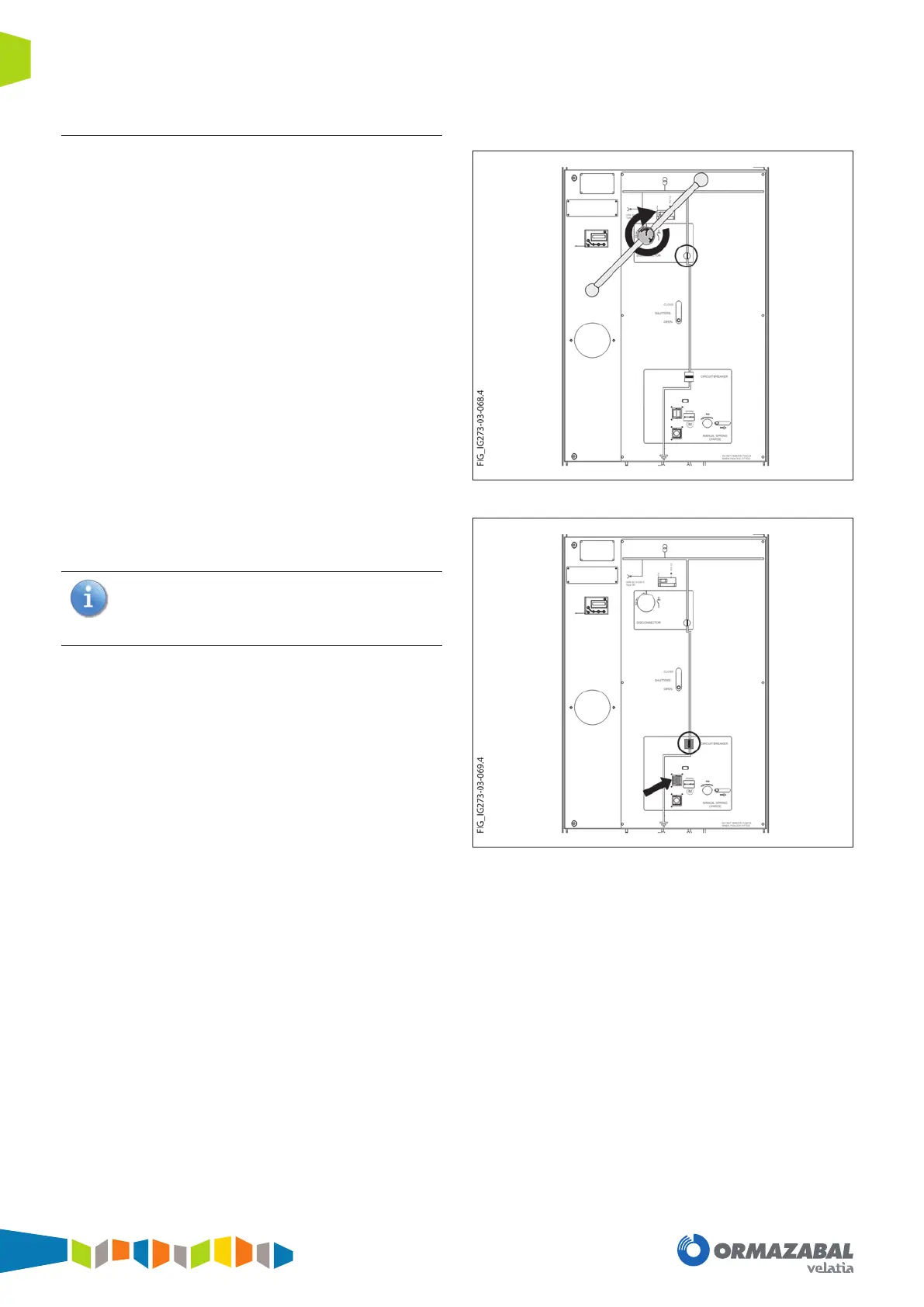

1. Move the SHUTTERS down to insert the manual driving
shaft lever with the disconnector open symbol aligned
with the “I” in the Disconnector operation area (grey).
Then turn CLOCKWISE. Check that the disconnector
status indicator on the left shows closed.
Figure 7.36. Disconnector closed
2. Close the circuit-breaker by operating the “I”
pushbutton.
Whenever the springs are discharged, charge as
explained in the section "7.1.1. Circuit breaker
and switch-disconnector (cpg.0-v and cpg.0-l)" →
"Connection".
Figure 7.37. “I” pushbutton detail
