IG-273-EN version 03; 05/08/2020
62
Safety elements General instructions
cpg.0 ENA range

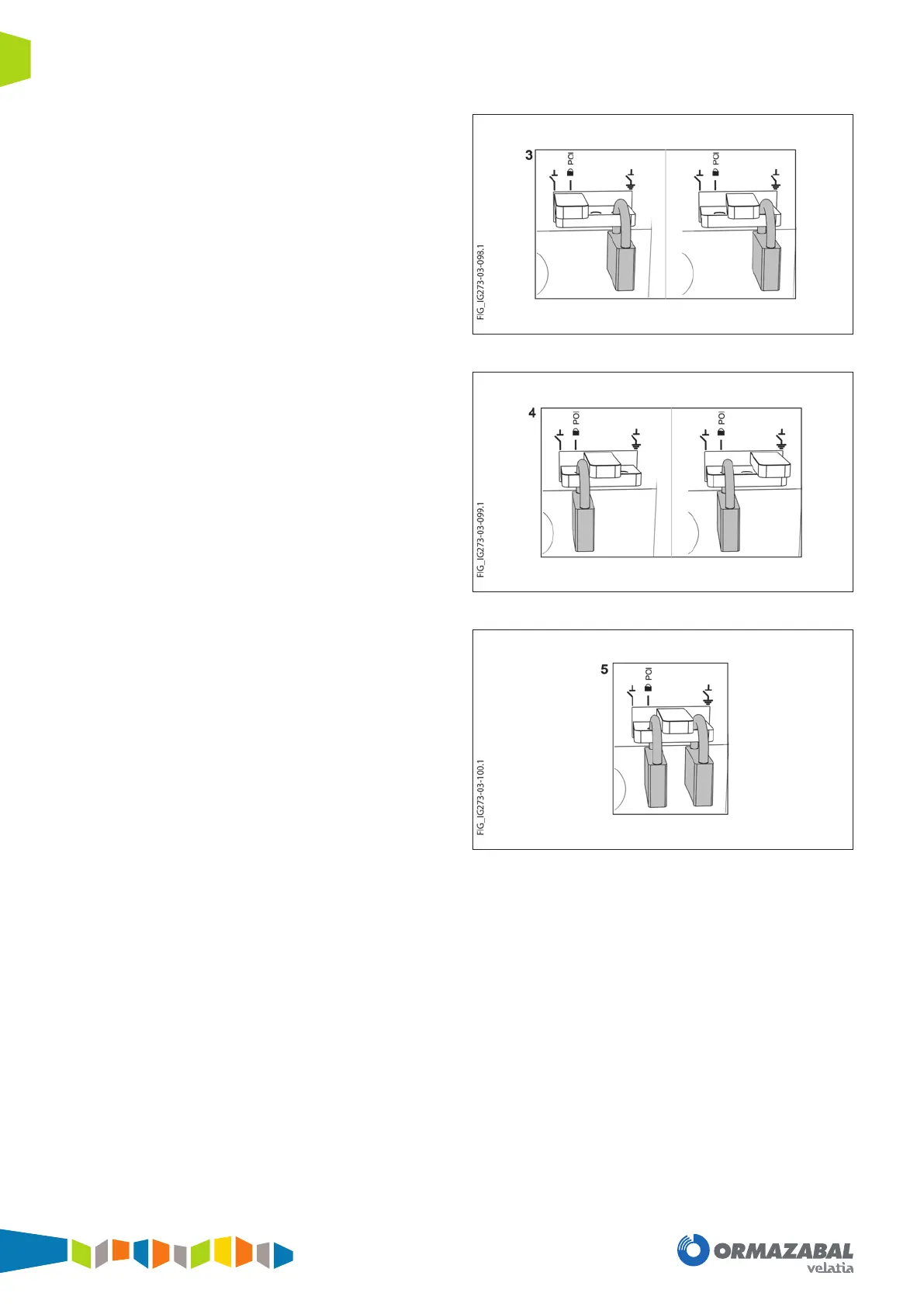

3. With the padlock on the right. This prevents the earthing
switch from being selected but allows the disconnector
to be selected.
Figure 8.3. Padlock on the right
4. With the padlock on the left. This prevents the
disconnector from being selected (POI) but allows the
earthing switch to be selected.
Figure 8.4. Padlock on the left
5. With padlocks in both ends. This prevents disconnector
and earthing switch from being selected.
Figure 8.5. Padlocks in both ends
