General instructions
cpg.0 ENA range
Safety elements
Busbar earthing switch cubicles: Padloking the interlock
device
1. With the padlock on the right of the interlock device.
This prevents padlocking the POI.

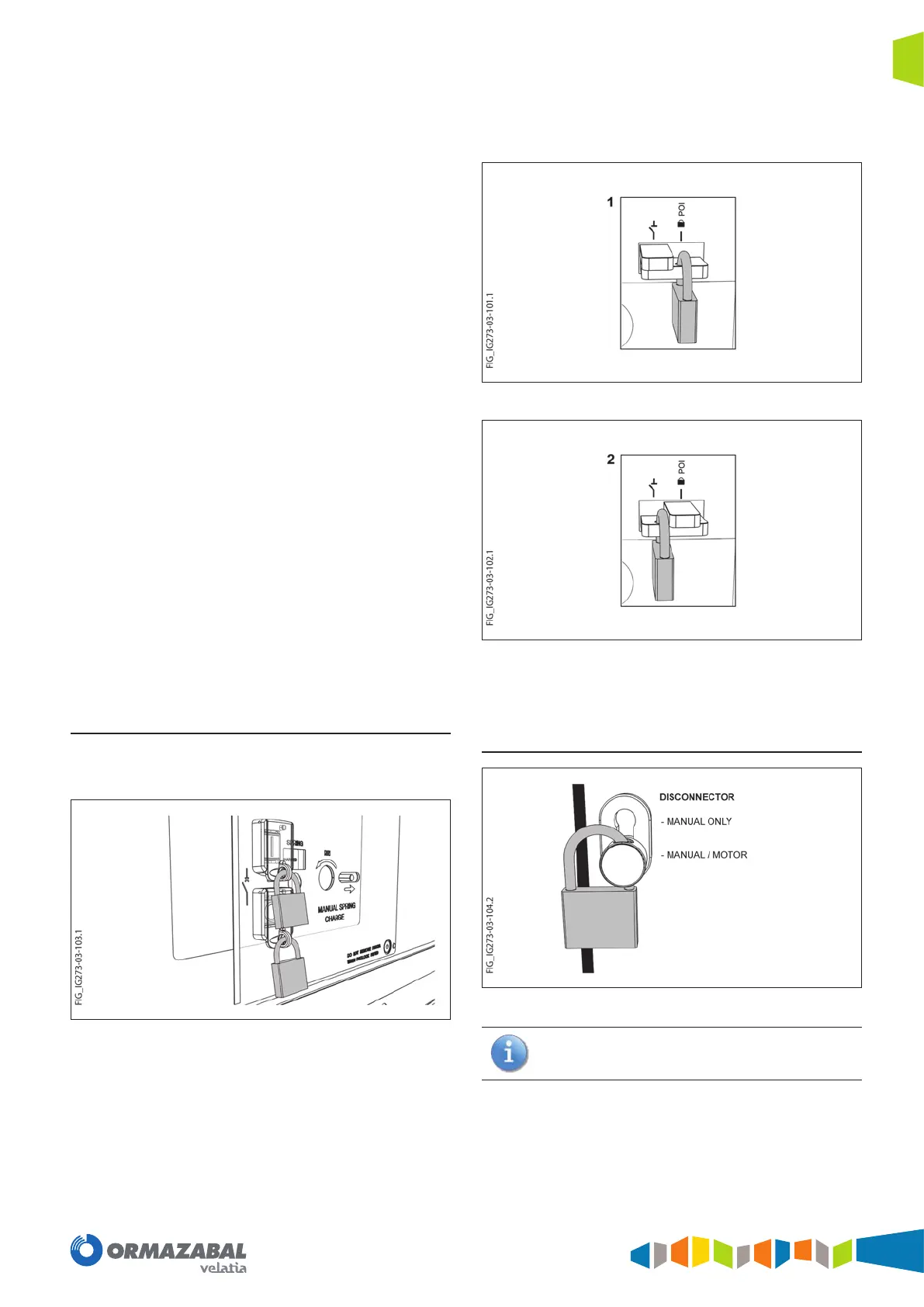

Figure 8.6. Padlock on the right of the interlock device
2. With the padlock on the left of the interlock device. This
prevents the earthing switch from being selected.
Figure 8.7. Padlock on the left of the interlock device
Circuit-breaker: Padlocking the pushbuttons
The circuit-breaker pushbuttons can be locked by means of
padlock:
Figure 8.8. Interlocking of the circuit-breaker pushbuttons
Manual/motor disconnector operation: padlocking the
selector
Figure 8.9. Padlocking of the manual or motorised driving switch
To move the motor selector, rotate the knob 90° and
move vertically.
