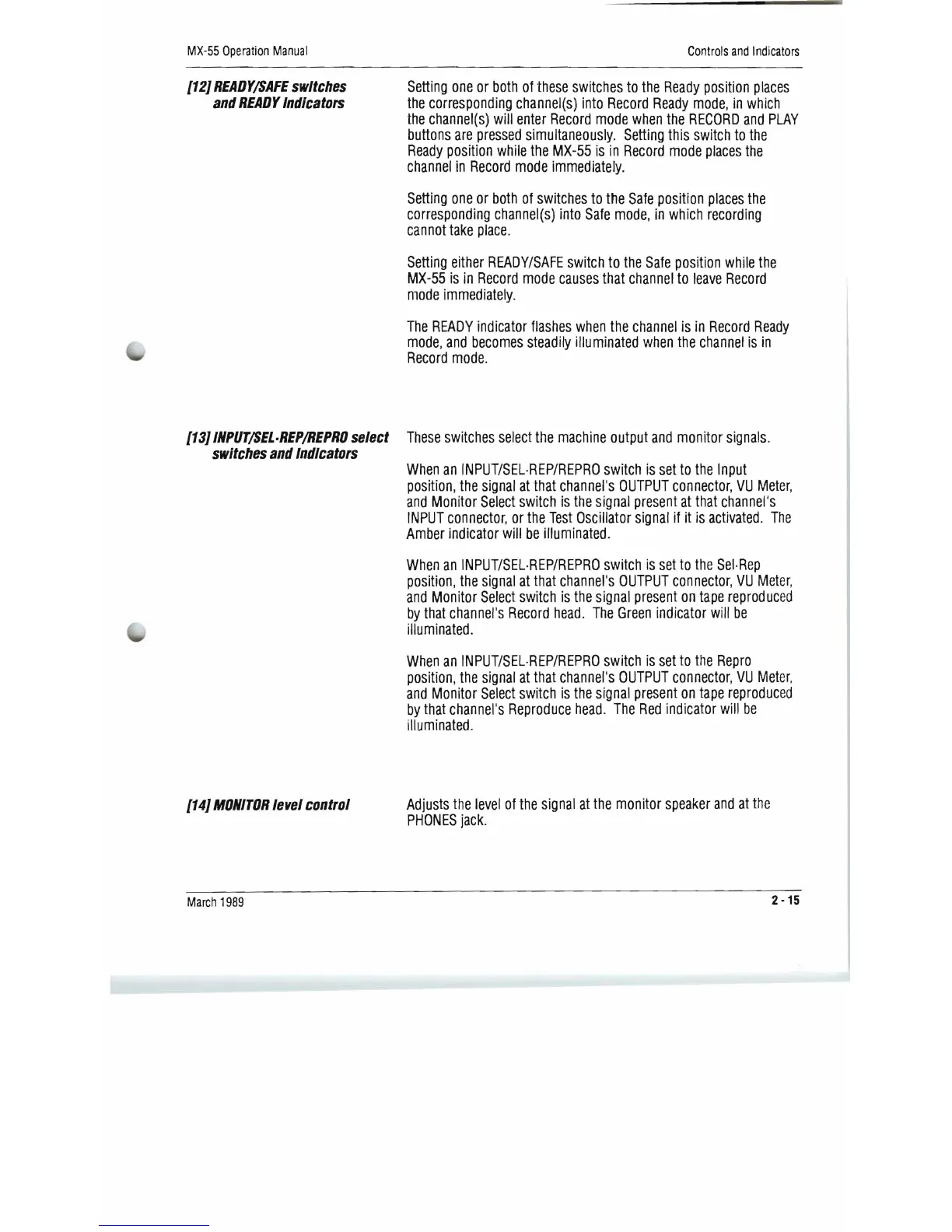

MX-55 Operation Manual
Controls and Indicators
[12} READY/SAFE switches
and READY Indicators
Setting one or both of these switches to the Ready position places
the corresponding channel(s) into Record Ready mode, in which
the channel(s) will enter Record mode when the RECORD and PLAY
buttons are pressed simultaneously. Setting this switch to the
Ready position while the MX-55 is in Record mode places the
channel in Record mode immediately.
Setting one or both of switches to the Safe position places the
corresponding channel(s) into Safe mode, in which recording
cannot take place.
Setting either READY/SAFE switch to the Safe position while the
MX-55 is in Record mode causes that channel to leave Record
mode immediately.
The READY indicator flashes when the channel is in Record Ready
mode, and becomes steadily illuminated when the channel is in
Record mode.
[13} INPUT/SEL·REP/REPRO select
switches and Indicators
[14} MONITOR level control
These switches select the machine output and monitor signals.
When an INPUT/SEL·REP/REPRO switch is set to the Input
position, the signal at that channel's OUTPUT connector, VU Meter,
and Monitor Select switch is the signal present at that channel's
INPUT connector, or the Test Oscillator signal if it is activated. The
Amber indicator will be illuminated.
When an INPUT/SEL·REP/REPRO switch is set to the Sel·Rep
position, the signal at that channel's OUTPUT connector, VU Meter,
and Monitor Select switch is the signal present on tape reproduced
by that channel's Record head. The Green indicator will be
illuminated.
When an INPUT/SEL·REP/REPRO switch is set to the Repro
position, the signal at that channel's OUTPUT connector, VU Meter,
and Monitor Select switch is the signal present on tape reproduced
by that channel's Reproduce head. The Red indicator will be
illuminated.
Adjusts the level of the signal at the monitor speaker and at the
PHONES jack.
March 1989
2 -15
