7.18 Connecting an Ethernet LAN or DSL router
Through a built-in Ethernet interface, the OTT netDL 1000 unit may be connected
to an Ethernet LAN (web access through a Local Area Network) or to a DSL router
(web access using a modem connected to a digital subscriber line (DSL)).
Connect the built-in Ethernet interface to an Ethernet LAN or DSL router using
an RJ-45 patch cable (1-to-1 pin assignment from CAT 3 on).
7.19 Connecting the USB device interface
For setting the OTT netDL operating parameters or for retrieving measured data
from an OTT netDL unit, you must establish a temporary communication link to a
PC. You may also establish this communication link using a USB connection cable
and the USB device interface of the OTT netDL unit (refer to Chapter 8.2).
Connect the USB cable to a USB socket of the PC
(USB connector type A).
Connect the USB cable to the USB device interface of the OTT netDL unit
(USB connector type B).
RJ-45 patch cable
Ethernet interface
(10Base-T, 10 Mbit)

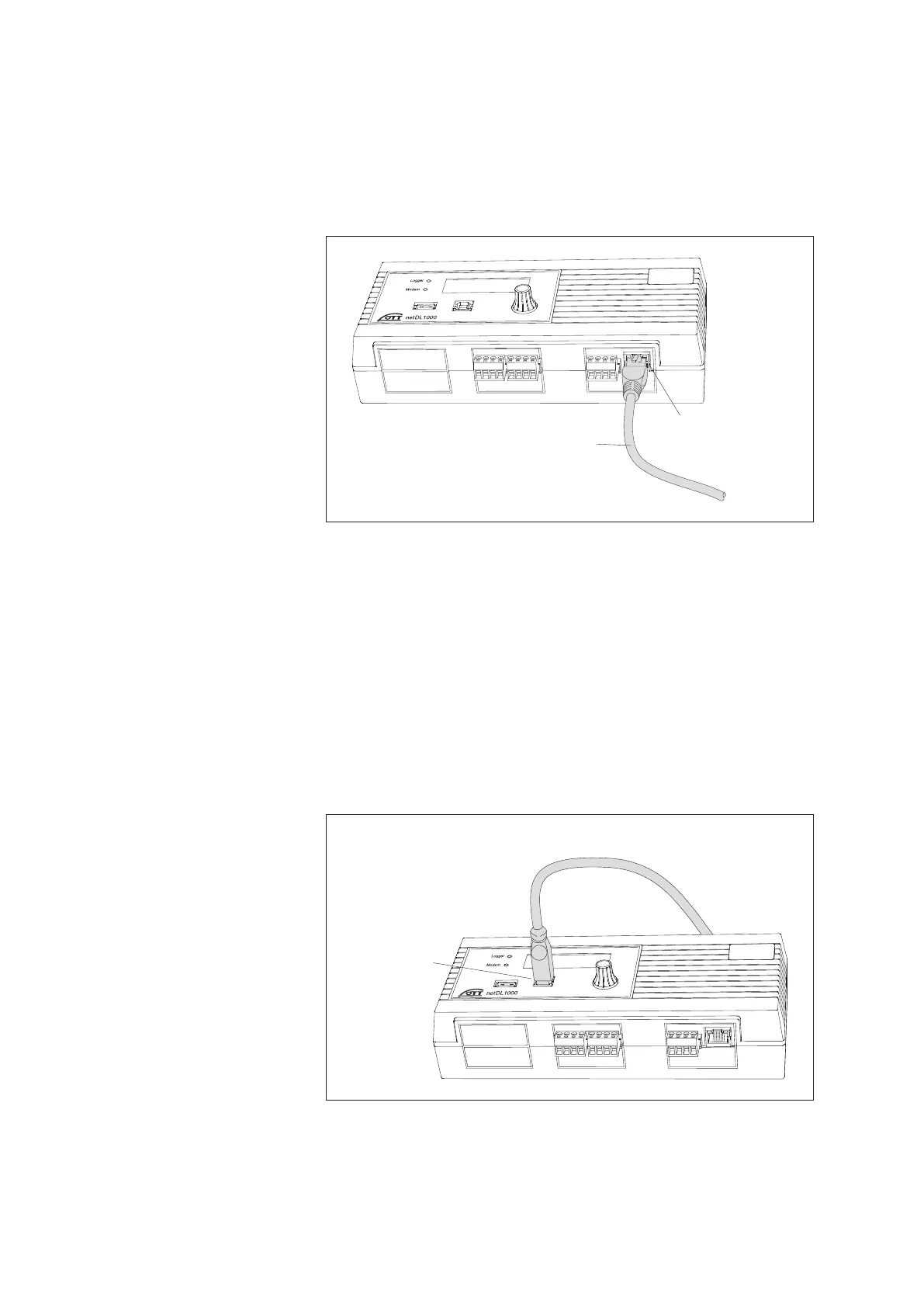

Fig. 28: Connecting Ethernet LAN or
DSL router to the OTT netDL 1000.
The two LEDs indicate the status of the
Ethernet interface; refer to Chapter 10.
Fig. 29: Connecting the USB cable
to the OTT netDL unit.
(Figure shows the OTT netDL 1000
unit; proceed the same way for the
OTT netDL 500 unit.)
USB-device-
interface
USB connection cable (USB connector type B)
