Overkill Solar BMS Series - Wiring Diagram; BMS Configuration Parameters

Wiring Diagram


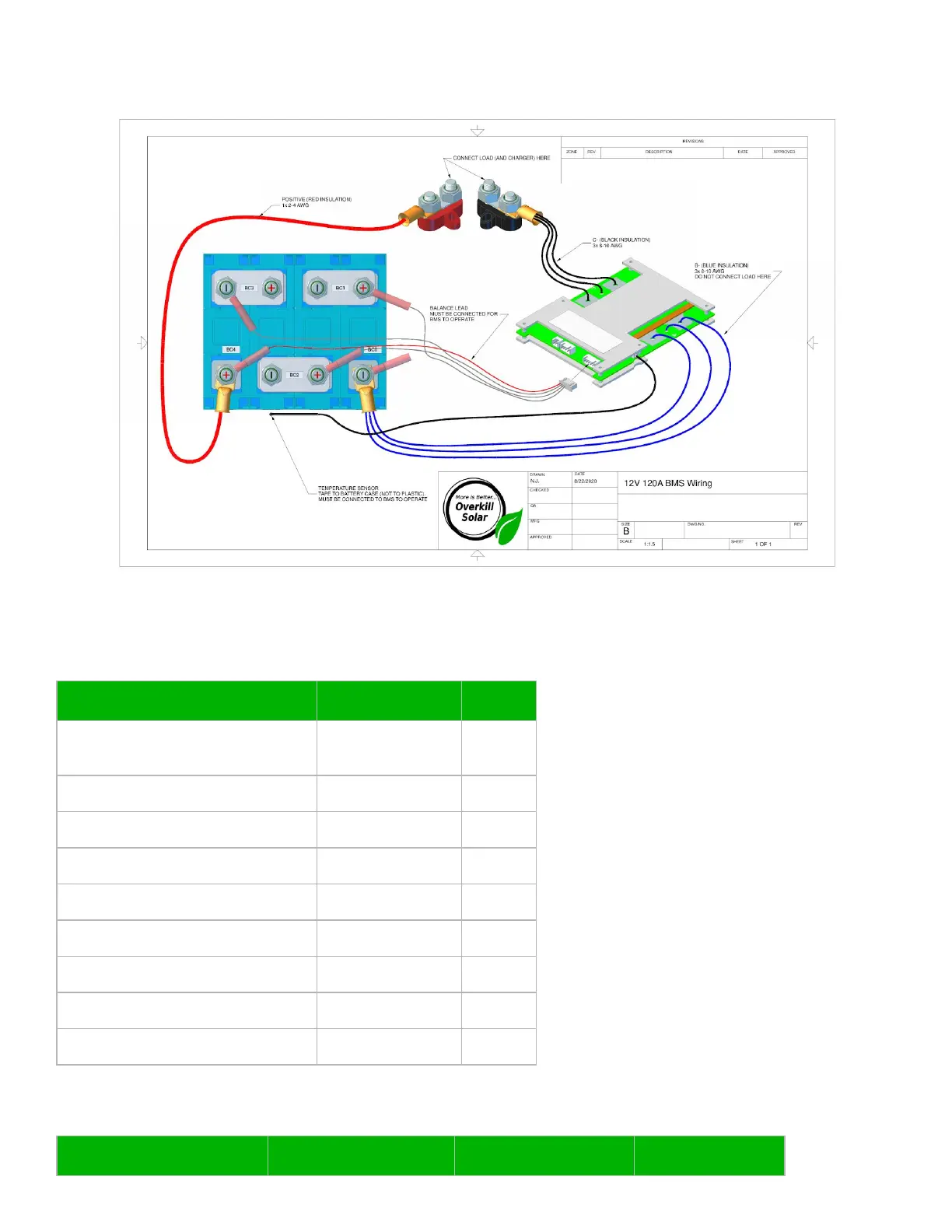

Figure A.2.2: Wiring Diagram for 12V pack, 4-cell using one 12V BMS
BMS Configuration Parameters
Capacity configuration:
Parameter
Value
Units
Designed capacity
100000
(100 amp hours)
mAh
Cycle capacity
80000
mAh
Full charge voltage (per cell)
3500
mV
End of discharge voltage (per cell)
2800
mV
Discharge rate
0.2
%
80% capacity voltage (per cell)
3400
mV
60% capacity voltage (per cell)
3300
mV
40% capacity voltage (per cell)
3200
mV
20% capacity voltage (per cell)
3100
mV


Protection parameters:
Parameter
Trigger Value
Release Value
Delay
