Overkill Solar BMS Series - A.4 24 V Pack, 8 Cell Configuration

A.4: 24V Pack, 8 Cell, Using One 24V BMS
Mechanical Drawing


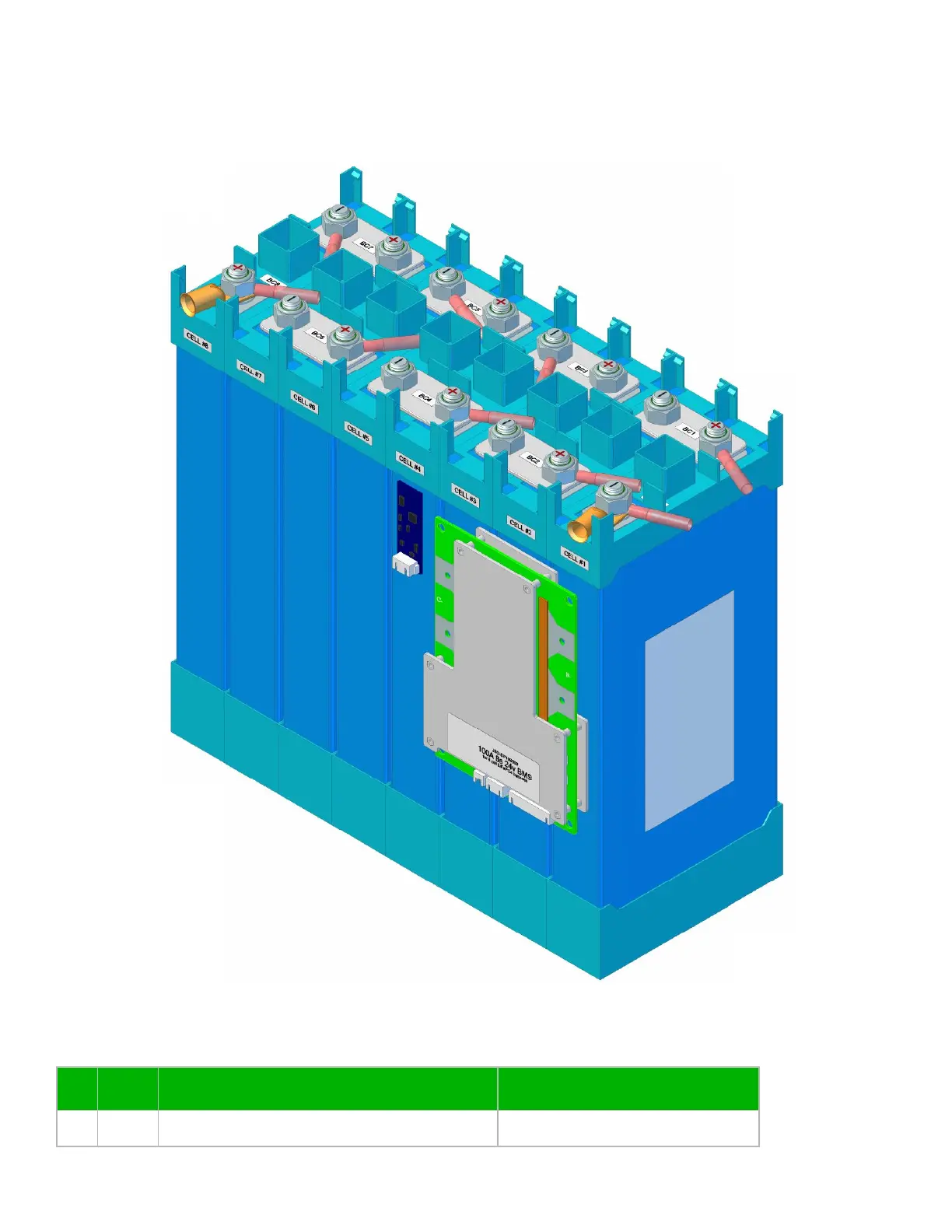

Figure A.4.1: 24V 8-cell pack assembly
Bill of Materials
#
Qty
Description
Notes
1
1
24V BMS
JBD-SP10S009
