4. Junior User Guidebook
Right Side Panel
1
2
3
4
5

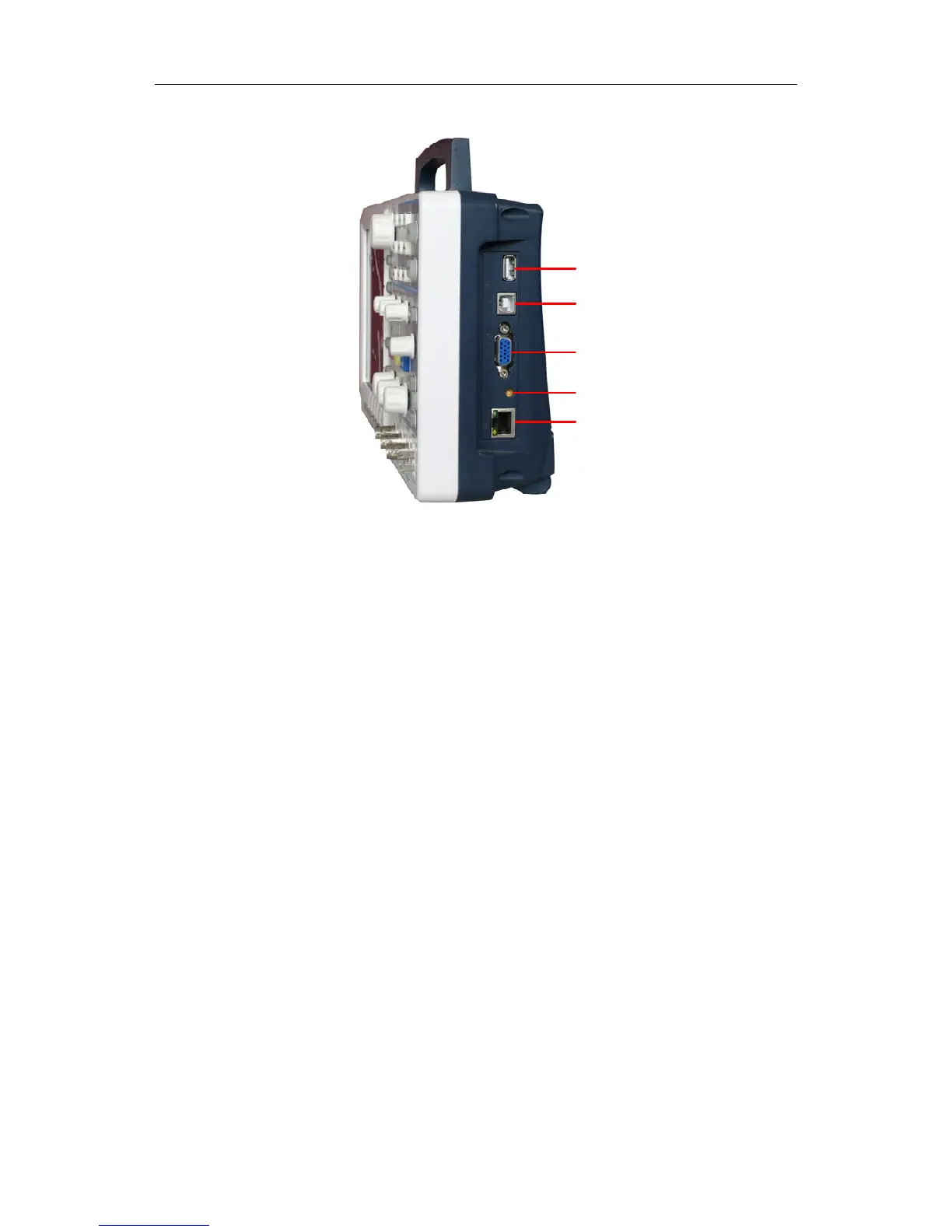

Fig. 4-2 Right side panel
1. USB Host port: It is used to transfer data when external USB equipment connects to
the oscilloscope regarded as "host device". For example: use this port to save waveform
file into USB flash disk.
2. USB Device port: It is used to transfer data when external USB equipment connects to
the oscilloscope regarded as "slave device". For example: to use this port when connect
PC to the oscilloscope by USB.
3. COM / VGA port (Optional): To connect the oscilloscope with external equipment as
serial port, or to connect the oscilloscope with a monitor or a projector as VGA output.
4. The port of trigger signal output & Pass/Fail output
5. LAN port: the network port which can be used to connect with PC.
7
