5. Advanced User Guidebook
How to Operate the Function Menu
The function menu control zone includes 9 function menu buttons and 3
immediate-execution buttons: Measure, Acquire, Autoset, Utility, Cursor,
Autoscale, Save, Display, Help, Run/Stop, Copy and Single.
How to Implement Sampling Setup
Press the Acquire button and the menu is displayed in the screen, shown as
Fig.5-25.

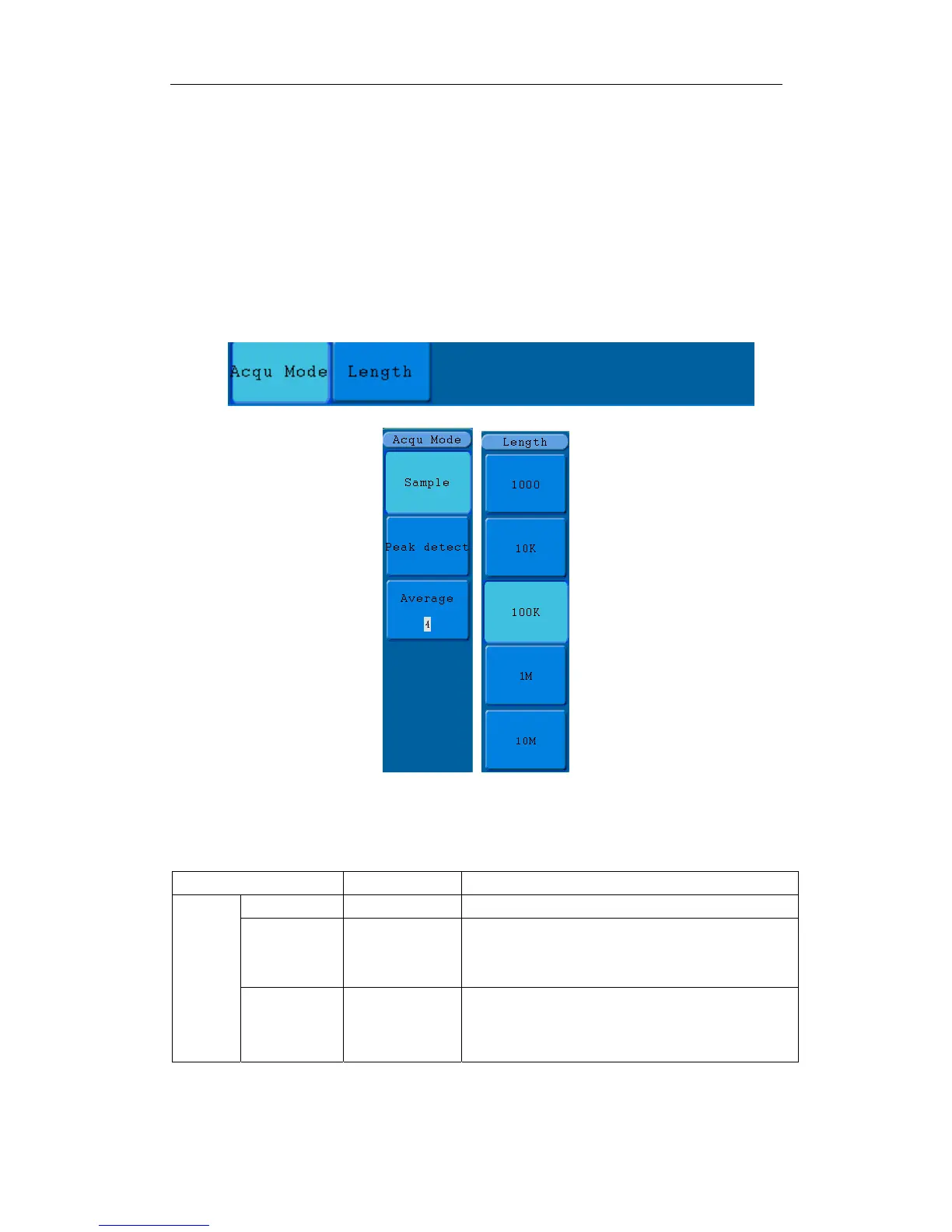

Fig.5-25 ACQU MODE Menu
The description of the Acqu Mode Menu is shown as follows:
Function Menu Setting Description
Sample General sampling mode.
Peak Detect
It is used for the detection of the jamming
burr and the possibility of reducing the
confusion.
Sample
Averages 4, 16, 64, 128
It is used to reduce the random and
don’t-care noises, with the optional number
of averages.
The description of the Record Length Menu is shown as follows:
User Manual of Smart Digital Storage Oscilloscope
