5. Advanced User Guidebook

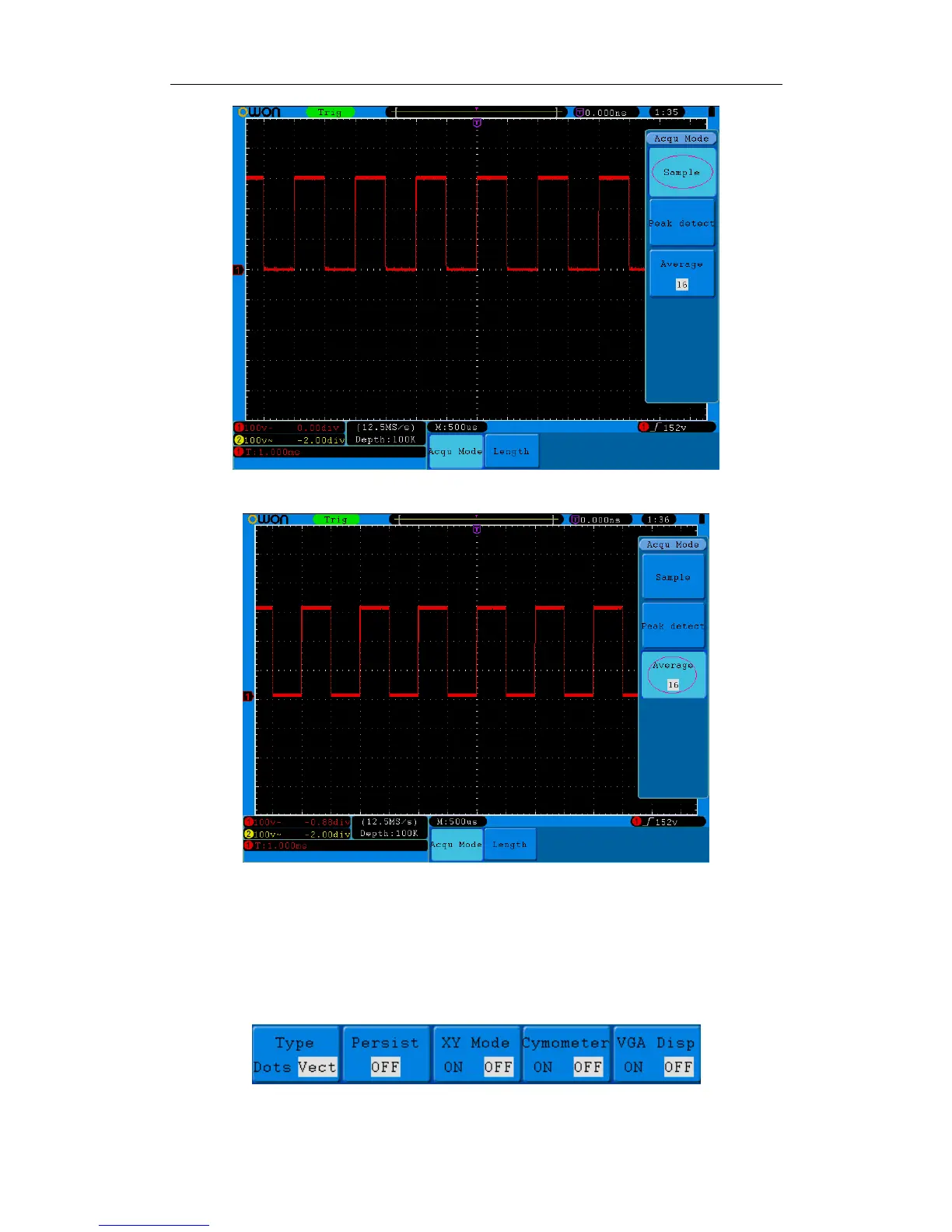

Fig.5-27 Common ACQU Mode display, in which no burr can be detected.
Fig.5-28 The displayed waveform after the noise is removed under the
Average Mode, in which the average number of 16 is set.
How to Set the Display System
Push down the Display button and the menu displayed in the screen is shown as
Fig.5-29.
Fig.5-29 Display Set Menu
User Manual of Smart Digital Storage Oscilloscope
