5. Advanced User Guidebook

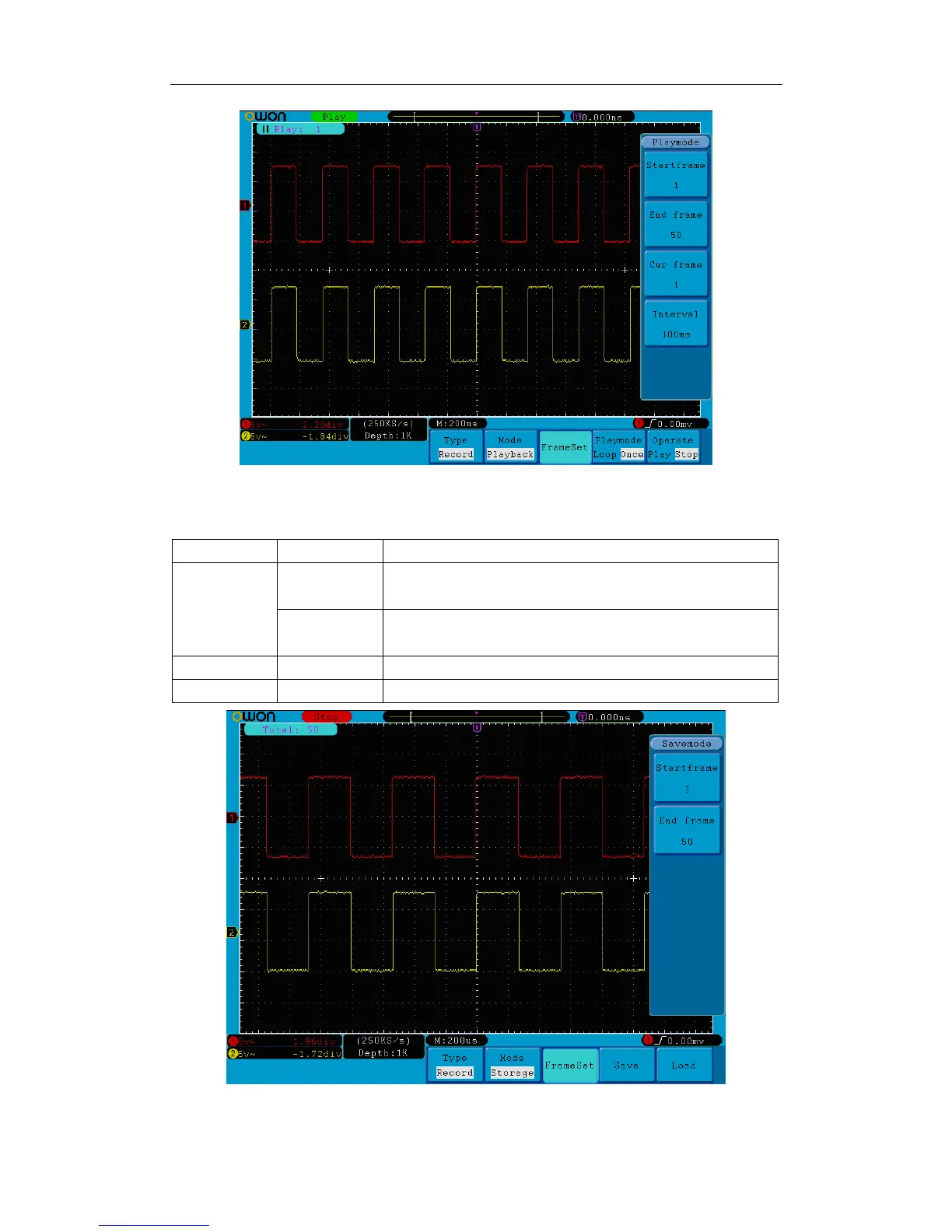

Fig.5-37 Wave Playback
Storage: Save the current wave according to the start frame and end frame set.
Storage menu shows as follows:
Menu Setting Instruction
Start frame
Turn the M knob to select the number of start frame
to store (1～1000)
Storage
Mode
End frame
Turn the M knob to select the number of end frame to
store (1～1000)
Frame Set
Save Save the waveform record file to the internal memory
Load Load the waveform record file from the memory
Fig.5-38 Wave Storage
