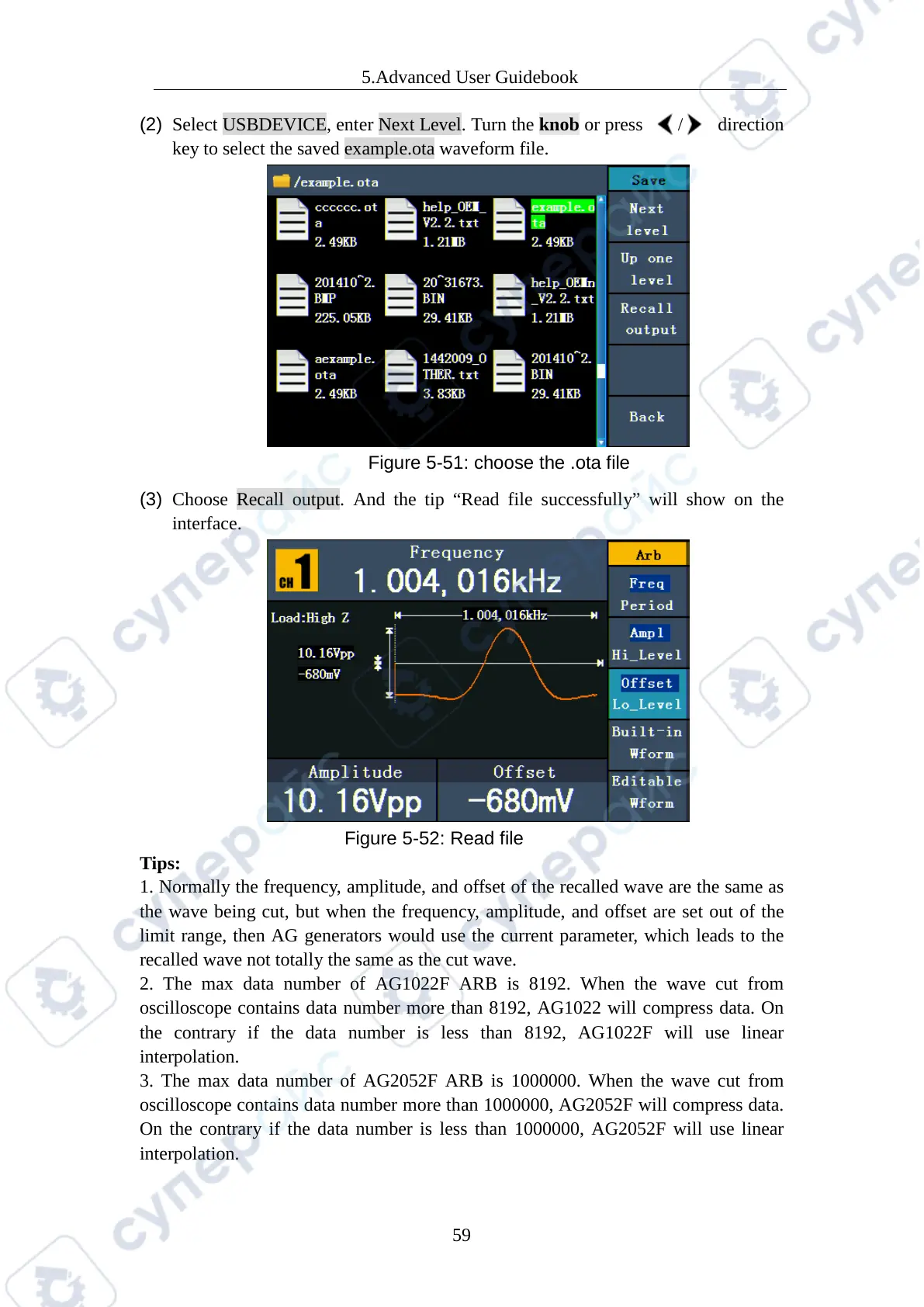

5.Advanced User Guidebook
(2) Select USBDEVICE, enter Next Level. Turn the knob or press / direction
key to select the saved example.ota waveform file.
Figure 5-51: choose the .ota file
(3) Choose Recall output. And the tip “Read file successfully” will show on the
interface.
Figure 5-52: Read file
Tips:
1. Normally the frequency, amplitude, and offset of the recalled wave are the same as
the wave being cut, but when the frequency, amplitude, and offset are set out of the
limit range, then AG generators would use the current parameter, which leads to the
recalled wave not totally the same as the cut wave.
2. The max data number of AG1022F ARB is 8192. When the wave cut from
oscilloscope contains data number more than 8192, AG1022 will compress data. On
the contrary if the data number is less than 8192, AG1022F will use linear
interpolation.
3. The max data number of AG2052F ARB is 1000000. When the wave cut from
oscilloscope contains data number more than 1000000, AG2052F will compress data.
On the contrary if the data number is less than 1000000, AG2052F will use linear
interpolation.
