5.Advanced User Guidebook
Autoscale
OFF
Autoscale.
Turn off Autoscale.
Mode
Follow-up and adjust both vertical and horizontal
settings.
Follow-up and only adjust horizontal scale.
Follow-up and only adjust vertical scale.
Wave
Show Multi-period waveforms.
Only show one or two periods.
If you want to measure the two-channel signal, you can do as the follows:
1. Press Autoscale button, the function menu will appear.
2. Press H1 to choose ON.
3. Press H2 and choose for Mode item.
4. Press H3 and choose for Wave item.
Then the wave is displayed in the screen, shown as Figure 5-80.

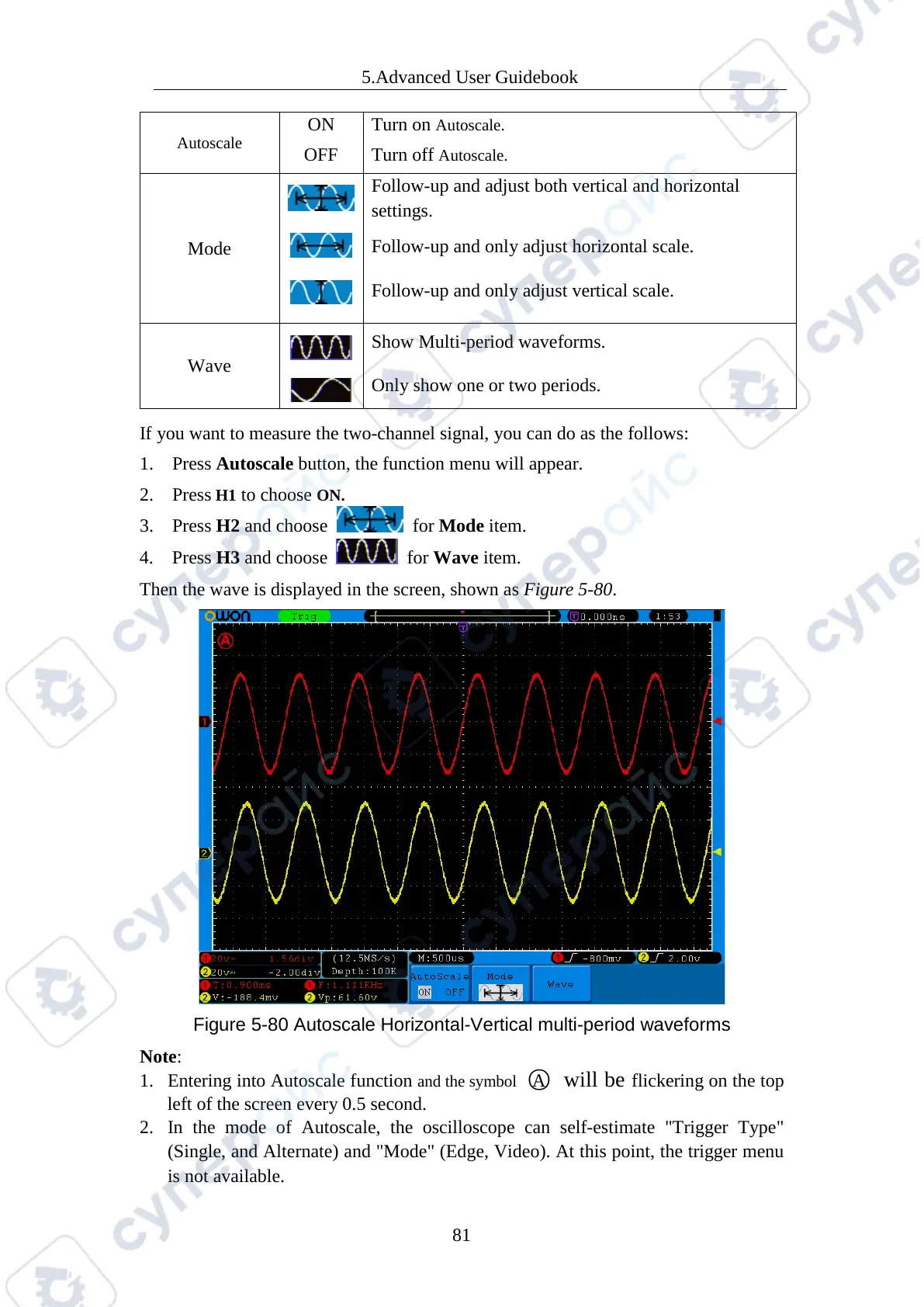

Figure 5-80 Autoscale Horizontal-Vertical multi-period waveforms
Note:
1. Entering into Autoscale function and the symbol
○
A will be flickering on the top
left of the screen every 0.5 second.
2. In the mode of Autoscale, the oscilloscope can self-estimate "Trigger Type"
(Single, and Alternate) and "Mode" (Edge, Video). At this point, the trigger menu
is not available.
