The cooling unit
Illustration

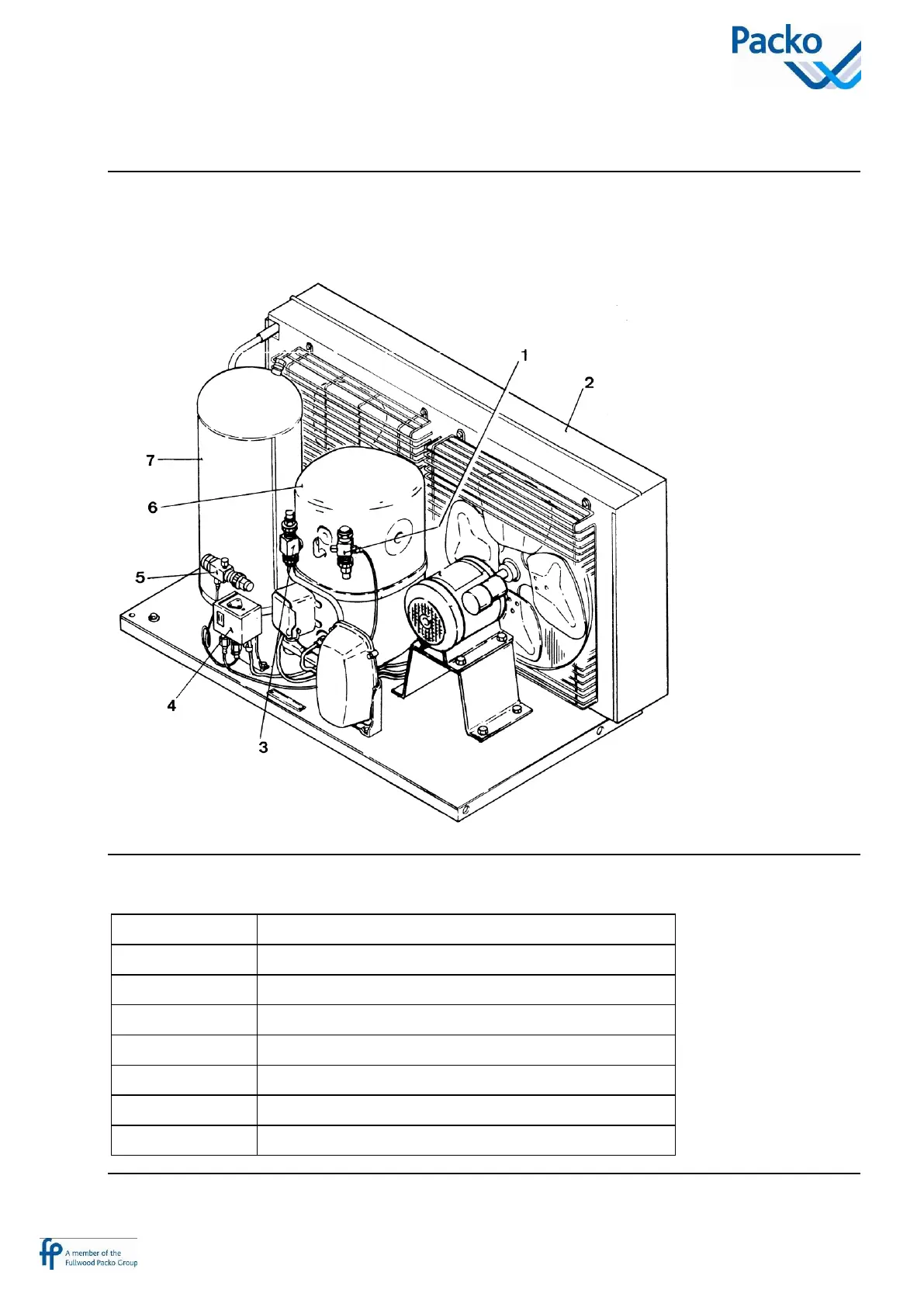

The drawing below shows the most important parts of a cooling unit supplied by Packo. As not all the parts
are standard, you will perhaps not find all of them in your cooling unit.
Parts
Element
Function
1
Suction Rota-lock valve
2
Condenser
3
High-pressure Rota-lock valve
4
High and low-pressure switch
5
Liquid receiver valve
6
Compressor
7
Liquid receiver
