Parts of the DX/DIB milk cooling tank
Illustration

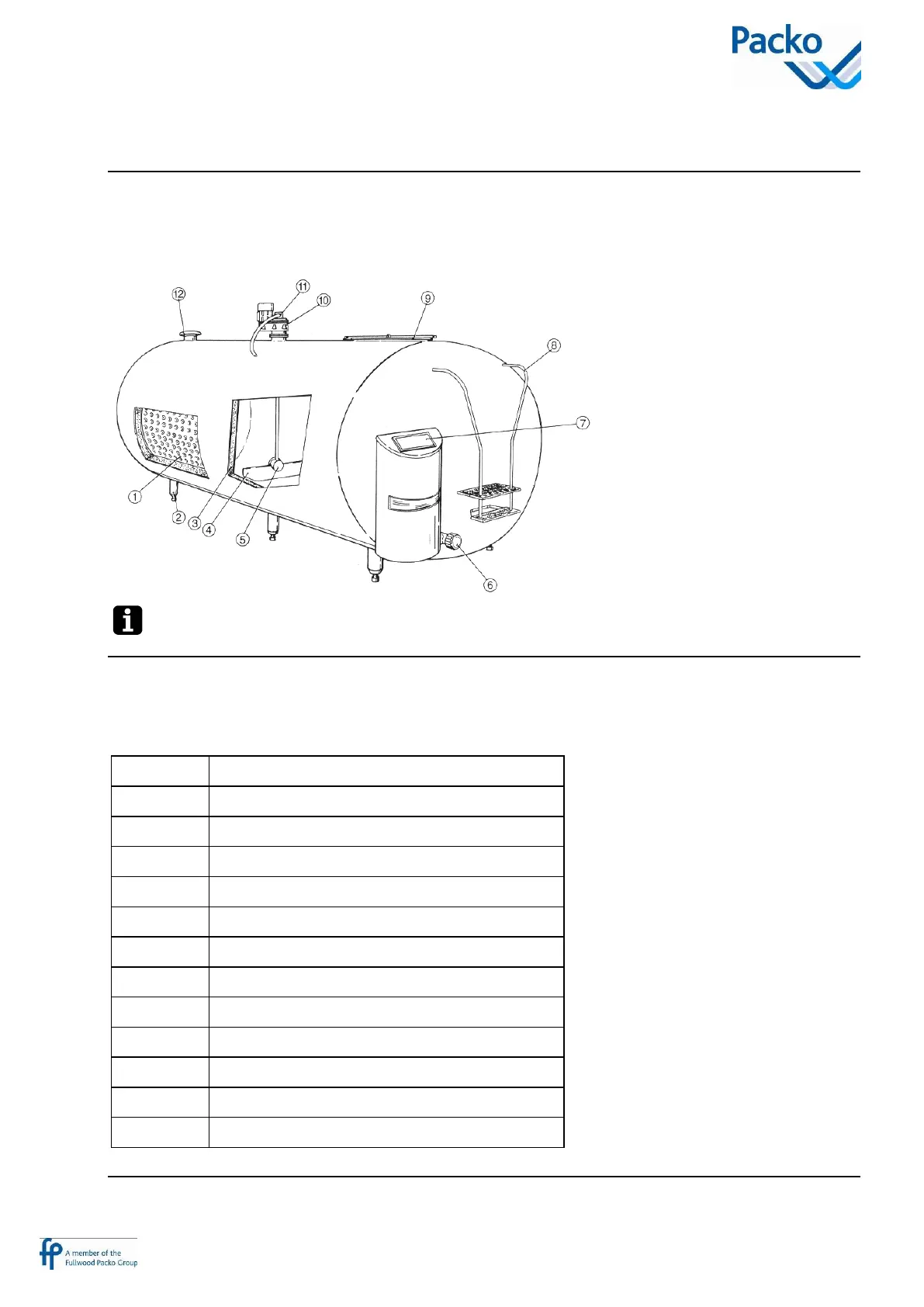

The drawing below shows the most important parts of the milk cooling tank.
The shape of the tank and the control panel may be round or oval, depending on the type.
Parts
The table below provides an overview of all the parts:
Part
Description
1
Evaporator
2
Adjustable legs
3
Insulation layer
4
Agitator
5
Roto-Jet Spray ball
6
Milk outlet
7
Control panel
8
Steps
9
Manhole, manhole cover with milk inlet opening
10
Agitator motor
11
Pressure pipe for cleaning
12
Vent (the vent hole can be used as a milk inlet)
