Packo RM/IB Series - The DX Cooling System; Schedule; Parts

45/78 06/02/2008
1.00
The DX cooling system
Schedule

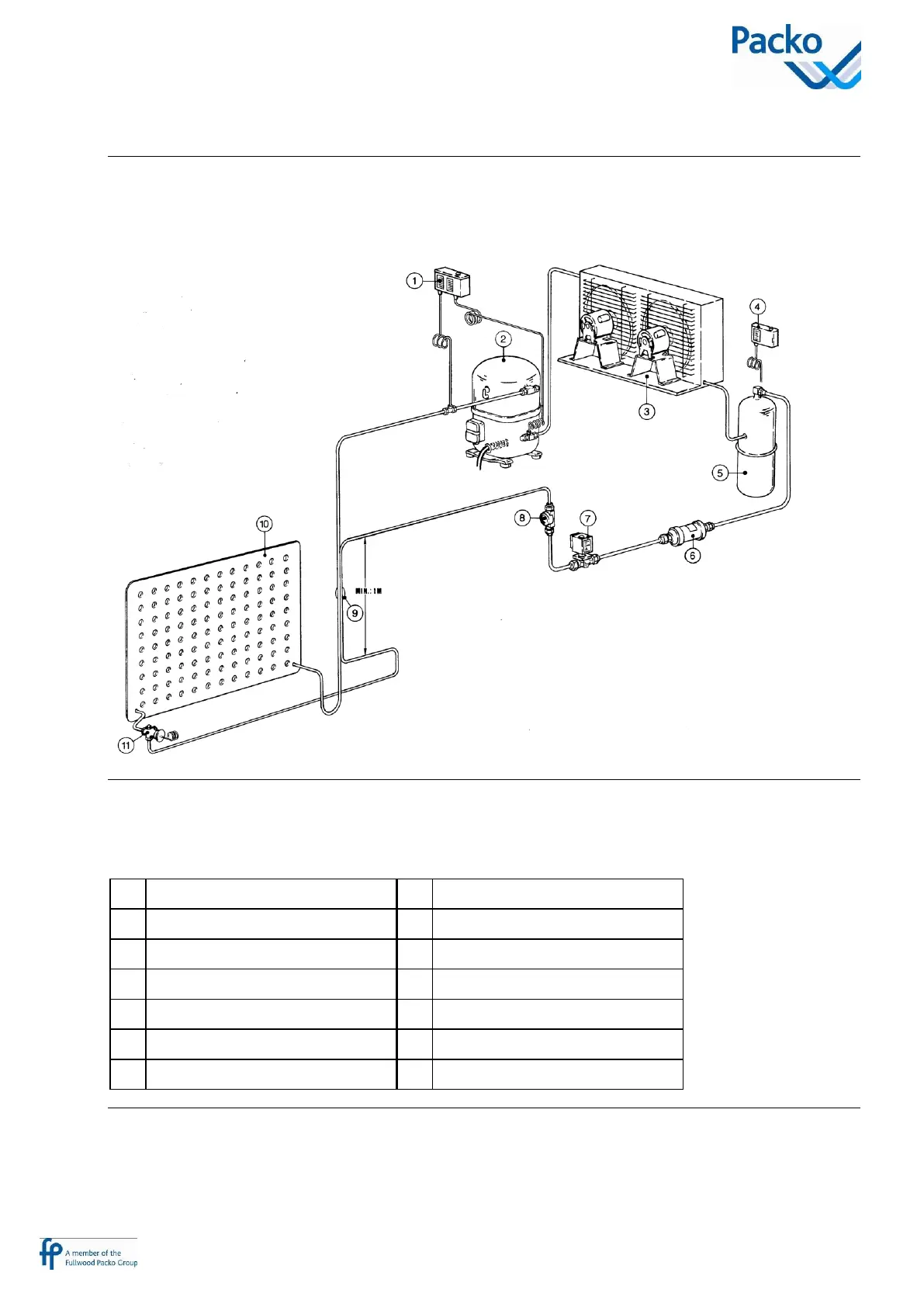

The drawing below shows the DX cooling system schematically:
Parts
The table below provides an overview of the parts of the DX cooling system:
No
Description
No
Description
1
High and low pressure switch
7
Solenoid valve
2
Compressor
8
Sight-glass
3
Air-cooled fan condenser
9
Heat Exchanger (option)
4
High-pressure switch (option)
10
Evaporator
5
Liquid receiver
11
Thermostatic expansion valve
6
Filter drier
