Chapter 4 Device and function
25

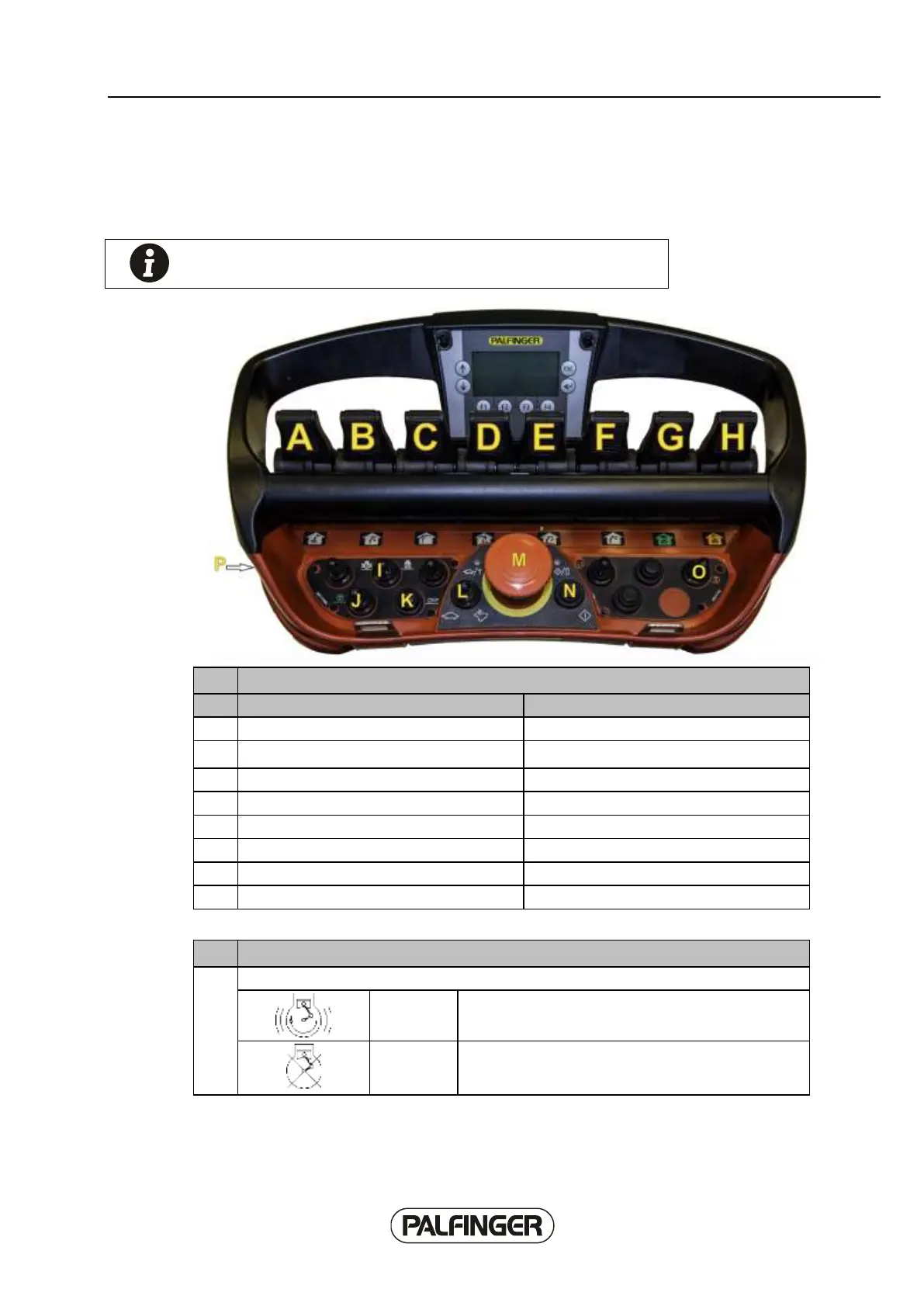

Overview of remote control
Note! The charging time of the radio remote control battery is 3
hours!
Description
Function towards the body
Function away from body
A
Slewing drive to the left
Slewing drive to the right
B
Lift main boom
Lower main boom
C
Retract extension booms
Extend extension booms
D
Raise rope winch
Lower rope winch
E
Lift outer boom
Lower outer boom
F
Retract extension booms
Extend extension booms
G
Extend rope protection cylinder
Retract rope protection cylinder
H
Lock the crane interlock
Unlock the crane interlock
Description
I
Motor start / stop
Left
Start motor
Right
Stop motor
