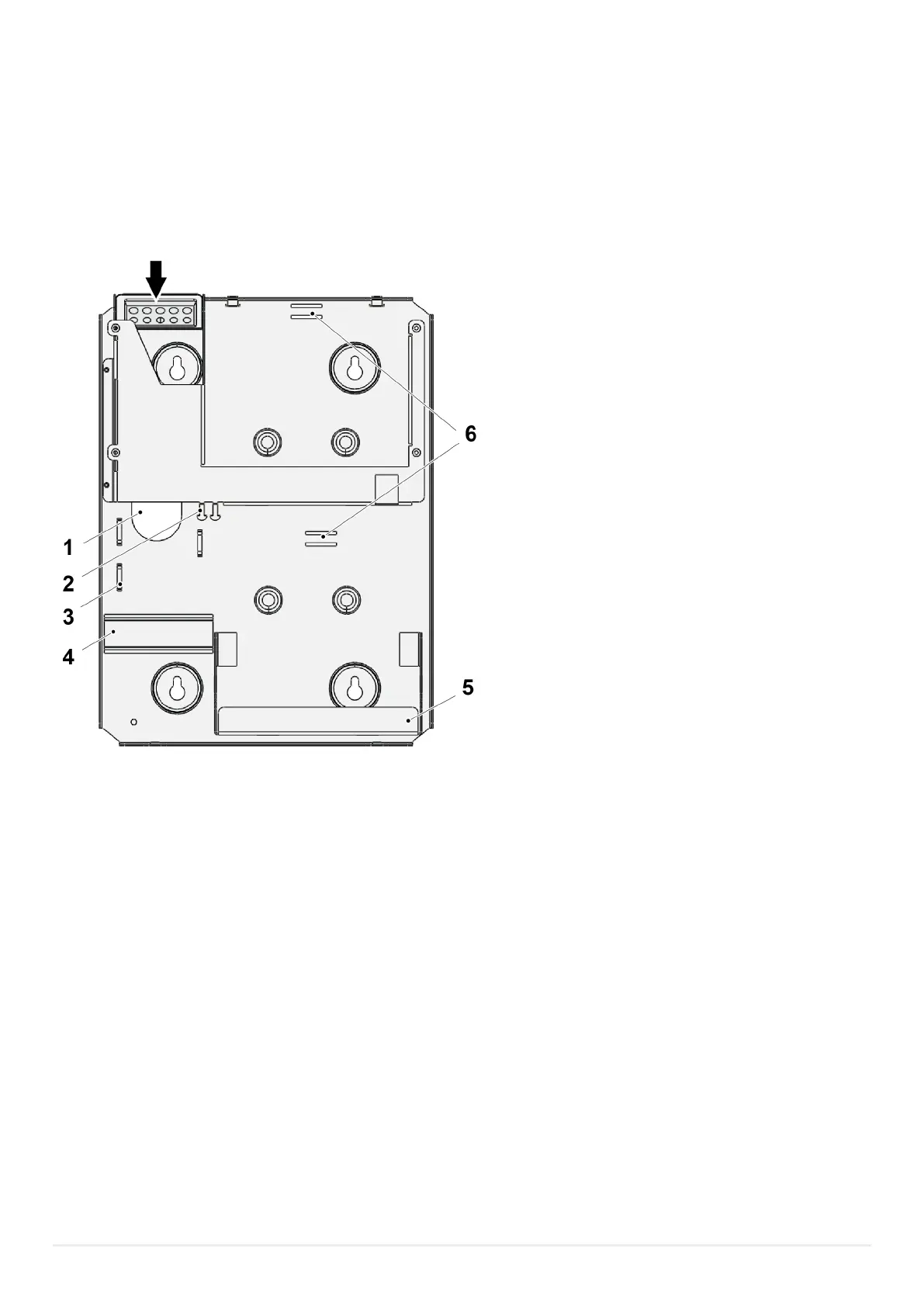

3.7. CIE CHASSIS
The chassis is to be mounted on the wall.
1. Cable entry opening 47 x 70 mm
2. Cable shield holder
3. 3 x cable holder
4. Symmetric 35 mm DIN rail for mains connection, power supply and Gateway (option)
5. 2 x battery shelf
6. 2 x hole for battey straps
Cable entry (Grommet)
5 x Ø 7.7 mm
5 x Ø 6.7 mm
