Panasonic 2000

2000
- FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION
14

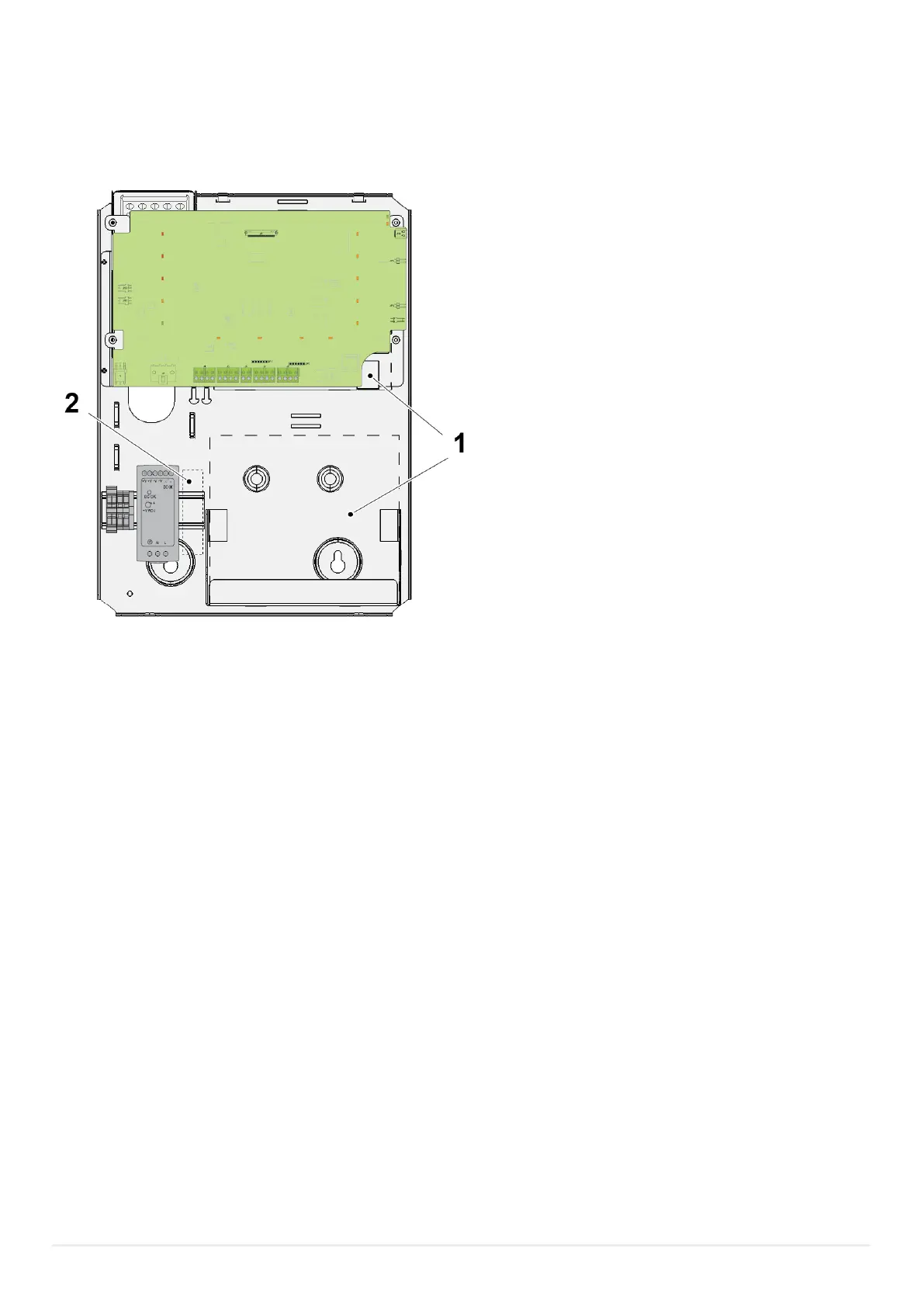

4. CONNECTIONS IN THE CIE
1. Position for backup batteries
2. Position for Gateway
J4
- COM loop
J5
- Power supply output 1
- Power supply output 2
J6
- Supervised voltage output S1
J7
- Input I1
- Fire brigade TX
J8
- Input I2
- Faults TX
J1
- Connection to rectier
J2
- Connection to batteries
2010
- Mainboard
Power supply
- Power supply unit, rectier
