7.5. REPLACEMENT OF THE LCD MODULE
a) Remove the LCD module and place it on a clean surface, see 7.2. REMOVAL OF THE LCD MODULE on page 26.

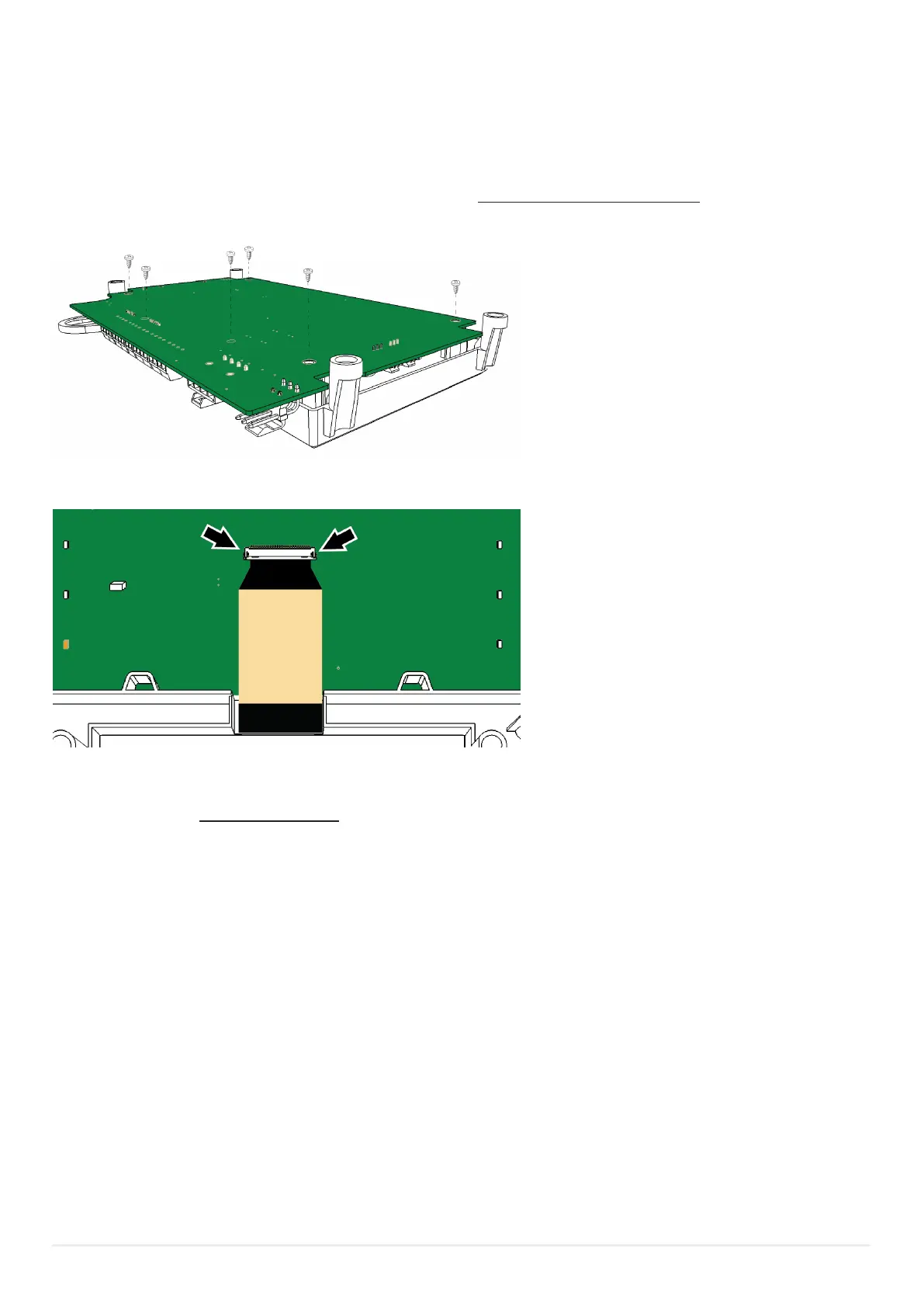

b) Remove the six screws and the PCB.
c) Open the two pins and disconnect the LCD cable from J9.
d) Replace the LCD module.
e) re-assemble all parts in the opposite way
f) Start up the CIE, 7.7. START UP THE CIE on page 29.
