5. MOUNTING
The CIE must be mounted on the wall. Screws are not supplied. EBLOne is approved for mounting on an incombustible wall, for
example concrete.

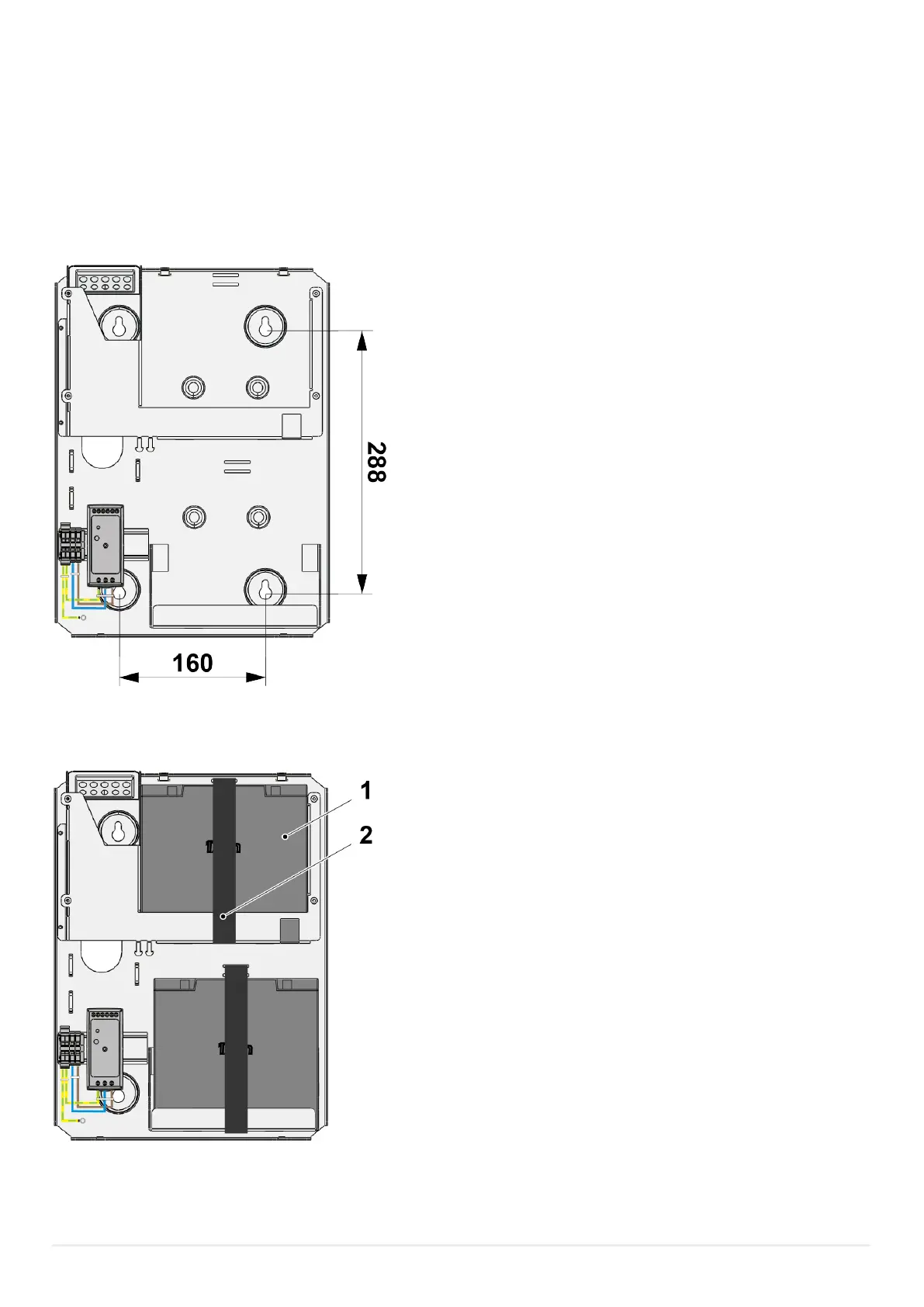

a) Mount the CIE chassis on the wall. Remove the power supply temporarily to reach the screw.
(Measures in mm)
b) Mount the battery / batteries and fasten with the battery straps.
1. Battery
2. Battery strap
