2000 - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION
13

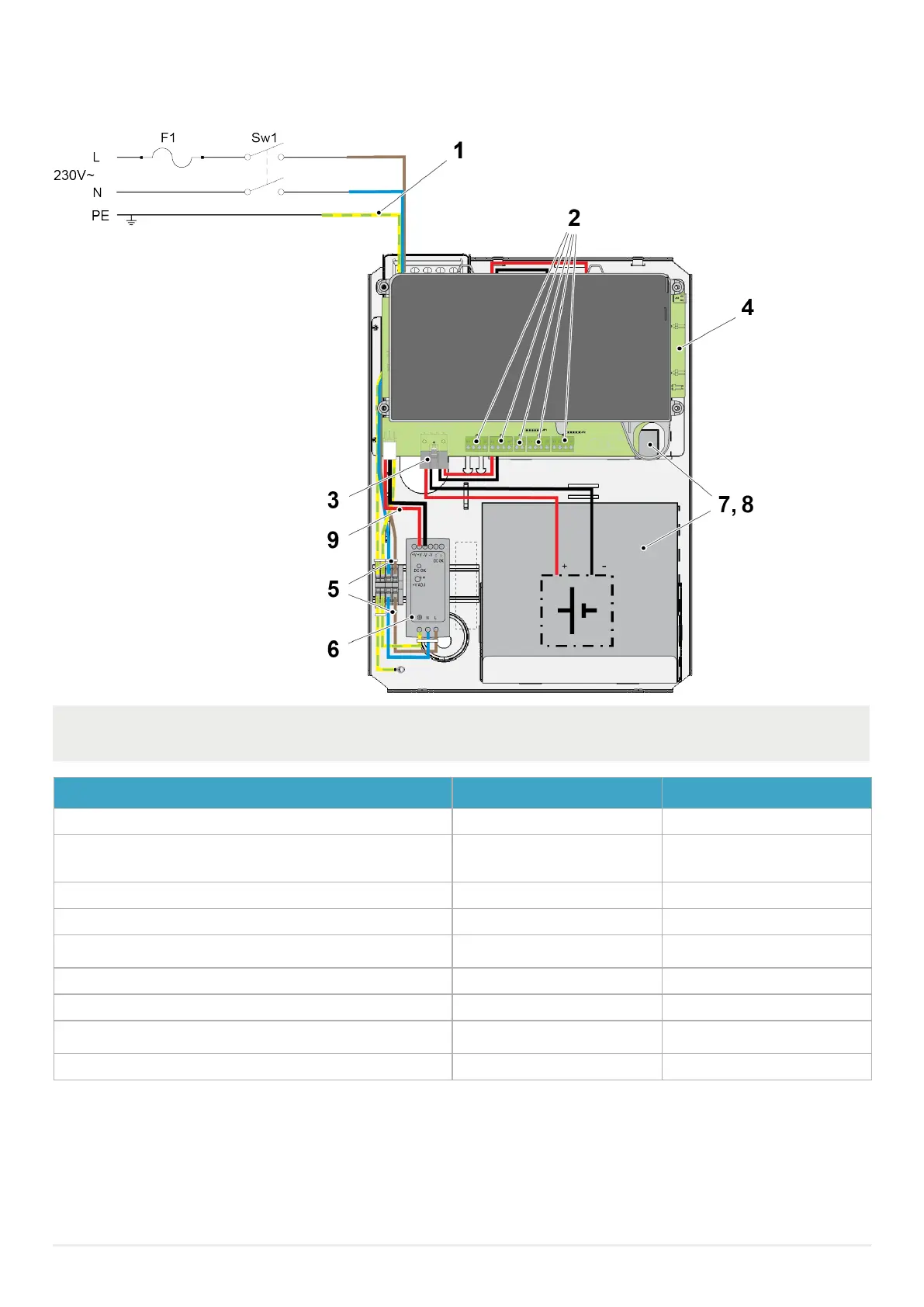

Power supply function in CIE Min / max voltage Min / max current
1 Mains, 230 V AC 195V / 253V AC
2
Output current for continuous use. (I
max
a)
Output current for continuous use, no battery charging. (I
max
b)
Output voltage 22.0 / 25.0V DC
300 mA
1150 mA
3 Battery charging current from main board to the battery. 10.0 - 14.5V, Nom 13.65V Max 1.3A
4 Main board - 110 mA / 240 mA
5
Cable tie to keep the 24V DC conductors well separated from the mains
conductors
- -
6 Power supply, 230V AC, 1.1 A / 24V DC, 1.7A - -
7 Internal batteries 2 x 12V, 17 Ah or 1 x 12V, 17 Ah - -
8
Battery supply, by loss of 230V AC.
RImax: 0.5 Ω / battery
10.2 / 14.5V
-
9 Internal Power Supply Output 23.8 / 24.2V Max 1.7A
CAUTION!
The control unit has two energy sources.
3.9.1. DISCONNECT DEVICE
Appropriate disconnect device (all-pole mains switch) shall be provided as a part of the building installation, see SW1 in illustration
above. The disconnect device shall have a contact separation of at least 3 mm.
Mount a two-way circuit breaker, outside and close to the CIE. The circuit breaker is to be used by service / maintenance personnel.
