Connecting to External Devices – Connecting with headphones and TV/monitor
262
TV/monitor

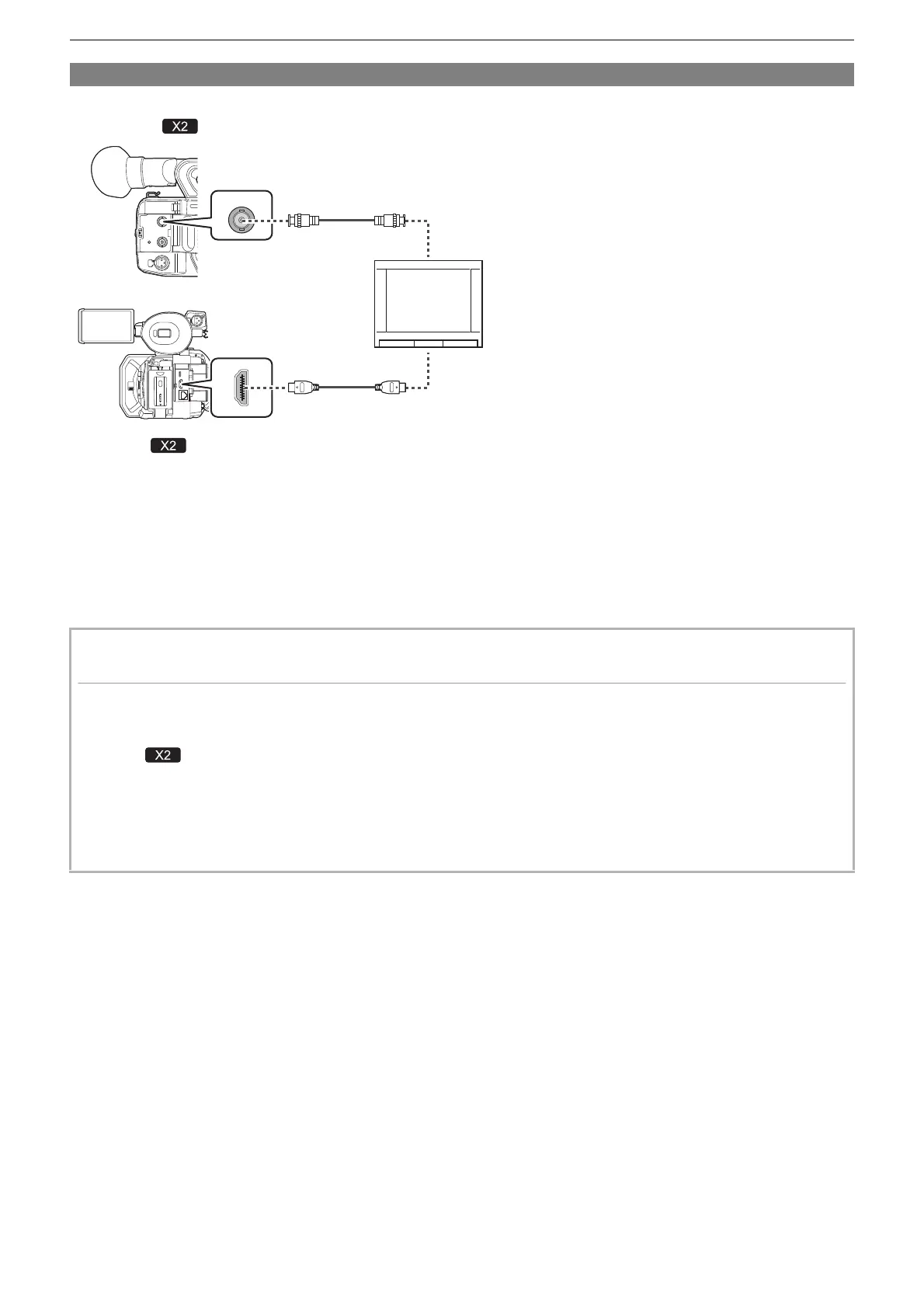

A TV or monitor can be connected as shown in the following figure.
• When using , use a BNC cable (<SDI OUT> terminal) to connect a TV/monitor.
(A) (For the )
BNC cable (commercially-available)
(B) HDMI cable (commercially-available)
(C) TV/Monitor
• By connecting this unit to a 4K video compatible TV/monitor using an HDMI cable, and playing back clips recorded with a
recording format that has a resolution of UHD (3840×2160), you can enjoy the finely detailed video provided by 4K videos. If
the TV/monitor is not compatible with 4K video, you can set [HDMI OUT FORMAT]/[OUT FORMAT] and reduce the output
resolution for playback. (ÎFormat that can be output from the HDMI terminal: 240)
When using a DVI converter, etc., to connect an HDMI cable to this unit, make sure that you connect last to the
<HDMI> terminal on this unit. Connecting first to the <HDMI> terminal on this unit may cause a malfunction.
• VIERA Link is not supported on the unit. Note that the VIERA Link of other device may not properly operate when
connected to the VIERA Link compatible device with a HDMI cable (commercially-available).
• The SD resolution signal output from the <HDMI> terminal is output as a progressive signal (480P, 576P).
• (For the )
Use a commercially-available 5C-FB or equivalent double-shielded cable for the BNC cable.
• Use a commercially-available Premium High Speed HDMI cable.
• When this unit is connected to a TV/monitor while displaying the camera image screen, there may be some howling
*
caused. Press the <THUMBNAIL> button to switch to the thumbnail screen first before connecting this unit to a TV/monitor.
* The microphone can pick up the sounds coming from the speaker which can cause unusual sounds.
