6 Using the System
6.5.4 Displaying pulse meter total data
Use this screen to check the pulse count and other such cumulative data for pulse meters.
Procedure

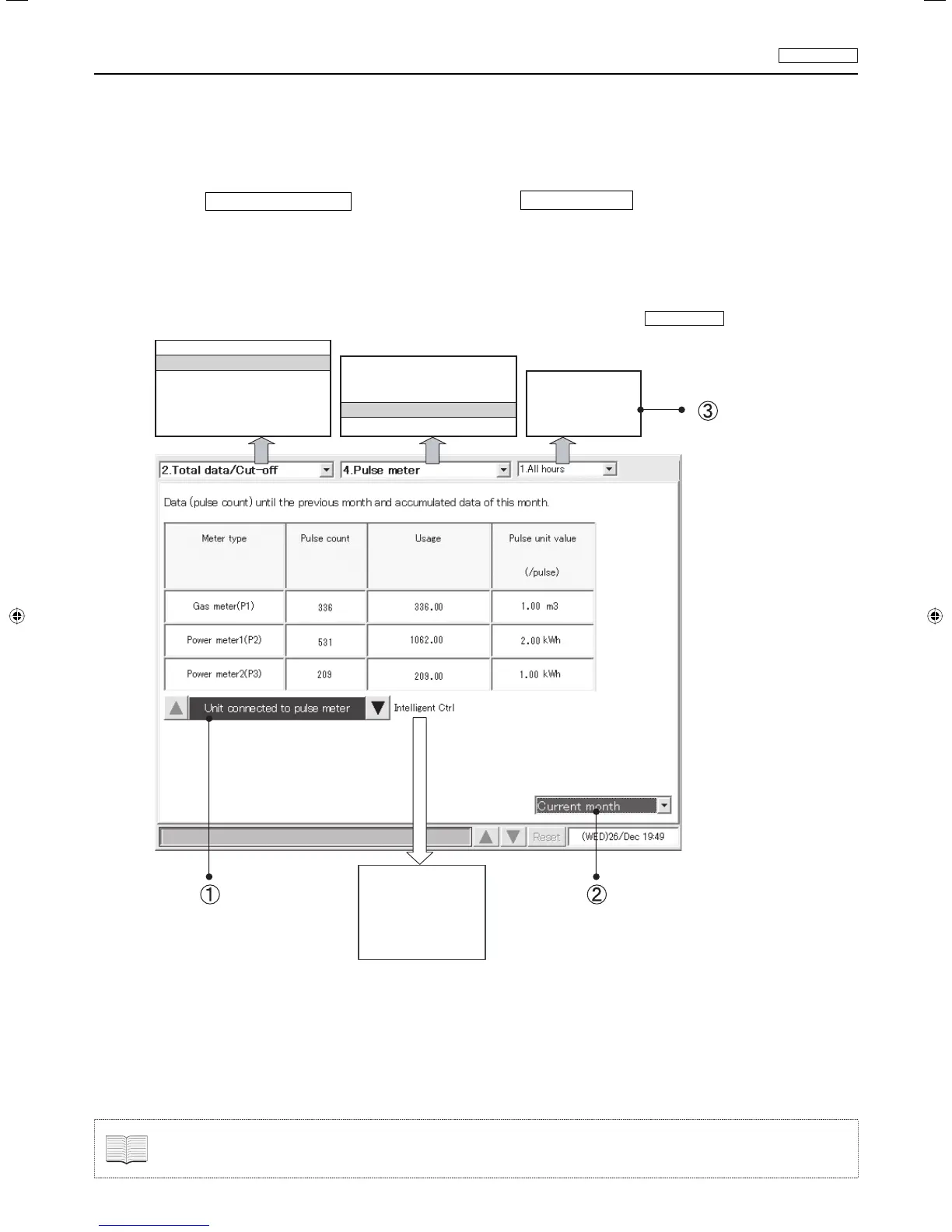

Select 2. Total data/Cut-off in the main menu, and 4. Pulse meter in the sub menu.
1
Selects the pulse meter connection destination.
2
Selects either the current or the past (maximum 24 months) cut-off data.
3
Selects the time zone to display.
* This button will be invalid when setting the mode at “No Distrib.”. (see
Main
Sub
1
1
5
5
)
Intelligent Ctrl
Adapter 1
Adapter 2
:
Adapter 7
1.Status/Control
2.Total data/Cut-off
3.Distrib. ratio/Usage
4.Maintenance/Test Run
5.Initial settings
6.Auxiliary settings
1.Each I/D unit
2.Each tenant
3.Each O/D unit
4.Pulse meter
5.Cut-off/Data backup
1.All hours
2.Regular hours
3.Out of hours
4.Special Day
If the product type is HOT Multi, unit amount will be displayed in m
3
or liters. The meter type will be “fuel
metering”.
