47
RQT8851
Setting Menus
Connection and Setting
Note: The terminals on the rear of your TV may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
If your TV does not have AV IN terminals (50).

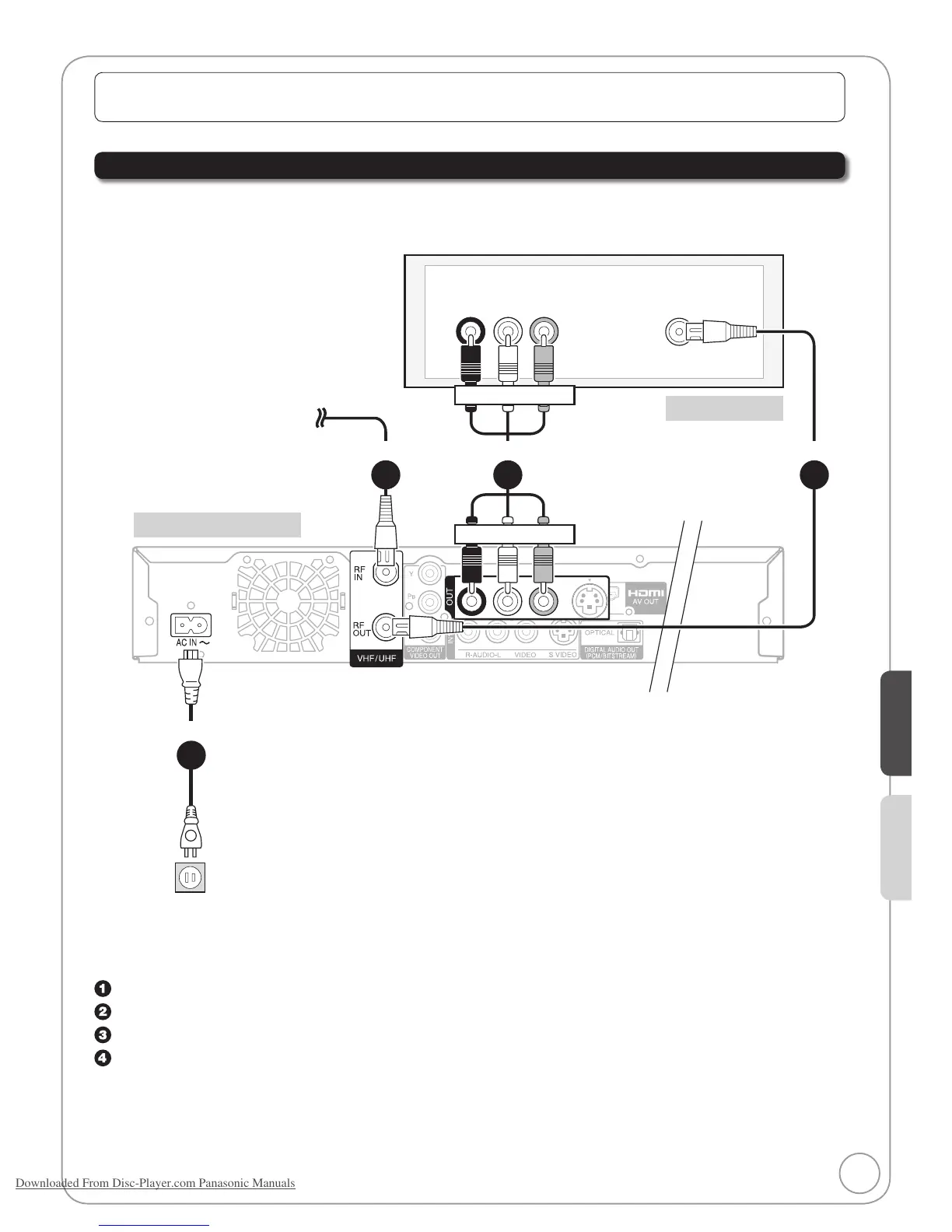

Connecting to a Television with Direct Cable or Antenna (No Cable Box or Satellite Receiver)
VHF/UHF
RF IN
Rear of TV
Rear of this unit
AUDIO IN
R L
VIDEO
IN
step
2
Red White Yellow
step
4
step
1
step
3
Red White Yellow
To a household AC outlet
(AC 120 V, 60 Hz)
Coaxial cable from the wall or antenna signal to the RF IN on the unit.
Coaxial cable
(included)
from the RF OUT on the unit to the VHF/UHF RF IN on the TV.
Audio/video cable
(included)
from the OUT on the unit to the AV IN on the TV.
AC power supply cord
(included)
from the AC IN~ on the unit to a household AC outlet.
Basic Connection
Cable from the wall or
antenna signal
Downloaded From Disc-Player.com Panasonic Manuals
