48
RQT8851
Note: The terminals on the rear of your TV and Cable Box may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
Consult your cable service provider about the appropriate cable box to use.
Additional coaxial cable and audio/video (AV) cable are required.
If your TV does not have AV IN terminals (➔ 50).

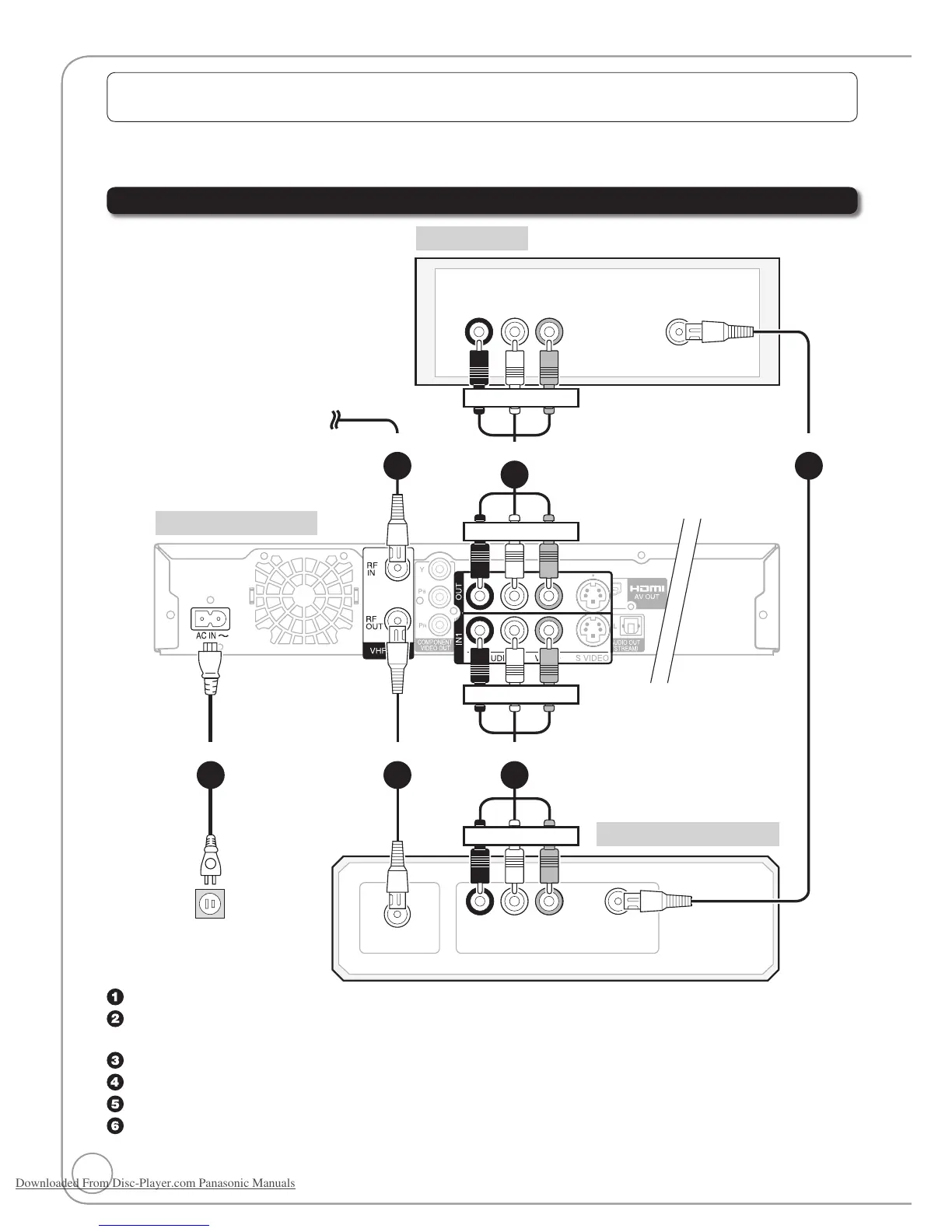

Connecting to a Television and a Cable Box
AUDIO OUT
R L
VIDEO
OUT
RF IN
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
step
3
step
1
step
2
step
6
Red White Yellow
Red White Yellow
step
4
step
5
Red White Yellow
Red White Yellow
Rear of Cable Box
Rear of TV
Rear of this unit
Cable from the wall
To a household AC outlet
(AC 120 V, 60 Hz)
Coaxial cable from the wall to the “RF IN” on the unit.
Coaxial cable
(included)
from the “RF OUT” on the cable box to the “VHF/UHF RF IN” on the
TV.
Audio/video cable
(included)
from the “OUT” on the unit to the “AV IN” on the TV.
Coaxial cable from the “RF OUT” on the unit to the “RF IN” on the cable box.
Audio/video cable from the “AV OUT” on the cable box to the “IN1” on the unit.
AC power supply cord
(included)
from the “AC IN~” on the unit to a household AC outlet.
•
•
•
Basic Connection
To Next Page
