49
RQT8851
Connection and Setting
Note: The terminals on the rear of your TV and Satellite Receiver may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
Additional coaxial cable and audio/video (AV) cable are required.
If your TV does not have AV IN terminals (➔ 50).

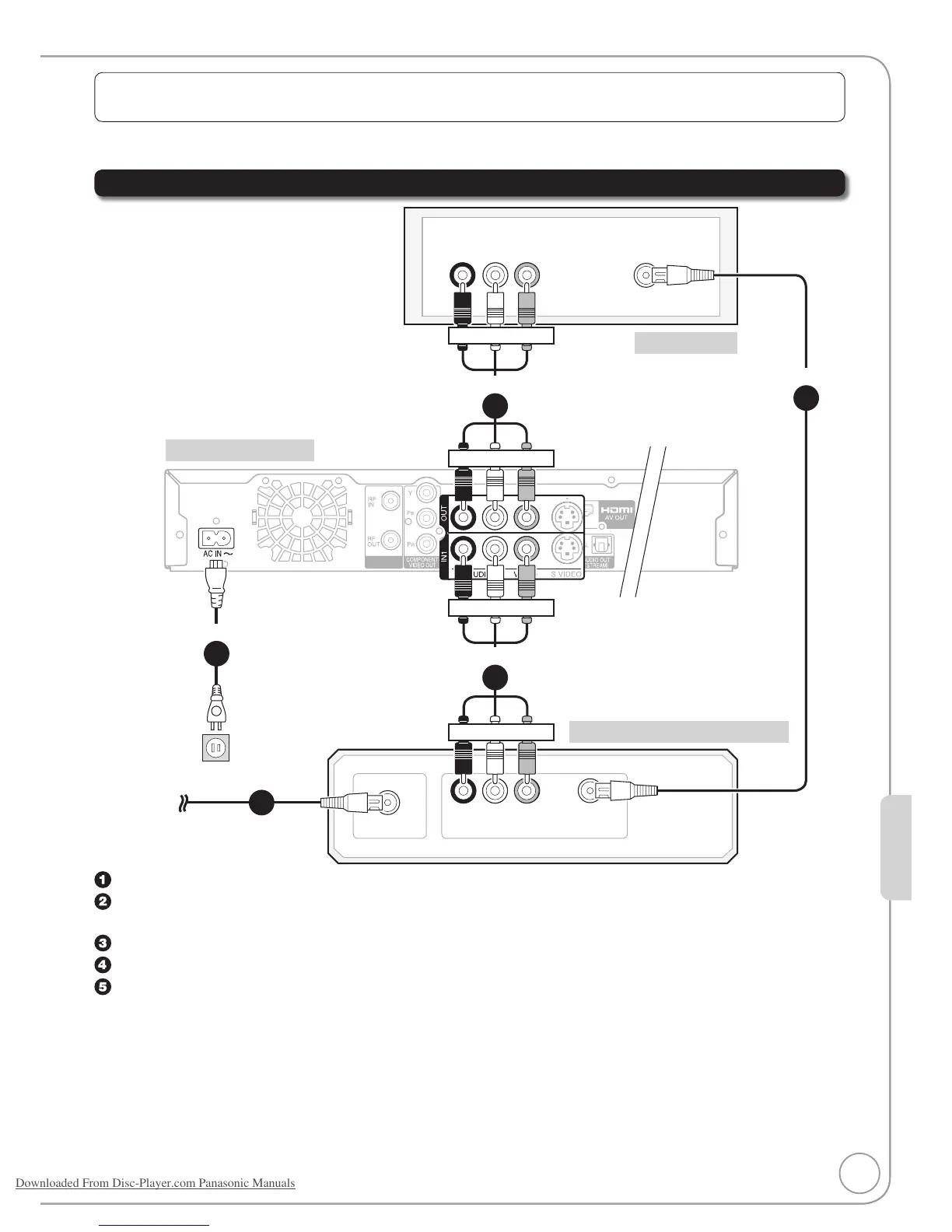

Connecting to a Television and a Satellite Receiver
AUDIO OUT
R L
VIDEO
OUT
SATELLITE IN
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
step
3
step
2
step
5
Red White Yellow
Red White Yellow
step
4
Red White Yellow
Red White Yellow
step
1
Rear of Satellite Receiver
Rear of TV
Rear of this unit
VHF/UHF
Satellite
antenna
To a household AC outlet
(AC 120 V, 60 Hz)
Coaxial cable from the satellite antenna to the “SATELLITE IN” on the satellite receiver.
Coaxial cable
(included)
from the “RF OUT” on the satellite receiver to the “VHF/UHF RF IN”
on the TV.
Audio/video cable
(included)
from the “OUT” on the unit to the “AV IN” on the TV.
Audio/video cable from the “AV OUT” on the satellite receiver to the “IN1” on the unit.
AC power supply cord
(included)
from the “AC IN~” on the unit to a household AC outlet.
•
•
To Next Page
