50
RQT8851

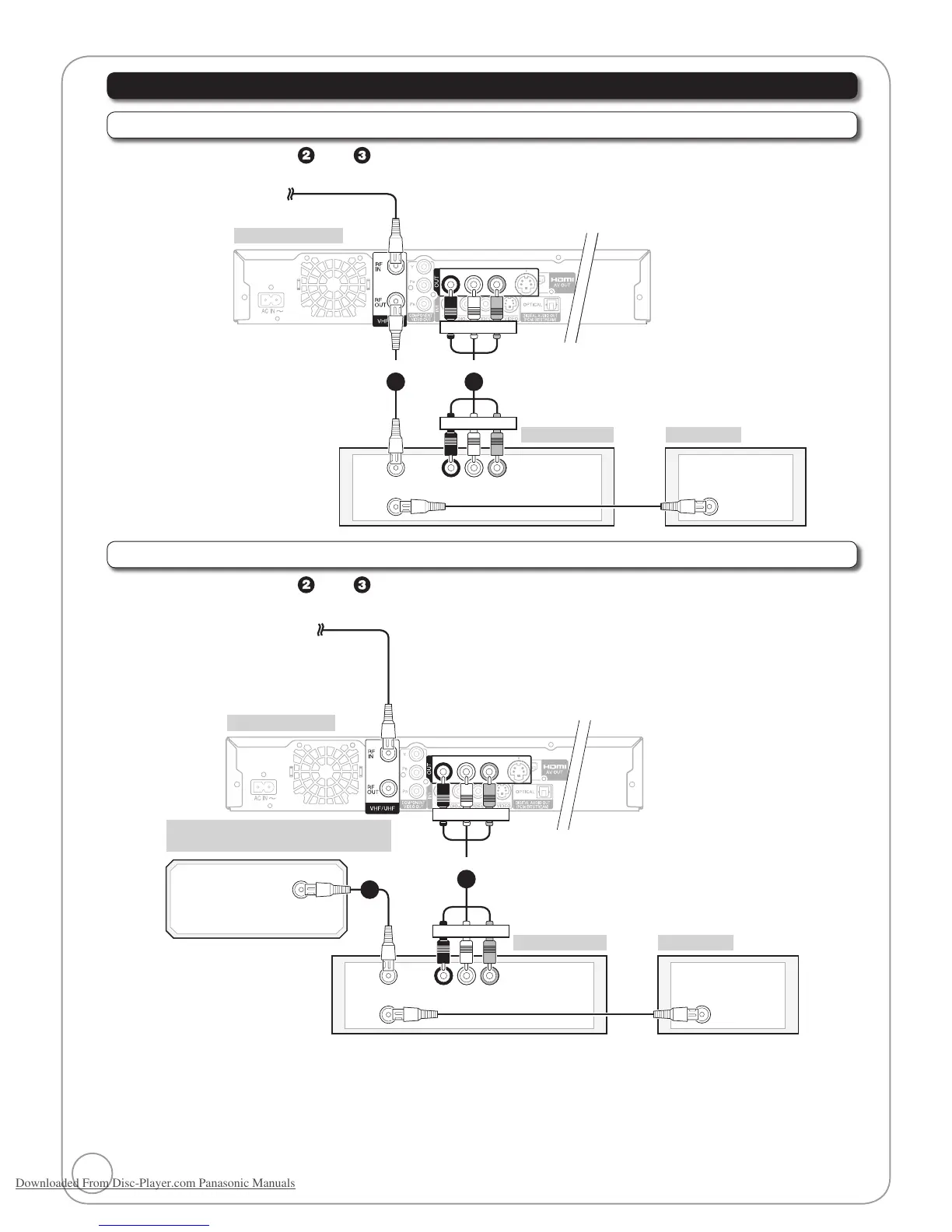

Using an RF Modulator, if your Television does not have Audio/Video Terminals
Connecting to a Television
Connect cables in steps
and (same as those on page 47) as follows.
AUDIO IN
R L
VIDEO
IN
RF IN
RF OUT
VHF/UHF
RF IN
step
3
Red White Yellow
Red White Yellow
Rear of TV
Rear of this unit
RF Modulator
step
2
Cable from the wall
or antenna signal
Connecting to a Television with a Video Cassette Recorder or a Cable Box or Satellite Receiver
Connect cables in steps
and (same as those on page 48 or 49) as follows.
AUDIO IN
R L
VIDEO
IN
RF IN
RF OUT
VHF/UHF
RF IN
step
3
Red White Yellow
Red White Yellow
Rear of TV
Rear of this unit
Rear of Video Cassette Recorder or
Cable Box or Satellite Receiver
RF Modulator
RF OUT
step
2
Cable from the wall or
antenna signal
(Video Cassette
Recorder or Cable
Box Only)
Basic Connection
To Next Page
