Panasonic DMR-ES30V

63

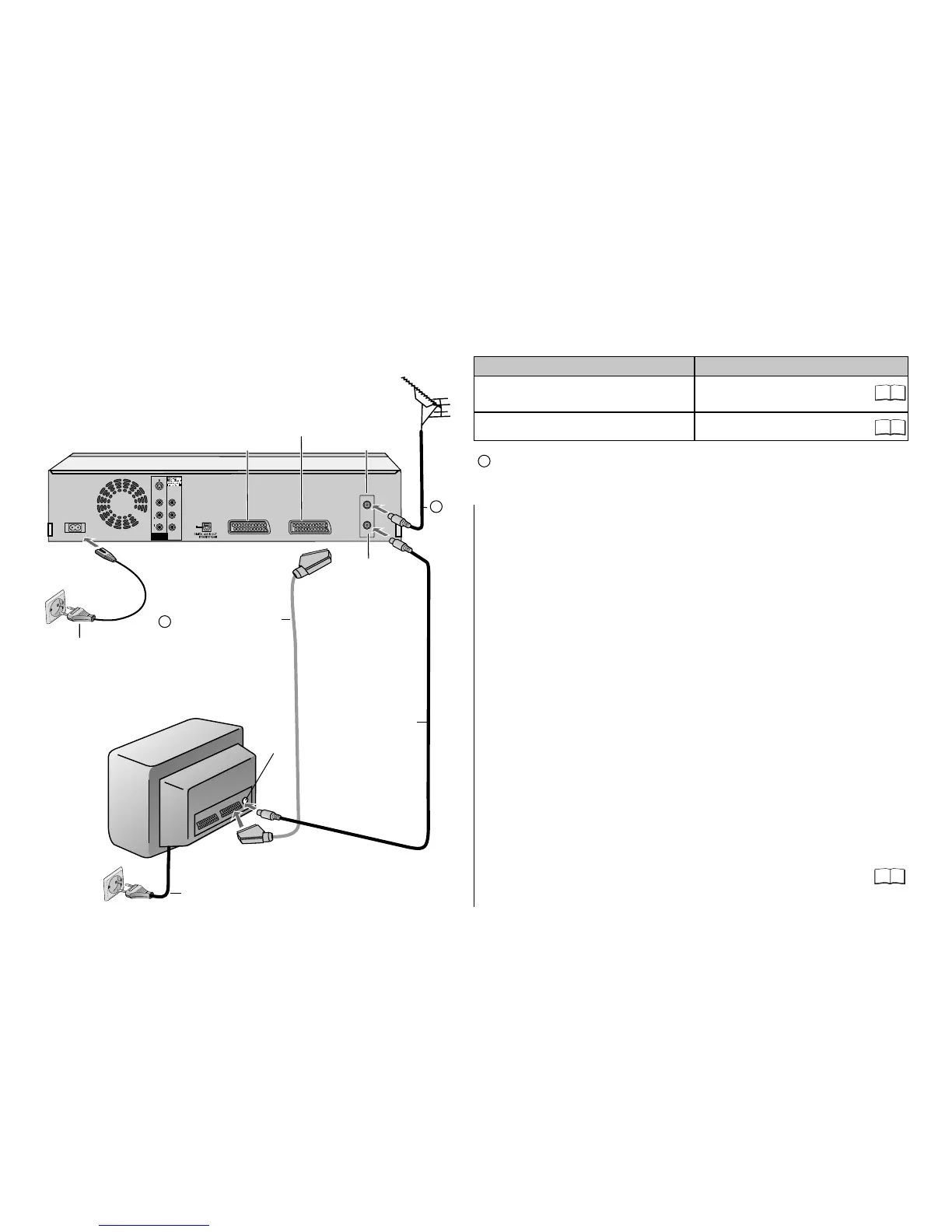

Connecting with a 21-pin Scart cable
RF IN
RF OUT
AC IN~
OPTICAL
VIDEO
AUDIO
S VIDEO
L
R
P
B
P
R
Y
DVD OU T
1
Aerial
RF IN
Aerial input
RF OUT
Aerial output
AC mains lead
AV1 21-pin
Scart socket
RF Coaxial cable
Aerial
input
2
3
TV
4
AC mains lead
S
21-pin Scart cable
S
S
AV2
AC IN~
4
16
16
13
With a 21-pin Scart cable
With Q Link function and
21-pin scart socket
Automatic setup
Download from TV
SetupConnecting the TV
DVD Recorder
Aerial
infeed line
Necessary for TV with Q Link
Follow the steps below.
Disconnect the power to all units.
1 Connect the aerial to the RF IN (aerial input) of the
DVD Recorder.
2 Connect the RF OUT (aerial output) of the DVD Recorder
to the aerial input of the television set.
3 Connect the AV1 socket (21-pin Scart socket) of the
DVD Recorder to the Scart input of the television set.
4 Plug the DVD Recorder and the television set into
the AC mains socket.
If your television supports Q Link or RGB, connect it to the
DVD Recorder with a fully wired 21-pin Sart cable.
SETUP - Connections - [AV1 Output]
= Extra equipment for the connection shown: Aerial infeed line
21-pin Scart cable
