DVD Recorder
External device

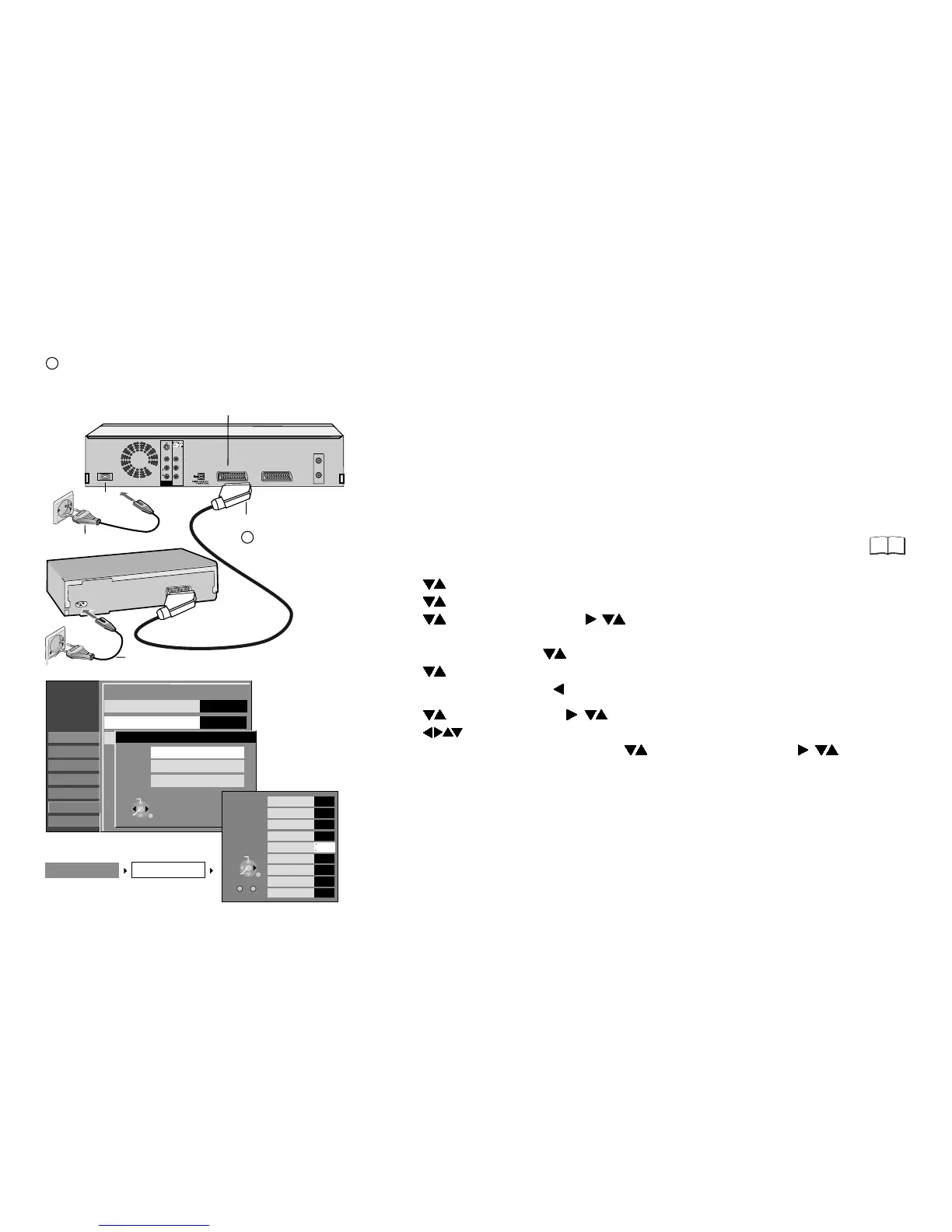

Connecting a Set Top Box, satellite receiver, decoder
You can connect a Set Top Box to receive digital terrestrial signals (DVB-T),
a Satellite receiver (digital / analog) or a decoder for decrypting programmes.
Disconnect the power from all units.
Connect the external device with a 21-pin Scart cable to the AV2 connection
of the DVD Recorder.
1
Connect the DVD Recorder and the external device to the power supply.
2
!
DVD recorder signal: Press 0 + ENTER. DVD appears in the display.
!
Television reception: Press the buttons again. TV appears in the display
External devices
Changing the settings in the SETUP menu when connecting a decoder
!
Press FUNCTIONS in stop mode.
!
Use to select [To Others] and confirm with ENTER.
!
Use to select SETUP and confirm with ENTER.
!
Use to select [Connection], , to select [AV2 Settings] and confirm
with ENTER.
!
In the next screen, use to select [AV2 Connection] and confirm with ENTER.
!
Use to select [Decoder (DVD) or (VHS)] and confirm with ENTER.
!
Press RETURN and use to return to [Connection].
= Extra equipment for the connections shown
!
Use to select [Tuning], , to select [Manual] and confirm with ENTER.
!
Use to select an encrypted station and press ENTER.
!
In the Manual Tuning sub-menu, use to select [Decoder] and ,
to select [On].
!
Confirm the setting with ENTER.
AV-Link function
To switch between television reception and signal from the DVD recorder
