Panasonic DMR-ES30V

16

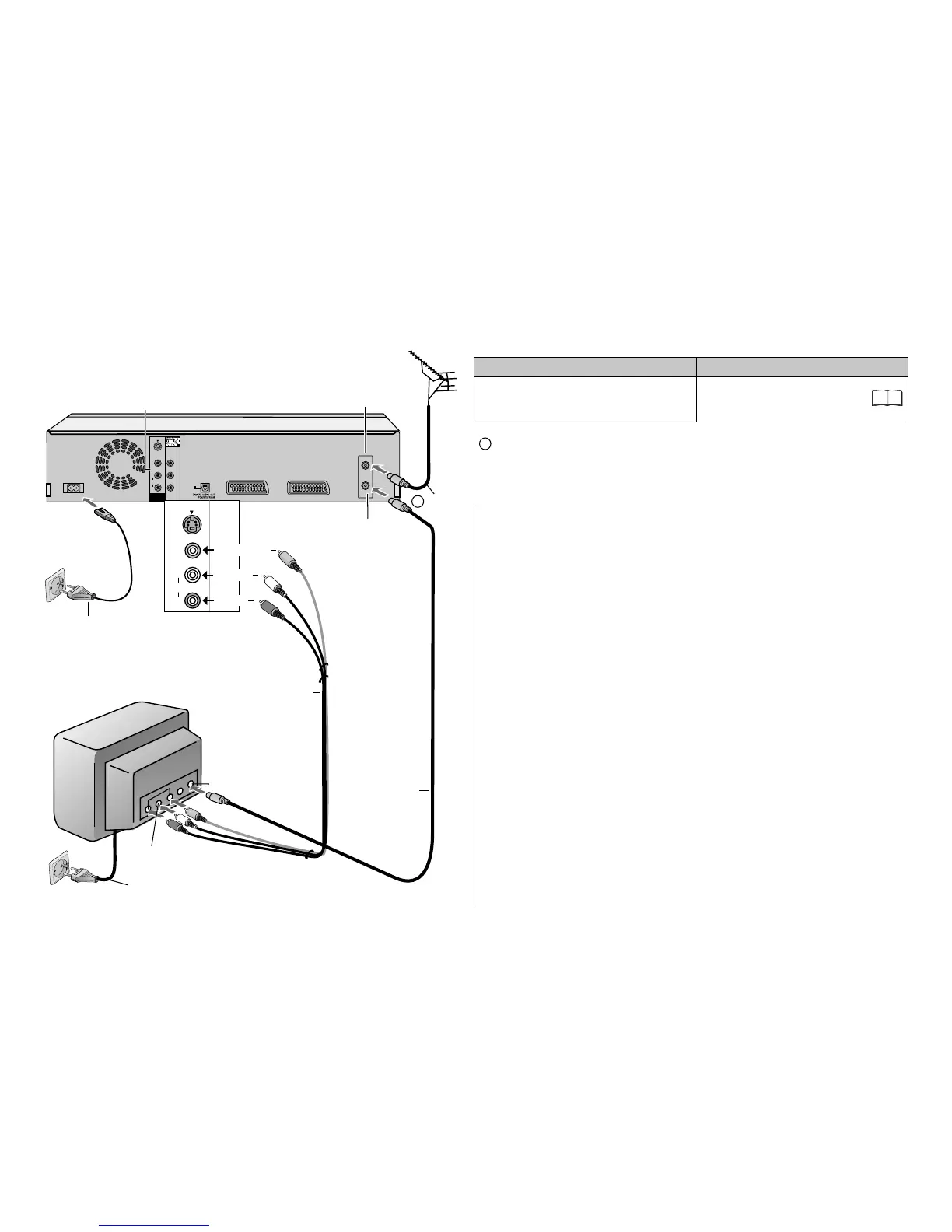

Connecting with Audio/Video cable
RF IN
RF OUT
AC IN~
OPTICAL
VIDEO
AUDIO
S VIDEO
L
R
P
B
P
R
Y
DVD OU T
AC IN~
44
AC mains lead
AUDIO/VIDEO output
4
TV
Aerial input
Audio/Video input
RF Coaxial cable
2
AC mains lead
RF IN
Aerial input
RF OUT
Aerial output
S
1
Aerial
3
VIDEO
AUDIO
S VIDEO
L
R
Audio/Video cable
Yellow (Video)
White (L)
Red (R)
S
14
Aerial
infeed line
DVD Recorder
(DVD only)
Connecting the TV Setup
Automatic setup
With an Audio/Video cable
Follow the steps below.
Disconnect the power to all units.
1 Connect the aerial to the RF IN (aerial input) of the
DVD Recorder.
2 Connect the RF OUT (aerial output) of the DVD Recorder
to the aerial input of the television set.
3 Connect the DVD OUT (AUDIO L/R, VIDEO) of the DVD
Recorder to the input of the television set.
4 Plug the DVD Recorder and the television set into
the AC mains socket.
= Extra equipment for the connection shown: Aerial infeed line
