7.2.3. (VHS) Take out Cassette Tapeman-
ually after removing the mecha-
nism
1. Disconnect the AC plug, and remove the Top Panel, Front
Panel and the Mechanism by referring to "14 Assem-
bling and Disassembling"

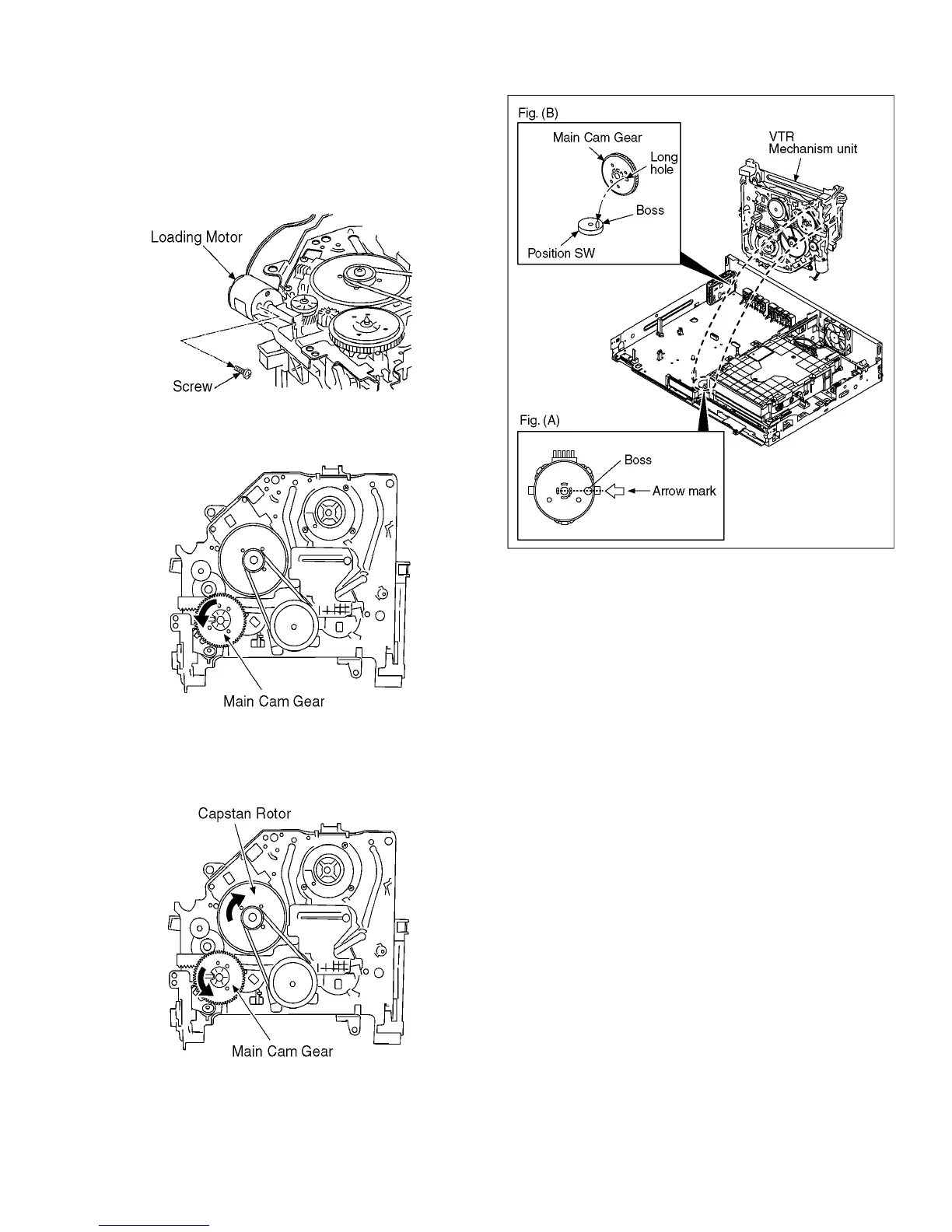

2. Remove the Screw and remove the Loading Motor as
shown below.
3. Rotate the Main Cam Gear counter-clockwise until just
before the unloading will be completed as shown below. .
4. Rotate the Capstan Motor clockwise to remove the slack
tape as shown below.
5. Rotate the Main Cam Gear counter-clockwise again to
remove the cassette-tape as shown below.
6. Attach Loading Motor and tighten the screw.
7. Set the Position Switch to EJECT POSITION certainly
and attach the mechanism to chassis as shown below.
