Panasonic DMR-ES40VP

32

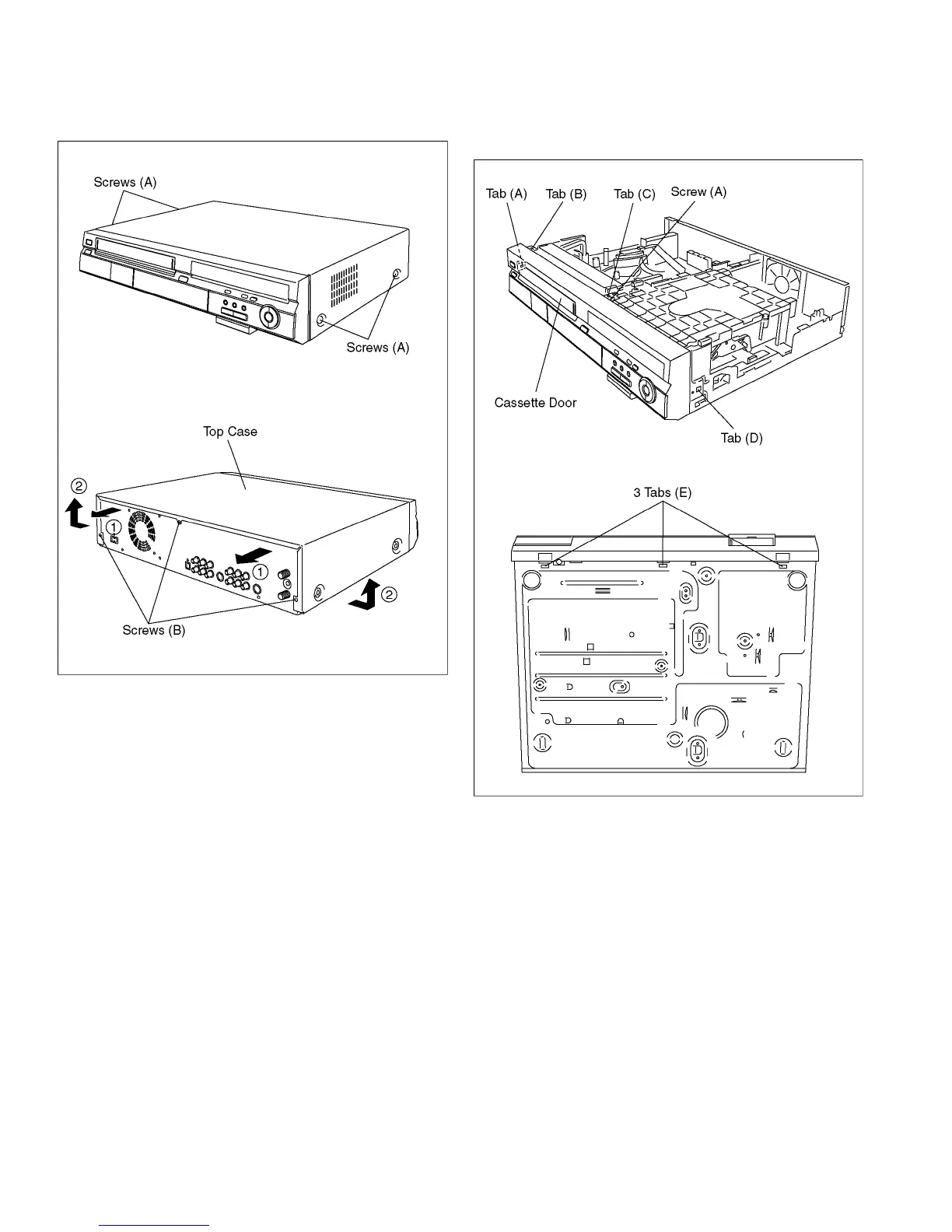

10.4. Top Case
1. Remove the 4 screws (A) and 3 screws (B).
2. Slide Top Case rearward and open the both ends at rear
side of the Top Case a little and lift the Top Case in the
direction of the arrows.
10.5. Front Panel
1. Remove one screw (A).
2. Unlock tab (A) and tab (B) simultaneously.
3. Unlock tab (C) and tab (D) simultaneously.
4. Unlock 3 tabs (E) respectively, and pull out Front Panel
with connector slightly.
