10.11. Digital P.C.B.

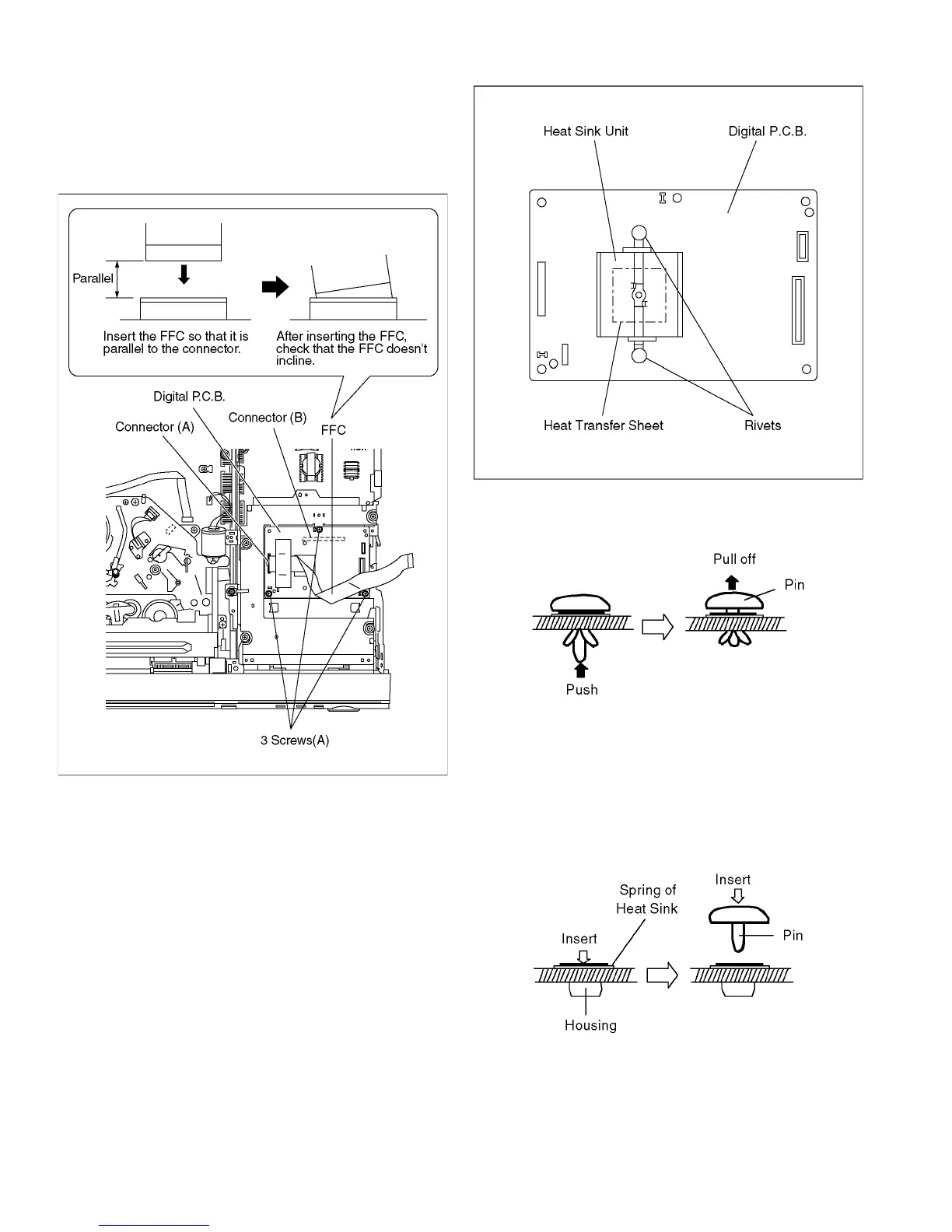

1. Remove 3 Screws (A).
2. Disconnect connector (A) and FFC from Digital P.C.B..
3. Lift up Digital P.C.B. slightly so to disconnect connector
(B) to remove Digital P.C.B..
CAUTION:
When replacing Digital P.C.B., pay attention to inserting
FFC.
10.11.1. Removing and attaching Heat Sink
Unit for IC5001
(Removing)
1. Push Rivets by finger as shown below.
2. Pull off Pin of Rivets.
3. Remove Heat Sink Unit.
4. Remove Heat Transfer Sheet.
(Attaching)
1. Paste Heat Transfer Sheet on to IC5001.
2. Put Heat Sink Unit on to Heat Transfer Sheet.
3. Insert Housing of rivets through Spring of Heat sink Unit
as shown below.
4. Insert Pin of Rivets.
