Panasonic DMR-ES40VP User Manual

S-2

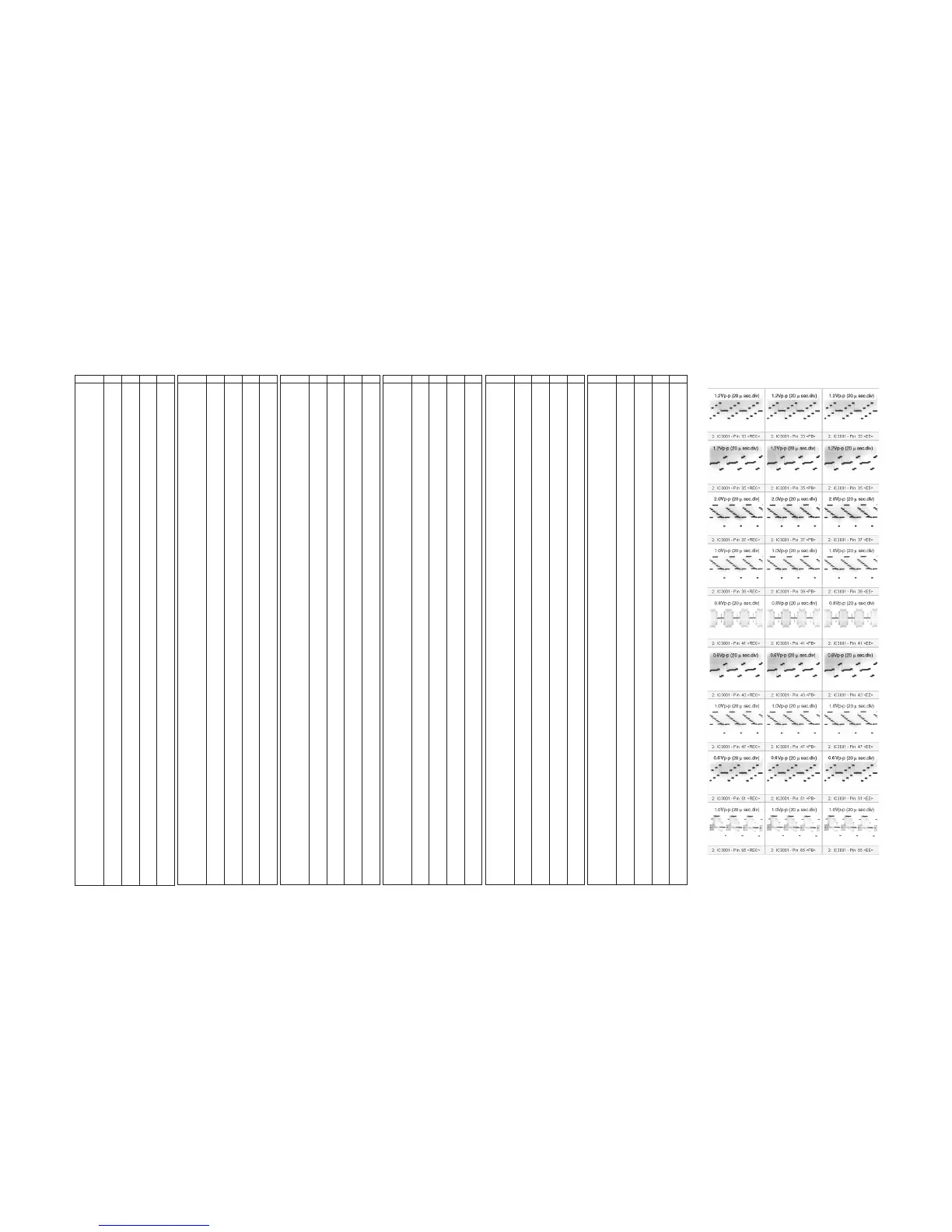

S2. Voltage and Waveform Chart
S2.1. Main P.C.B.
<IC3001>
REF No. PIN No. REC PB EE
IC1511
1 1.2 1.2 1.2
IC1511
2 2.4 2.4 2.4
IC1511
3 0.2 0.1 0.2
IC1511
4 0 0 0
IC1512 1 0 0 0
IC1512 2 1.2 1.2 1.2
IC1512 3 5 5 5
IC1512 4 0 0 0
IC2501 1 12.2 12.2 12.2
IC2501 2 0.1 0.1 0.1
IC2501 3 0 0 0
IC2501 4 0.1 0.1 0.1
IC2501 5 0 0 0
IC2501 6 0 0 0
IC2501 7 16.1 16.2 16.1
IC2501 8 0 0 0
IC2501 9 2.8 2.8 2.8
IC2501 10 1.6 1.6 1.6
IC2501 11 1.6 1.6 1.6
IC2501 12 0.6 0.6 0.6
IC2501 13 1.5 1.5 1.5
IC2501 14 2.4 2.4 2.4
IC2501 15 2.5 2.5 2.5
IC2501 16 2.5 2.5 2.5
IC2501 17 2.5 2.5 2.5
IC2501 18 1.3 1.3 1.3
IC2501 19 5 5 5
IC2501 20 3.8 3.6 3.8
IC2501 21 12.2 12.2 12.2
IC2501 22 3.8 3.6 3.8
IC2501 23 3.8 3.6 3.8
IC2501 24 0 0 0
IC2501 25 3.8 3.6 3.8
IC2501 26 0 0 0
IC2501 27 0 0 0
IC3001 1 0 0 0
IC3001 2 0 0 0
IC3001 3 0 0 0
IC3001 4 5.1 5.1 5.1
IC3001 5 2.1 2 2.1
IC3001 6 2.6 2.5 2.6
IC3001 7 2.8 2.8 2.8
IC3001 8 1.8 1.4 1.8
IC3001 9 1.8 1.3 1.8
IC3001 10 2.3 1.9 2.3
IC3001 11 2.6 3 2.6
IC3001 12 1.8 0.6 1.8
IC3001 13 0 0 0
IC3001 14 2.7 2.3 2.7
IC3001 15 2.8 2.8 2.8
IC3001 16 2 2 2
IC3001 17 2.8 2.8 2.8
IC3001 18 1.9 1.9 1.9
IC3001 19 2.8 2.8 2.8
IC3001 20 0 0 0
IC3001 21 2.8 2.8 2.8
IC3001 22 5 5 5
IC3001 23 2.3 2.3 2.3
IC3001 24 0.5 0.6 0.5
IC3001 25 0 0 0
IC3001 26 3 2.8 3
IC3001 27 0.5 0.6 0.5
IC3001 28 0 0 0
IC3001 29 2.4 2.4 2.4
IC3001 30 2.8 2.9 2.8
REF No. PIN No. REC PB EE
IC3001 31 0.4 0.4 0.4
IC3001 32 2.4 2.5 2.4
IC3001 33 2 2.1 2
IC3001 34 2 2.2 2
IC3001 35 3 3 3
IC3001 36 0 2.3 0
IC3001 37 3 3 3
IC3001 38 2.1 2.2 2.1
IC3001 39 1.4 1.4 1.4
IC3001 40 2.1 2.1 2.1
IC3001 41 2.9 3 2.9
IC3001 42 2 2 2
IC3001 43 2.1 2.1 2.1
IC3001 44 0 0 0
IC3001 45 3.2 3.2 3.2
IC3001 46 3.2 3.2 3.2
IC3001 47 5 5 5
IC3001 48 4.9 5 4.9
IC3001 49 3.2 3.2 3.2
IC3001 50 5 5 5
IC3001 51 2.1 2.1 2.1
IC3001 52 5 5 5
IC3001 53 2.6 2.6 2.6
IC3001 54 0 0 0
IC3001 55 2.1 2.1 2.1
IC3001 56 0 0 0
IC3001 57 2.2 2.2 2.2
IC3001 58 2.3 2.3 2.3
IC3001 59 5 5 5
IC3001 60 5 5 5
IC3001 61 4.1 4.1 4.1
IC3001 62 2.3 2.3 2.3
IC3001 63 2.2 2.2 2.2
IC3001 64 2.5 2.5 2.5
IC3001 65 2.2 2.2 2.2
IC3001 66 2.5 2.5 2.5
IC3001 67 2.2 2.2 2.2
IC3001 68 1.2 1.2 1.2
IC3001 69 1.9 1.9 1.9
IC3001 70 2.7 0.9 2.7
IC3001 71 0.5 0.4 0.5
IC3001 72 5 5 5
IC3001 73 4.1 4.2 4.1
IC3001 74 4 4.1 4
IC3001 75 2.7 2.8 2.7
IC3001 76 2.2 2.2 2.2
IC3001 77 2.8 2.8 2.8
IC3001 78 0 0 0
IC3001 79 0 0 0
IC3001 80 2.5 2.5 2.5
IC3001 81 0.7 0.7 0.7
IC3001 82 0 0 0
IC3001 83 3.4 3.4 3.4
IC3001 84 5 5 5
IC3001 85 2.5 2.3 2.5
IC3001 86 2.3 2.3 2.3
IC3001 87 2.5 2.4 2.5
IC3001 88 0 0 0
IC3001 89 0 2.3 0
IC3001 90 0 2.3 0
IC3001 91 0 2.3 0
IC3001 92 5.1 5.1 5.1
IC3001 93 0.5 0.5 0.5
IC3001 94 2.5 2.5 2.5
IC3001 95 2.5 2.5 2.5
REF No. PIN No. REC PB EE
IC3001 96 2.5 2.5 2.5
IC3001 97 0 0 0
IC3001 98 2.3 2.5 2.3
IC3001 99 0 0 0
IC3001 100 2.6 2.5 2.6
IC3701 1 1.7 1.7 1.7
IC3701 2 0 0 0
IC3701 3 2.7 2.7 2.7
IC3701 4 5 5 5
IC3701 5 1.8 1.7 1.8
IC3701 6 4.8 5 4.8
IC3701 7 1.4 1.4 1.4
IC3701 8 4.7 4.7 4.7
IC3701 9 0.1 0 0.1
IC3701 10 2.7 2.7 2.7
IC3701 11 0 0 0
IC3701 12 1.4 1.4 1.4
IC3701 13 4.7 5 4.7
IC3701 14 1.4 1.4 1.4
IC3701 15 0 0 0
IC3701 16 0 0 0
IC3701 17 2.6 2.7 2.6
IC3701 18 0 0 0
IC3701 19 1.4 1.4 1.4
IC3701 20 4.7 4.9 4.7
IC3701 21 1.4 1.4 1.4
IC3701 22 0 0 0
IC3701 23 0.1 0 0.1
IC3701 24 2.7 2.7 2.7
IC3701 25 5 5 5
IC3701 26 1.8 1.8 1.8
IC3701 27 1.8 1.8 1.8
IC3701 28 2 2 2
IC3701 29 2 2 2
IC3701 30 2.2 2.2 2.2
IC3701 31 0 0 0
IC3701 32 2.2 2.2 2.2
IC3701 33 2.2 2.2 2.2
IC3701 34 2.2 2.2 2.2
IC3701 35 2.2 2.2 2.2
IC3701 36 1.8 1.8 1.8
IC3701 37 1.8 1.8 1.8
IC3701 38 0 0 0
IC3701 39 1.9 1.9 1.9
IC3701 40 5 5 5
IC3701 41 2.8 2.8 2.8
IC3701 42 0 0 0
IC3701 43 2.8 2.8 2.8
IC3701 44 5 5 5
IC3701 45 2.8 2.8 2.8
IC3701 46 2.8 2.8 2.8
IC3701 47 1.9 1.9 1.9
IC3701 48 4.7 4.7 4.7
IC3701 49 2.8 2.8 2.8
IC3701 50 0 0 0
IC3701 51 2.8 2.8 2.8
IC3701 52 5 5 5
IC3701 53 2.8 2.8 2.8
IC3701 54 2.9 2.9 2.9
IC3701 55 1 1 1
IC3701 56 0 0 0
IC3701 57 4.9 4.9 4.9
IC3701 58 4.9 4.8 4.9
IC3701 59 5 5 5
IC3701 60 0 0 0
REF No. PIN No. REC PB EE
IC3701 61 0 0 0
IC3701 62 0.8 0.8 0.8
IC3701 63 0.8 0.8 0.8
IC3701 64 5 5 5
IC3701 65 1.3 1.1 1.3
IC3701 66 0 0 0
IC3701 67 1.8 1.5 1.8
IC3701 68 0 0 0
IC3701 69 2.1 2.1 2.1
IC3701 70 0 0 0
IC3701 71 1.3 1.1 1.3
IC3701 72 5 5 5
IC3701 73 1.3 1.1 1.3
IC3701 74 0 0 0
IC3701 75 2.1 2.1 2.1
IC3701 76 0 0 0
IC3701 77 0 0 0
IC3701 78 5 5 5
IC3701 79 0 0 0
IC3701 80 0 0 0
IC3902 1 4.8 4.8 4.8
IC3902 2 2.2 1.9 2.2
IC3902 3 5.1 5.1 5.1
IC3902 4 2.2 1.9 2.2
IC3902 5 0 0 0
IC3902 6 2 2 2
IC4501 1 2.4 2.4 2.4
IC4501 2 0 0 0
IC4501 3 2.4 2.4 2.4
IC4501 4 0.1 0 0.1
IC4501 5 0 0 0
IC4501 6 2.5 2.5 2.5
IC4501 7 2 2 2
IC4501 8 0 0 0
IC4501 9 0 0 0
IC4501 10 0 0 0
IC4501 11 0 0 0
IC4501 12 2 2 2
IC4501 13 0 0 0
IC4501 14 0 0 0
IC4501 15 0 0 0
IC4501 16 2.5 2.5 2.5
IC4501 17 0.5 0.5 0.5
IC4501 18 2.5 2.5 2.5
IC4501 19 2.5 2.5 2.5
IC4501 20 2 0 2
IC4501 21 1.9 0 1.9
IC4501 22 2 0 2
IC4501 23 0 0 0
IC4501 24 2.1 0.7 2.1
IC4501 25 5 5 5
IC4501 26 2.1 0 2.1
IC4501 27 0 2.4 0
IC4501 28 4.3 4.3 4.3
IC4501 29 3.9 1.8 3.9
IC4501 30 3.7 1.8 3.7
IC4501 31 1.1 1.8 1.1
IC4501 32 2.5 2.5 2.5
IC4501 33 2.5 2.5 2.5
IC4501 34 0.5 0.5 0.5
IC4501 35 2.5 2.5 2.5
IC4501 36 0 0 0
IC4501 37 2 2 2
IC4501 38 0 0 0
IC4501 39 0 0 0
REF No. PIN No. REC PB EE
IC4501 40 5 5 5
IC4501 41 0 0 0
IC4501 42 4.1 4.1 4.1
IC4501 43 4 4 4
IC4501 44 3.3 3.3 3.3
IC4501 45 1.6 1.6 1.6
IC4501 46 4.9 4.2 4.9
IC4501 47 2.5 2.5 2.5
IC4501 48 2.5 2.5 2.5
IC4501 49 1 1 1
IC4501 50 0.9 0.9 0.9
IC4501 51 6 6 6
IC4501 52 6 6 6
IC4501 53 6 6 6
IC4501 54 0 0 0
IC4501 55 0 0 0
IC4501 56 0 0 0
IC4501 57 6.1 6.1 6.1
IC4501 58 12.2 12.2 12.2
IC4501 59 6.1 6.1 6.1
IC4501 60 0 0 0
IC4501 61 2.5 2.5 2.5
IC4501 62 2.4 2.4 2.4
IC4501 63 0 0 0
IC4501 64 0 0 0
IC4801 1 6.1 6.1 6.1
IC4801 2 6.1 6.1 6.1
IC4801 3 6.1 6.1 6.1
IC4801 4 6.1 6.1 6.1
IC4801 5 6.1 6.1 6.1
IC4801 6 0 0 0
IC4801 7 0 0 0
IC4801 8 0 0 0
IC4801 9 0 0 0
IC4801 10 0 0 0
IC4801 11 6.1 6.1 6.1
IC4801 12 6.1 6.1 6.1
IC4801 13 6.1 6.1 6.1
IC4801 14 6.1 6.1 6.1
IC4801 15 6.1 6.1 6.1
IC4801 16 12.2 12.2 12.2
IC4802 1 6.1 6.1 6.1
IC4802 2 6.1 6.1 6.1
IC4802 3 6.1 6.1 6.1
IC4802 4 0 0 0
IC4802 5 6.1 6.1 6.1
IC4802 6 6.1 6.1 6.1
IC4802 7 6.1 6.1 6.1
IC4802 8 12.2 12.2 12.2
IC4803 1 4.6 4.6 4.6
IC4803 2 0 0 0
IC4803 3 1.2 1.2 1.2
IC4803 4 8.9 8.9 8.9
IC4803 5 12.4 12.4 12.4
IC4804 1 - - -
IC4804 2 4.4 4.4 4.4
IC4804 3 4.4 4.4 4.4
IC4804 4 - - -
IC4804 5 - - -
IC4804 6 - - -
IC4804 7 - - -
IC4804 8 3.3 3.3 3.3
IC4804 9 4.4 4.4 4.4
IC4804 10 4.4 4.4 4.4
IC4804 11 4.4 4.4 4.4
REF No. PIN No. REC PB EE
IC4804 12 4.4 4.4 4.4
IC4804 13 4.4 4.4 4.4
IC4804 14 4.4 4.4 4.4
IC4804 15 0 0 0
IC4804 16 4.4 4.4 4.4
IC4804 17 - - -
IC4804 18 4.4 4.4 4.4
IC4804 19 - - -
IC4804 20 4.9 4.9 4.9
IC4804 21 4.9 4.9 4.9
IC4804 22 0 0 0
IC4804 23 4.4 4.4 4.4
IC4804 24 4.4 4.4 4.4
IC4804 25 4.4 4.4 4.4
IC4804 26 4.4 4.4 4.4
IC4804 27 4.4 4.4 4.4
IC4804 28 4.4 4.4 4.4
IC4804 29 4.4 4.4 4.4
IC4804 30 8.9 8.9 8.9
IC4804 31 4.4 4.4 4.4
IC4804 32 4.4 4.4 4.4
IC6001 1 4.8 4.8 4.8
IC6001 2 0 0 0
IC6001 3 0 0 0
IC6001 4 4.7 4.7 4.7
IC6001 5 4.9 4.9 4.8
IC6001 6 4.9 4.9 4.9
IC6001 7 0.7 0.7 0.7
IC6001 8 0.7 0.7 0.7
IC6001 9 3.2 3.2 3.2
IC6001 10 0 0 0
IC6001 11 0 0 0
IC6001 12 0 0 4.8
IC6001 13 0 0 0
IC6001 14 4.8 4.8 4.9
IC6001 15 3.7 3.7 3.7
IC6001 16 0 0 0
IC6001 17 0 0 0
IC6001 18 0 0 0
IC6001 19 0 0 0
IC6001 20 0 0 0
IC6001 21 4.8 4.9 4.9
IC6001 22 0 0 0
IC6001 23 4.4 4.4 4.3
IC6001 24 2 2 2
IC6001 25 0 0 0
IC6001 26 0 0 0
IC6001 27 4.8 4.8 4.8
IC6001 28 4.8 4.8 4.8
IC6001 29 4.8 4.8 4.8
IC6001 30 4.7 4.7 4.8
IC6001 31 4.8 4.8 4.8
IC6001 32 4.8 4.8 4.8
IC6001 33 0 0 0
IC6001 34 4.9 4.9 4.9
IC6001 35 0 0 0
IC6001 36 0 0 0
IC6001 37 4.9 4.9 4.9
IC6001 38 2.2 2.2 2.2
IC6001 39 2.2 2.2 2.2
IC6001 40 0 0 0
IC6001 41 0 0 0
IC6001 42 0 0 0
IC6001 43 4.9 4.9 4.9
IC6001 44 0 0 0
