8.2. (VHS) Self-Diagnosis and Special Mode Setting
8.2.1. (VHS) Self-Diagnosis Functions
This model has a self-diagnosis and display function. If the VHS section detects trouble during installation or during use, one of the
following Error Codes will automatically appear in the display on VHS side. Error Codes are displayed in the form of a single English
letter followed by two numbers, as for example "H01".
Note:
1. The indication "U" is displayed on the FIP while power remains on.
2. The indication "H" or "F" is displayed on the FIP, and the power is automatically turned off. When the power is turned on again,
the Error indication code will disappear and the unit will return to normal display mode (either clock or counter is displayed).
3. This Error indication code will be stored in the microprocessor even after the AC plug being disconnected.
The two-digit number portion of the stored Error indication code can be re-displayed in "second" display portion (the last 2 dig-
its of the FIP) by placing the unit is Service Mode Number 3 When turning on Service Data Display as for example "01" or "02"
etc. If a second error occurs, the most recent error will be displayed and stored until 3 self-diagnosis histories in maximum.
4. To erase the stored Error Code data, Press FF and EJECT buttons on VCR simultaneously for over 5 seconds in Service
Mode 3.

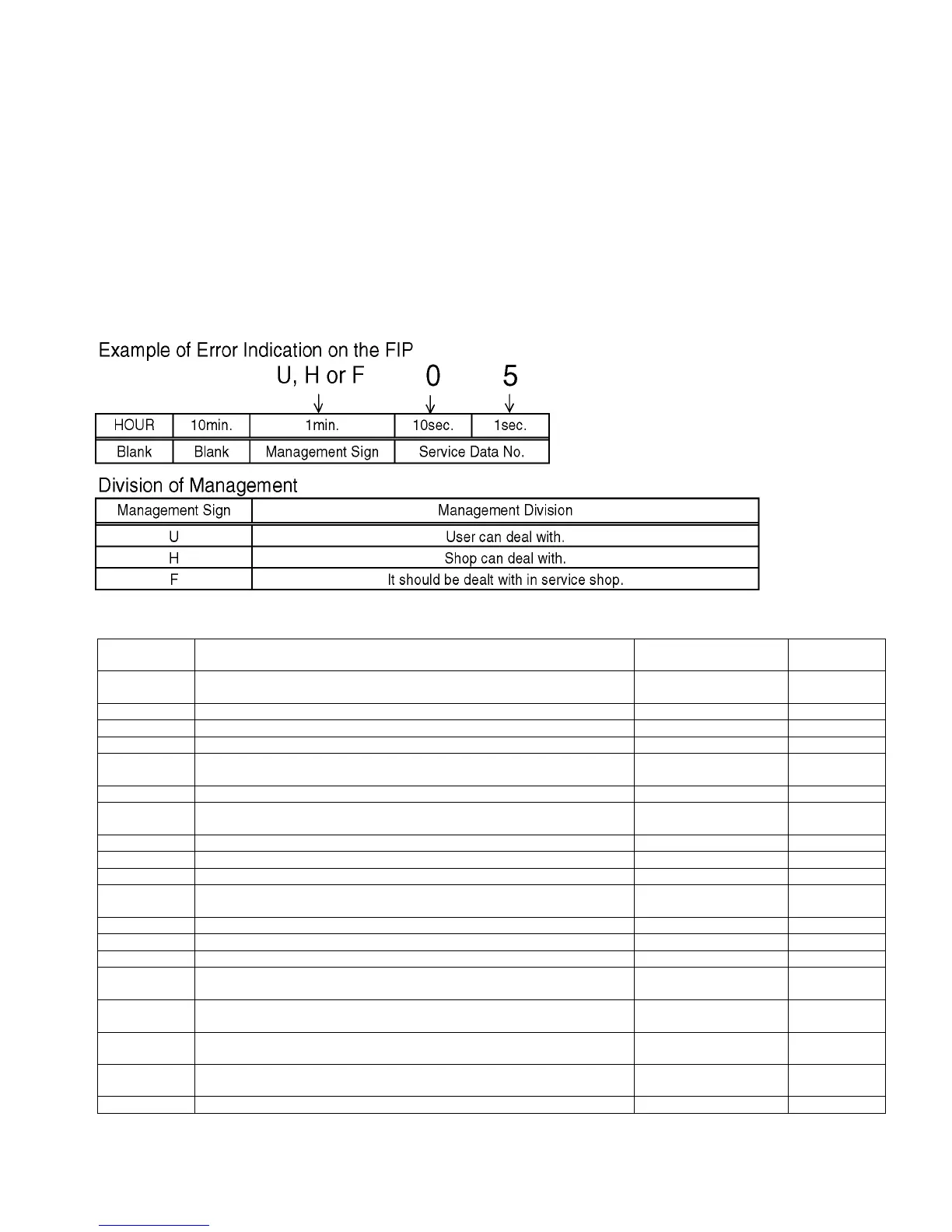

Error Number at a glance
Memory No.
(Error No.)
Reason Automatic display Memory
H01 The cylinder could not be started.
(Error of the cylinder or the cylinder driver.)
Yes Yes
H02 The CAP FG could not be detected. Yes Yes
F03 Mechanism lock during without the unloading and the cassette-up. Yes Yes
F04 Mechanism lock during unloading Yes Yes
F05 S-reel pulse cannot be detected when a cassette tape is inserted.
(Error of the S-reel system or the Capstan system.)
No Yes
F06 Mechanism lock during the Cassette-up. Yes Yes
F09 Communication Error between VHS Microprocessor (IC6001) and Timer Micro-
processor (IC7501)
Yes Yes
H07 The recording circuit can not be operated in REC mode. Yes Yes
H08 The recording circuit is operated in except for REC mode. Yes Yes
U11 Cylinder clogs during the PLAY mode. Yes Yes
F15 S-reel pulse cannot be detected when a cassette tape is inserted.
(Error of the S-reel system or the Capstan system.)
No Yes
H16 Detection of the Cylinder lock during the constant rotation No Yes
H17 Detection of S-reel lock during the constant tape running Yes Yes
H18 Detection of T-reel lock during the constant tape running Yes Yes
F20 NG1 in the PG Shifter Automatic Adjustment
(The cylinder rotation is unstable during the automatic adjustment.)
Yes Yes
F21 NG2 in the PG Shifter Automatic Adjustment
(The vertical sync signal is lacked while over 5 seconds on the alignment tape.)
Yes Yes
F22 NG3 in the PG Shifter Automatic Adjustment
(The installing position of Heads to the cylinder is our of specification.)
Yes Yes
F23 NG4 in the PG Shifter Automatic Adjustment
(The servo is not locked to the cylinder for more than 10 sec.)
Yes Yes
H80 An exceptional ejection depends on a Error No Yes
