8.2.2. (VHS) Special Modes Setting
8.2.3. (VHS) Service Modes
<Service Mode Setting>
Set OPERATION SELECT to VHS.
When power is OFF, press [FF] and [EJECT] keys simulta- neously for 3 seconds to into Service Mode.
In Service Mode, press [FF] and [EJECT] keys simultaneously to add Service Number.

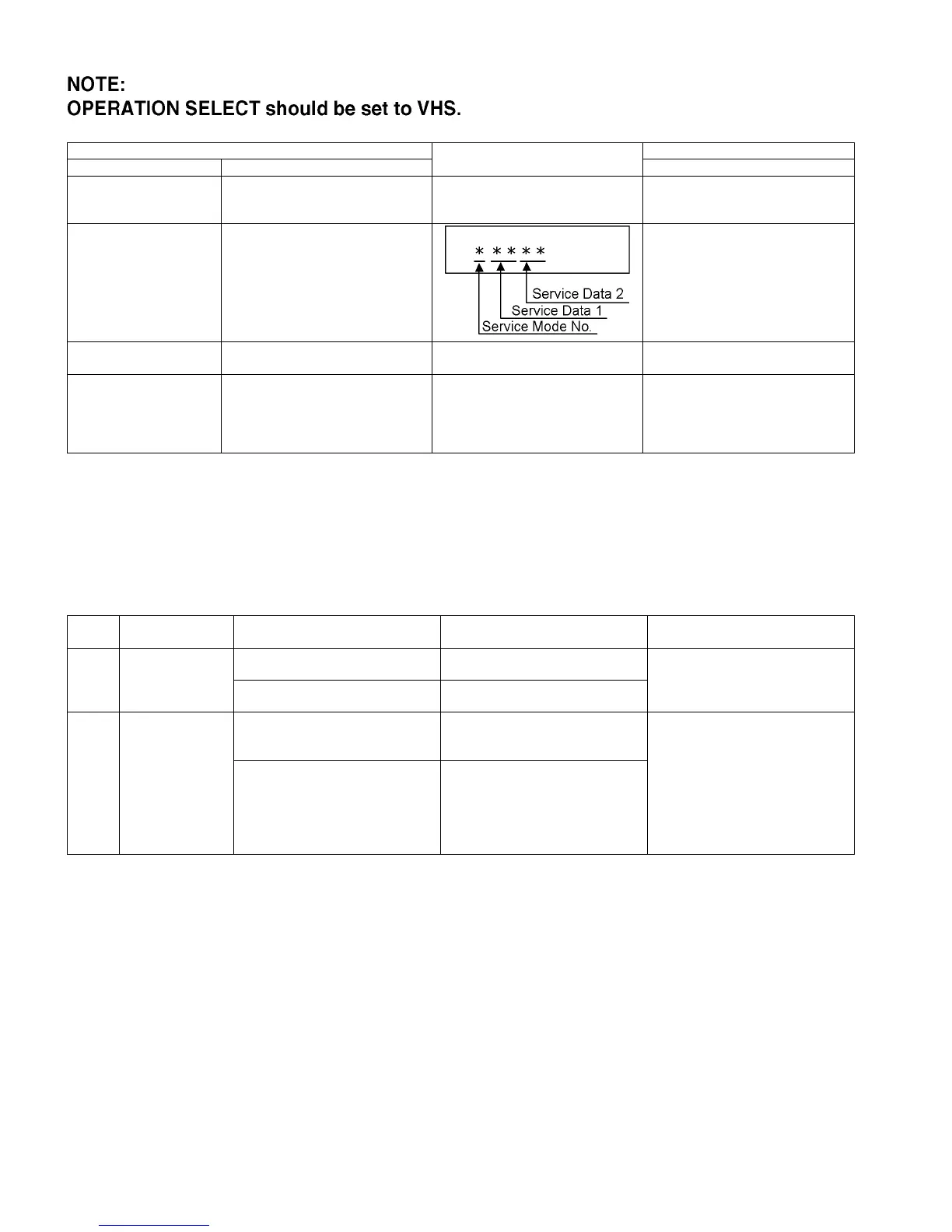

8.2.3.1. (VHS) Service Mode and Service Data at a glance
Item FL display Key operation
Mode name Description Front Key
Tracking Center Tape Tracking is adjusted to center
FIX position.
No display. During PLAYBACK, press [(VHS) CH
UP] and [(VHS) CH DOWN] keys
simultaneously.
VHS Service Mode In order to make service easy, a part
of inside information of a micropro-
cessor is displayed on FIP.
*Details are described in "8.2.3.
(VHS) Service Mode".
Press [FF], and [EJECT] keys simul-
taneously for 3 seconds when power
is off.
Releasing Timer Program Releasing Continuation Timer Pro-
gram
No display. While in Timer REC mode, press
[(VHS) STOP] key for 3 seconds.
Eject Ejecting Cassette Tape No display. While in other than Timer REC mode,
press [(VHS) STOP] key for 3 sec-
onds or press [STOP] key of the
Remote Controller for 3 seconds in
VHS mode.
Service
Number
Contents Contents of Indication on minute Contents of Indication on second Remarks
0 Indication for the
inner data of
IC6001
VHS mode
(Real time)
Process number
(Real time)
VCR mode
(OPM)
Management number of the process-
ing during mechanism shifting
1 Indication for the
inner data of
IC6001
Starting / finishing edges detecting
data
(Real time)
Data of receiving key (Real time)
00: Both starting / finishing edges
have not been
01: Starting edge is detecting now
02: Finishing edge is detecting now
03: Both starting / finishing edges
are detecting now
Indicate the receiving code when the
key of VCR or remote controller
being operated.
