Panasonic DMR-ES40VP User Manual

S-4

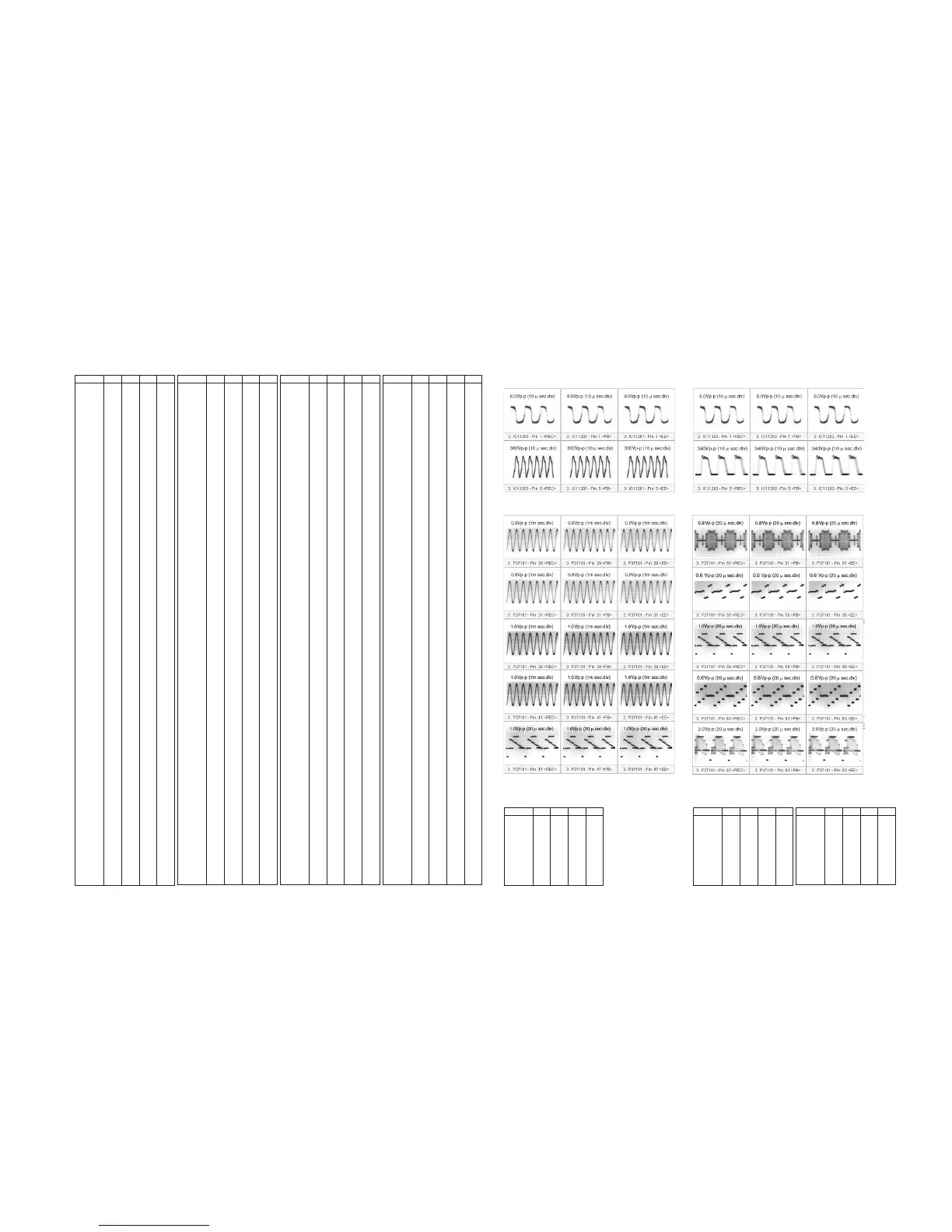

S2.2. Power and Digital I/F P.C.B.
<P37101>
REF No. PIN No. REC PB EE
IC11201
1 2.7 2.7 2.7
IC11201
2 1.5 1.5 1.5
IC11201
3 0 0 0
IC11201
4 11.8 11.8 11.8
IC11201
5 -438 -438 -438
IC11202
1 2.2 2.2 2.2
IC11202
2 2.2 2.2 2.2
IC11202
3 0 0 0
IC11202
4 13.2 13.2 13.2
IC11202
5 -303 -303 -303
IC11301
1 3.7 3.7 3.7
IC11301
2 2.4 2.4 2.4
IC11301
3 0 0 0
IC11302
1 4.4 4.4 4.4
IC11302
2 2.4 2.4 2.4
IC11302
3 0 0 0
IC11401
1 0 0 0
IC11401
2 - - -
IC11401
3 11.9 11.9 12
IC11401
4 11.9 11.9 12
IC11401
5 14 14 14.1
IC11501
1 12.4 12.4 12.4
IC11501
2 4.4 4.4 4.4
IC11501
3 1.2 1.2 1.2
IC11501
4 1.1 1.1 1.1
IC11501
5 0.8 0.8 0.8
IC11501
6 0 0 0
IC11501
7 10.4 10.4 10.4
IC11501
8 12.4 12.4 12.4
IC31002 1 5.9 5.9 5.9
IC31002 2 0 0 0
IC31002 3 4.1 4.1 4.1
IC31002 4 5.9 5.9 5.9
IC31002 5 5 5 5
IC31003 1 3.3 3.3 3.3
IC31003 2 - - -
IC31003 3 1.3 1.3 1.3
IC31003 4 0 0 0
IC31003 5 2.3 2.3 2.3
IC31003 6 - - -
IC31003 7 - - -
IC31003 8 3.8 3.8 3.8
IC31004 1 3.3 3.3 3.3
IC31004 2 - - -
IC31004 3 1.3 1.3 1.3
IC31004 4 0 0 0
IC31004 5 4.7 4.7 4.7
IC31004 6 - - -
IC31004 7 - - -
IC31004 8 3.8 3.8 3.8
IC37001 1 5.8 5.8 5.8
IC37001 2 1.8 1.8 1.8
IC37001 3 1.8 1.8 1.8
IC37001 4 0 0 0
IC37001 5 1.8 1.8 1.8
IC37001 6 1.8 1.8 1.8
IC37001 7 1.8 1.8 1.8
IC37001 8 12.4 12.4 12.4
IC45001 1 1.2 1.2 1.2
IC45001 2 0 0 0
IC45001 3 4.7 4.7 4.7
IC45001 4 5.9 5.9 5.9
IC45001 5 5 5 5
IC45002 1 10.5 10.5 10.5
IC45002 2 5 5 5
REF No. PIN No. REC PB EE
IC45002 3 5 5 5
IC45002 4 0 0 0
IC45002 5 1.4 1.8 1.4
IC45002 6 1 1.5 1
IC45002 7 12.1 12.3 12.1
IC45002 8 12.4 12.4 12.4
IC45003 1 3.7 3.7 3.7
IC45003 2 2.4 2.4 2.4
IC45003 3 2.4 2.4 2.4
IC45003 4 0 0 0
IC45003 5 2.4 2.4 2.4
IC45003 6 2.4 2.4 2.4
IC45003 7 3.8 3.8 3.8
IC45003 8 10.5 10.5 10.5
P37101 1 4.9 4.9 4.9
P37101 2 4.9 4.9 4.9
P37101 3 3.2 3.2 3.2
P37101 4 3.2 3.2 3.2
P37101 5 3.2 3.2 3.2
P37101 6 5 5 5
P37101 7 0 0 0
P37101 8 5 5 5
P37101 9 0 0 0
P37101 10 3.1 3.1 3.1
P37101 11 0 0 0
P37101 12 0 0 5
P37101 13 0 0 0
P37101 14 5 5 5
P37101 15 2.3 2.3 2.3
P37101 16 0 0 0
P37101 17 5 5 5
P37101 18 0 0 0
P37101 19 0 0 0
P37101 20 4.7 4.7 4.7
P37101 21 0 0 0
P37101 22 0 0 0
P37101 23 0 0 0
P37101 24 0 0 0
P37101 25 0 0 0
P37101 26 0 0 0
P37101 27 0 0 0
P37101 28 0 0 0
P37101 29 2.5 2.5 2.5
P37101 30 0 0 0
P37101 31 2.5 2.5 2.5
P37101 32 0 0 0
P37101 33 0 0 0
P37101 34 0 0 0
P37101 35 0 0 0
P37101 36 1.4 1.4 1.4
P37101 37 0 0 0
P37101 38 3.3 3.3 3.3
P37101 39 2.4 2.4 2.4
P37101 40 0 0 0
P37101 41 2.4 2.4 2.4
P37101 42 3.3 3.3 3.3
P37101 43 0 0 0
P37101 44 0 0 0
P37101 45 0 0 0
P37101 46 0 0 0
P37101 47 0.5 0.5 0.5
P37101 48 0 0 0
P37101 49 0 0 0
P37101 50 0 0 0
P37101 51 0.6 0.6 0.6
REF No. PIN No. REC PB EE
P37101 52 5 5 5
P37101 53 0 0 0
P37101 54 0 0 0
P37101 55 0.7 0.7 0.7
P37101 56 3.2 3.2 3.2
P37101 57 0 0 0
P37101 58 3.1 3.1 3.1
P37101 59 0.5 0.5 0.5
P37101 60 0 0 0
P37101 61 0 0 0
P37101 62 0 0 0
P37101 63 0.7 0.7 0.7
P37101 64 0 0 0
P37101 65 0 0 0
P37101 66 0 0 0
P37101 67 0 0 0
P37101 68 3.3 3.3 3.3
P37101 69 0 0 0
P37101 70 3.3 3.3 3.3
P37101 71 0 0 0
P37101 72 3.3 3.3 3.3
P37101 73 0 0 0
P37101 74 3.3 3.3 3.3
P37101 75 0 0 0
P37101 76 0 0 0
P37101 77 0 0 0
P37101 78 5 5 5
P37101 79 0 0 0
P37101 80 0 0 0
P37101 81 0 0 0
P37101 82 1.8 1.8 1.8
P37101 83 3.5 3.5 3.5
P37101 84 1.8 1.8 1.8
P37101 85 0 0 0
P37101 86 1.8 1.8 1.8
P37101 87 0.7 0.7 0.7
P37101 88 1.8 1.8 1.8
Q11301
1 4.7 4.7 4.7
Q11301
2 3.7 3.7 3.7
Q11301
3 0 0 0
Q11301
4 1.5 1.5 1.5
Q11302
1 5.4 5.4 5.4
Q11302
2 4.4 4.4 4.4
Q11302
3 0 0 0
Q11302
4 2.2 2.2 2.2
Q11403
E 0 0 0
Q11403
C 3.7 3.7 3.7
Q11403
B 0 0 0
Q11501
1 1.1 1.1 1.1
Q11501
2 1.1 1.1 1.1
Q11501
3 10.7 10.7 10.7
Q11501
4 12.4 12.4 12.4
Q11501
5 1.1 1.1 1.1
Q11501
6 1.1 1.1 1.1
Q37001 E 5.1 5.1 5.1
Q37001 C 12.4 12.4 12.4
Q37001 B 5.7 5.7 5.7
Q37002 E 1.5 1.5 1.5
Q37002 C 5 5 5
Q37002 B 2.1 2.1 2.1
Q37003 E 1.9 1.7 1.9
Q37003 C 0 0 0
Q37003 B 1.3 1.1 1.3
QR11402 E 0 0 0
QR11402 C 0 0 0
REF No. PIN No. REC PB EE
QR11402 B 4.8 4.8 4.8
QR11501 E 0 0 0
QR11501 C 4.4 4.4 4.4
QR11501 B 0 0 0
QR11502 E 0 0 0
QR11502 C 0 0 0
QR11502 B 4.7 4.7 4.7
QR45006 E 0 0 0
QR45006 C 0 0 0
QR45006 B 4.8 4.8 4.8
QR45007 E 0 0 0
QR45007 C 5.8 5.8 5.8
QR45007 B 0 0 0
QR45008 E 0 0 0
QR45008 C 5.8 5.8 5.8
QR45008 B 0 0 0
QR45009 E 0 0 0
QR45009 C 0 0 0
QR45009 B 2.3 2.6 2.3
<IC11201> <IC11202>
REF No. PIN No. REC PB EE
IC7801 1 4.9 4.9 4.9
IC7801 2 0 0 0
IC7801 3 4.9 4.9 4.9
S2.3. Front Jack P.C.B. S2.4. FL Drive P.C.B.
REF No. PIN No. REC PB EE
QR27501 E 0 0 0
QR27501 C 3.9 3.9 3.9
QR27501 B 0 0 0
QR27503 E 0 0 0
QR27503 C 0 0 0
QR27503 B 4.8 4.8 4.8
QR27505 E 0 0 0
QR27505 C 3.6 3.6 3.6
QR27505 B 0 0 0
REF No. PIN No. REC PB EE
QR27501 E 0 0 0
QR27501 C 3.9 3.9 3.9
QR27501 B 0 0 0
QR27503 E 0 0 0
QR27503 C 0 0 0
QR27503 B 4.8 4.8 4.8
QR27505 E 0 0 0
QR27505 C 3.6 3.6 3.6
QR27505 B 0 0 0
